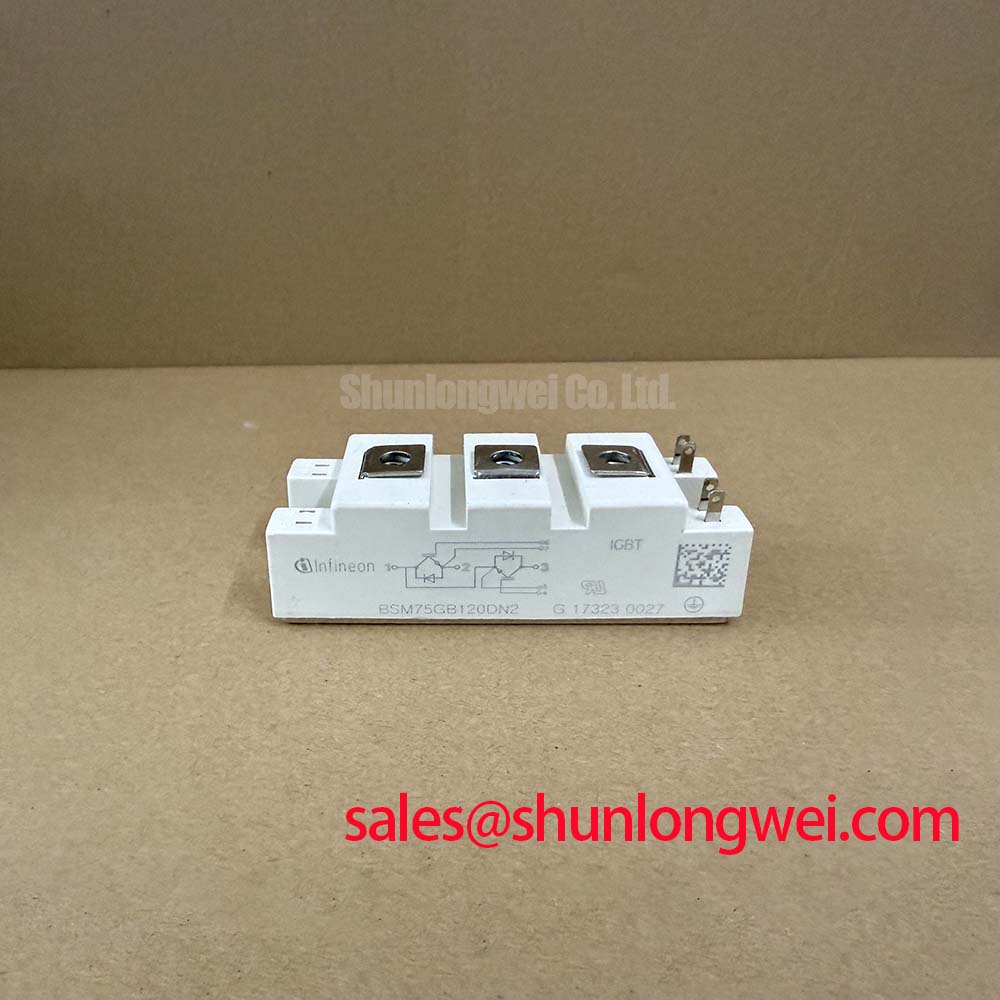

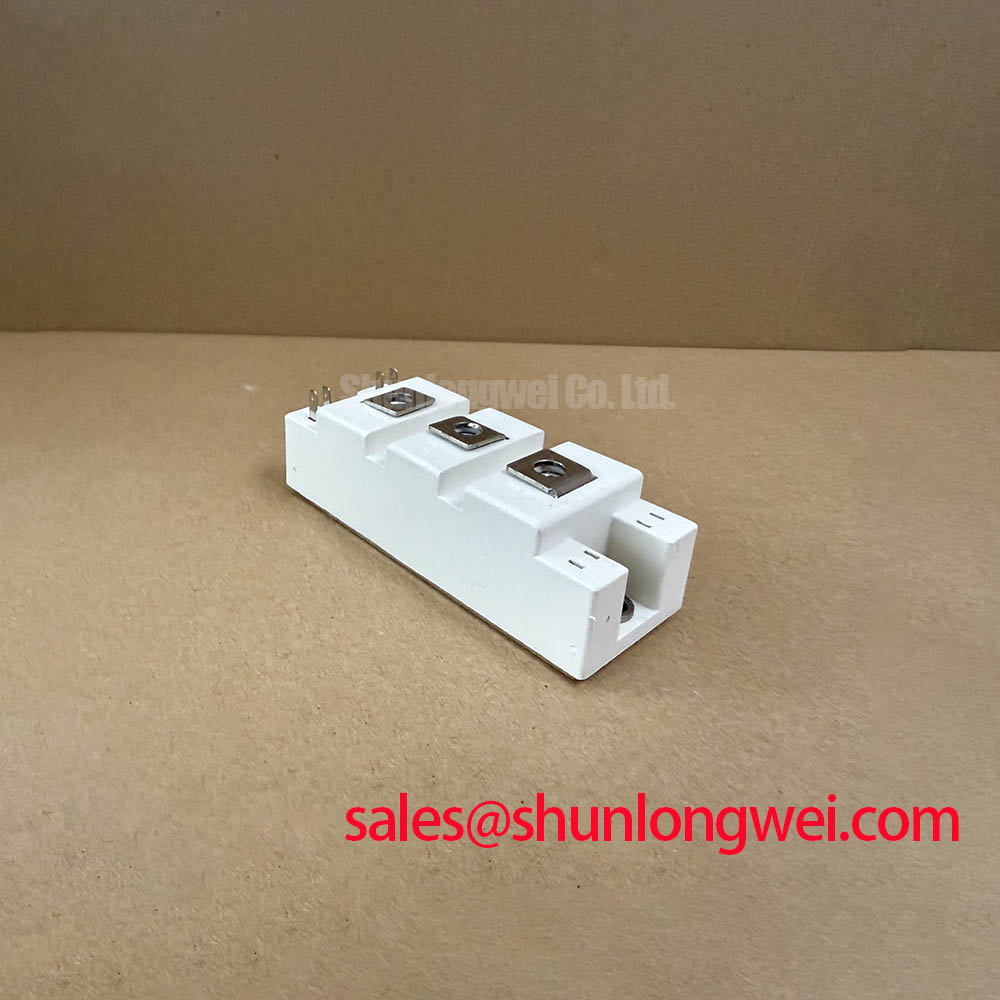

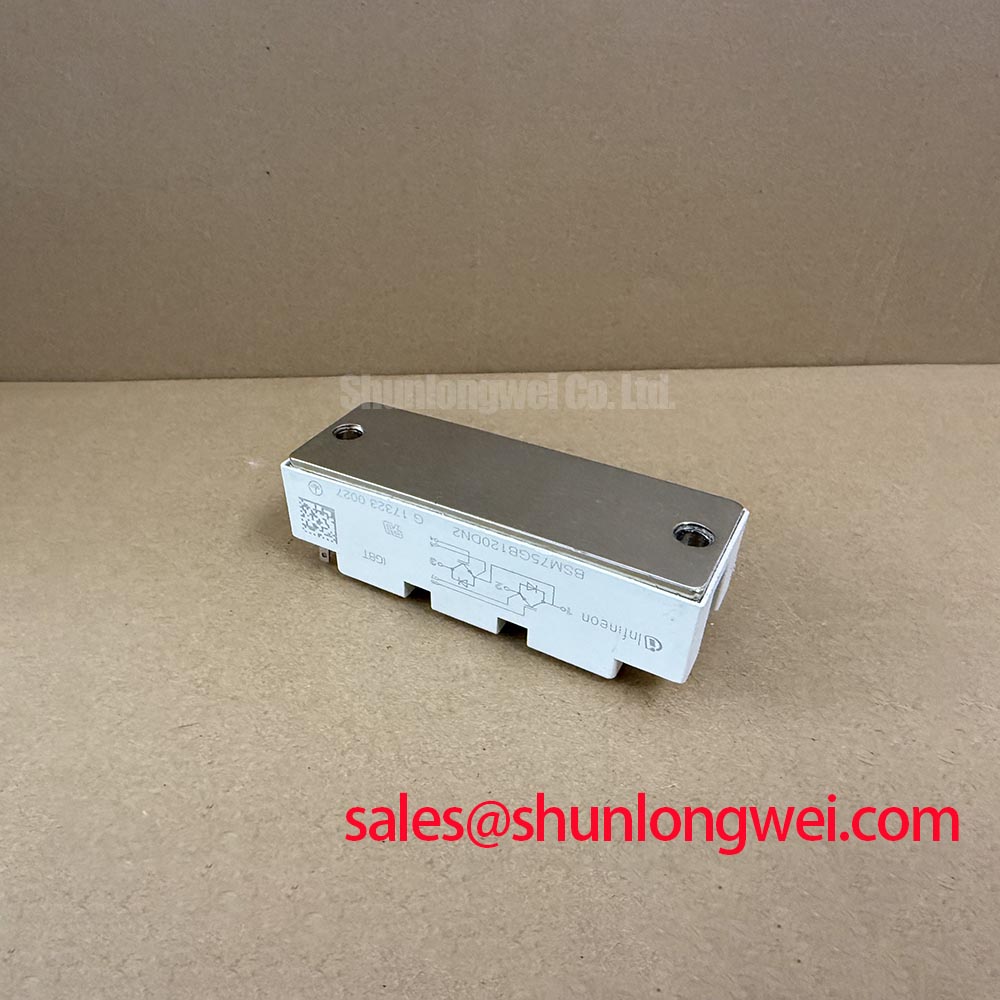

High-Performance Switching with the BSM75GB120DN2 1200V 75A IGBT Module
How can engineers effectively minimize switching energy losses in 1200V half-bridge topologies while maintaining industrial-grade thermal stability? This is a common challenge when maintaining or upgrading legacy power conversion systems that require high-speed performance. The BSM75GB120DN2, an established Fast IGBT module from Infineon (formerly Eupec), provides a decisive answer by offering an optimized balance between 75A current handling and rapid transition speeds.
This module features a dual-switch configuration designed for 1200V applications where thermal management and efficiency are paramount. With a Vces of 1200V and a nominal current of 75A at Tc=80°C, it excels in high-frequency environments. For engineers prioritizing low switching energy (Eon/Eoff) over purely static conduction losses, the BSM75GB120DN2 remains a highly effective choice for high-speed pulse-width modulation (PWM) tasks.
What is the primary benefit of its fast-switching technology? It significantly reduces total energy dissipation during high-frequency operation, allowing for smaller heatsink footprints. For 1200V drives prioritizing high-frequency efficiency over static losses, this 75A module is the optimal choice.
Frequently Asked Questions
Addressing Critical Engineering Inquiries for Power Design
How does the fast-switching characteristic of the BSM75GB120DN2 impact the selection of gate drive resistors (Rg)?
Because this module is part of the Fast IGBT series, it is sensitive to gate drive parameters. Using a lower Rg can speed up transitions but may increase electromagnetic interference (EMI) or voltage spikes due to stray inductance. Engineers should reference the BSM75GB120DN2 datasheet for the suggested Rg to balance turn-on time with oscillations.
Is the internal isolation of this module sufficient for industrial high-voltage cabinets?
Yes, the BSM75GB120DN2 provides a high isolation voltage (Visol) of 2500V AC. This ensures safety and compliance with international standards for industrial equipment, allowing the baseplate to be directly mounted to grounded heatsinks without additional mica insulators.
How do the turn-off energy losses (Eoff) compare to standard 1200V modules in high-frequency applications?
The DN2 designation signifies a Fast IGBT technology. Compared to standard NPT or Trench modules, it exhibits significantly lower Eoff. This makes it particularly effective in reducing the "thermal bottleneck" often encountered in switching frequencies above 10kHz.
Can this module handle short-circuit events in motor control applications?
The BSM75GB120DN2 is designed with a specific short-circuit withstand time (tsc), typically rated at 10 microseconds under specified conditions (Vge=15V, Vcc=600V). Proper protection circuitry, such as desaturation detection, is recommended to ensure the module stays within its Safe Operating Area (SOA) during fault conditions.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The following technical specifications are derived from the official Infineon engineering data. These values are critical for determining the BSM75GB120DN2's suitability for specific power stage designs.
| Parameter Type | Technical Specification | Engineering Value |
|---|---|---|
| Voltage Rating | Collector-Emitter Voltage (Vces) | 1200 V |
| Current Capacity | Continuous Collector Current (Ic) @ Tc=80°C | 75 A |
| Current Capacity | Continuous Collector Current (Ic) @ Tc=25°C | 100 A |
| Switching Performance | Gate-Emitter Threshold Voltage (Vge(th)) | 4.5V to 6.5V |
| Thermal Characteristic | Thermal Resistance, Junction to Case (Rthjc) | 0.25 K/W |
| Configuration | Circuit Topology | Half-Bridge (Dual) |
| Safety Compliance | Isolation Test Voltage (Visol) | 2500V AC (1 min) |
Download the BSM75GB120DN2 datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at the Fast-Switching Dynamics for Precision Control
The BSM75GB120DN2 utilizes Infineon's high-speed IGBT technology, which is specifically optimized to minimize the duration of the "Miller plateau" during switching. To visualize this, consider a sprinter versus a marathon runner; while standard IGBTs are built for steady endurance (low conduction loss), the DN2 series is the sprinter, designed to cross the switching threshold as fast as possible to minimize the time spent in the high-dissipation linear region.
For designers, the low thermal resistance (Rthjc) of 0.25 K/W is a critical enabler. It allows for efficient heat transfer from the silicon junction to the copper baseplate. When implementing gate drive integration, engineers must account for the Fast IGBT's rapid di/dt. This necessitates a low-inductance busbar design to prevent excessive voltage overshoots during turn-off, which could otherwise threaten the 1200V rating. Utilizing a practical testing field guide can help verify the module's health during prototyping and maintenance.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
The BSM75GB120DN2 is most valuable in systems where efficiency at high frequencies is more critical than the lowest possible conduction voltage. In a welding power supply, for instance, high switching frequencies allow for smaller inductors and transformers, reducing the overall weight of the equipment. The 75A rating provides a robust buffer for handling the inrush current typically seen during arc ignition.
Another prominent application is in Variable Frequency Drives (VFDs) and servo controllers. By utilizing the Fast IGBT characteristics, these drives can operate with higher carrier frequencies, resulting in smoother motor current waveforms and reduced acoustic noise. For systems requiring even higher current handling, the related BSM150GT120DN2 offers a higher nominal current while maintaining the same 1200V architecture. Understanding the nuances of IGBT datasheet interpretation is essential for mapping these values to specific motor load profiles.
Strategically, the BSM75GB120DN2 represents a mature, high-speed solution that bridges the gap between traditional power switching and modern efficiency requirements. In an era where industrial automation and renewable energy integration demand more from existing footprints, the Fast IGBT technology provides a reliable path toward system optimization. By focusing on reduced switching energy and robust thermal packaging, engineers can extend the operational life of legacy platforms while meeting contemporary energy standards.
