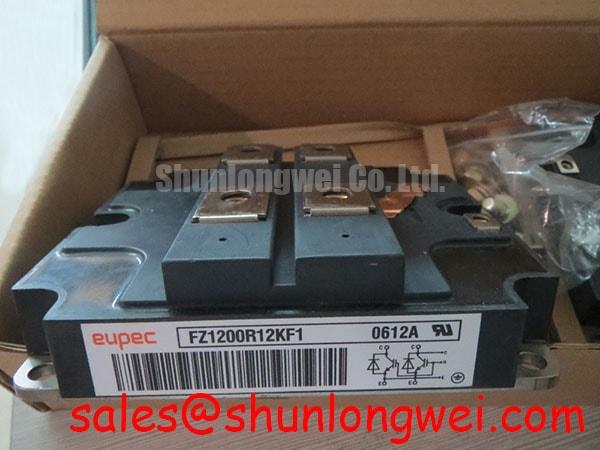

FZ1200R12KF1 Infineon 1200V 1200A IGBT Module Overview
The FZ1200R12KF1 from Infineon (formerly Eupec) delivers robust power density and high current capability for heavy-duty industrial power conversion systems. Featuring a 1200V collector-emitter breakdown voltage rating (VCES), a continuous DC collector current of 1200A (IC), and a maximum total power dissipation of 7800W (Ptot), this single IGBT module topology supports demanding industrial conversion requirements. Its primary engineering benefit lies in thermal resilience under repeated thermal cycling, while maintaining low saturation losses during high-current conduction. What is the primary benefit of the FZ1200R12KF1 single-switch design? High current capacity with minimized thermal resistance across large heatsink interfaces. For 1200A industrial inverter systems requiring high surge tolerance and robust thermal stability, the 1200V FZ1200R12KF1 module is an optimal choice.
Key Parameter Overview
Decoding Specs for Thermal Management and Power Reliability
| Parameter Symbol | Parameter Description | Technical Specification Value | Engineering Significance |
|---|---|---|---|
| VCES | Collector-Emitter Voltage | 1200V | Provides operating voltage margin for 400V–690V AC industrial power networks. |
| IC | Continuous DC Collector Current | 1200A (at TC = 80°C) | Enables high-power output in single-switch inverter stages without complex paralleling. |
| ICRM | Repetitive Peak Collector Current | 2400A (tp = 1ms) | Handles startup inrush currents and short-term inductive load surges. |
| VCE(sat) | Collector-Emitter Saturation Voltage | 2.7V typ (at IC = 1200A, VGE = 15V, Tvj = 25°C) | Dictates forward conduction losses during full-load current delivery. |
| Ptot | Total Power Dissipation | 7800W (at TC = 25°C) | Defines upper thermal limits for heatsink sizing and liquid cooling design. |
| VGES | Gate-Emitter Peak Voltage | ±20V | Establishes gate oxide voltage boundaries for gate driver turn-on and turn-off pulses. |
Application Scenarios & Value
Mitigating Thermal Stress in High-Current Industrial Inverters
In large-scale uninterruptible power supply (UPS) units, traction drives, and high-power motor control equipment, sudden load changes generate intense thermal stress inside power modules. The FZ1200R12KF1 mitigates these conditions with a 2400A peak repetitive collector current rating (ICRM). This peak current capability prevents premature desaturation during short-term motor acceleration or grid transients. System engineers designing 1200V IGBTs in industrial inverters leverage these parameters to establish wider operating margins under severe industrial duties.
Managing thermal dissipation at high power output demands precise mechanical substrate matching. The module's isolated baseplate construction spreads thermal dissipation across a broad surface area, reducing localized hot spots during sustained heavy loads. While this single-switch configuration supports heavy industrial applications up to 1200A, engineers designing lower power tiers might evaluate the FZ900R12KE4 for 900A requirements, or explore dual-switch options such as the FF1200R12KE3. For systems requiring updated switching performance in a single-switch footprint, the related FZ1200R12KF5 offers alternative loss profiles.
Technical & Design Deep Dive
Engineering Analysis of High-Power Switching and Junction Protection
High-current power conversion requires precise management of semiconductor junction temperatures (Tvj) and stray circuit inductances. In an IGBT Module operating at 1200A, parasitic busbar inductance can produce high-voltage spikes during hard turn-off events. Managing high current through a single semiconductor module substrate is like directing a massive river through a reinforced floodgate—improper current spreading creates localized hot spots that degrade internal structures over time. Proper snubber circuit design and low-inductance busbars keep turn-off voltage transients safely within the module's Safe Operating Area (SOA).
Thermal management plays a decisive role in long-term field reliability. The copper baseplate acts like a massive thermal sponge, absorbing short-duration power spikes before heat reaches the liquid cold plate or forced-air heatsink. Understanding how thermal resistance between junction and case (Rth(j-c)) interacts with thermal interface materials (TIM) ensures steady heat evacuation under continuous 7800W power dissipation limits. Optimizing IGBT thermal performance helps prevent thermal runaway and lengthens operating life in heavy industrial environments.
Frequently Asked Questions
Addressing Design Challenges in 1200A High-Power Inverters
How does the VCE(sat) spec of 2.7V impact heatsink sizing for the FZ1200R12KF1?
At a continuous 1200A collector load, a 2.7V typical collector-emitter saturation voltage results in static conduction dissipation around 3.24 kW. Cooling systems must be designed to evacuate this static thermal load alongside dynamic switching losses to keep junction temperatures within safe limits.
What gate driver requirements are critical for switching a 1200A single IGBT module?
Because of the large input capacitance (Cies around 90nF), the gate driver must deliver sufficient peak output current to ensure rapid charging and discharging of the gate. Utilizing a negative off-state gate bias (such as -8V to -15V) protects against dV/dt-induced parasitic turn-on.
Why is the 2400A peak current rating important during inductive load switching?
Inductive loads like industrial motor windings create momentary current overshoots when switching. The 2400A ICRM limit ensures transient current surges remain inside the Reverse Bias Safe Operating Area (RBSOA) without causing device degradation.
Strategic evaluation of high-power IGBT modules involves balancing electrical loss parameters against thermal dissipation constraints. Evaluating exact operating duty cycles, gate drive capabilities, and cooling capacities allows system architects to build reliable, high-current power conversion platforms.
