AUO G150XTN06.7: A 15.0-Inch eDP Industrial Display for Rugged Applications

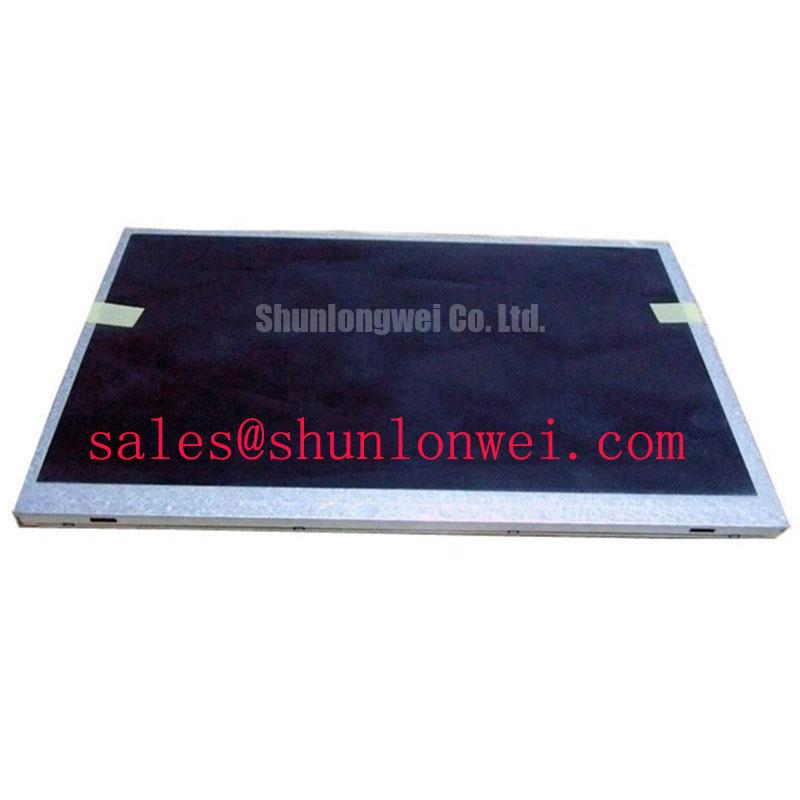

The AUO G150XTN06.7 is a high-performance 15.0-inch XGA LCD display that simplifies system integration and operates reliably under extreme thermal stresses. Utilizing a-Si TFT-LCD technology, it features 1024x768 resolution and an eDP 1.2 (1 Lane) interface. This design drastically reduces wiring complexity compared to legacy panels. With an operating temperature range of -30°C to +85°C, it ensures reliable operations in demanding environments.
Application Scenarios & Value
Simplifying Industrial HMI Cabling and Enhancing Signal Integrity
For XGA-resolution HMIs demanding simplified routing and wide-temperature reliability, the eDP-based G150XTN06.7 is the optimal choice. Engineers often face cabling bottlenecks and signal degradation when designing compact operator panels. Traditional layouts rely on multi-pair LVDS cabling, which increases bulk and electromagnetic noise. By utilizing eDP (1 Lane), this panel routes signals through narrow hinges. It is highly suitable for medical diagnostic systems and industrial automation control terminals.
In outdoor or unconditioned manufacturing environments, temperature fluctuations cause display failure. The wide operating range of this panel maintains liquid crystal stability. For designs requiring higher brightness under direct sunlight, the related G150XTN06.B provides 800 cd/m², whereas the standard G150XTN06.0 provides an LVDS interface alternative. Designers can reference the ultimate guide to TFT LCD for integration insights.
Technical Deep Dive
Analyzing eDP 1.2 Layout Advantages and Thermal Resiliency
The transition to eDP 1.2 introduces a high-speed serialization protocol. Instead of driving parallel lanes, it acts like a high-speed monorail system, packing video and control data onto a single-lane highway. This significantly minimizes PCB trace layout complexity on the host controller side. It represents a step forward for harsh environment designs, which are detailed in our guide on industrial display HMI solutions.
Thermal endurance is another defining factor. The -30°C to +85°C limit means the liquid crystal fluid resists freezing and boiling. Think of it as automotive-grade engine coolant; it stays thin enough to flow and switch states rapidly at sub-zero temperatures, preventing slow frame rates. Under high heat up to +85°C, the fluid retains its molecular structure. This prevents isotropic phase transition where the screen turns black. What is the main interface benefit? Reduced wiring complexity and lower electromagnetic interference via eDP. What is the operating temperature range? Fully operational from -30°C to +85°C.
Furthermore, the 350 cd/m² backlight brightness is driven by a WLED light bar rated for 50,000 hours. Since the LED driver is integrated directly into the display module, engineers do not need to design external constant-current power stages, accelerating time-to-market. The hard coating (3H) surface treatment guards against physical wear in high-touch applications, which is common in TN panels. More details are available in our TN vs IPS display guide.
Key Parameter Overview
Specifying Core Parameters for Reliable System Integration
| Specification Parameter | Technical Value |
|---|---|
| Screen Size | 15.0 inches (diagonal) |
| Active Area | 304.128(W) × 228.096(H) mm |
| Native Resolution | 1024 × 768 (XGA) |
| Signal Interface | eDP (1 Lane), eDP 1.2, 30-pin connector |
| Luminance (Brightness) | 350 cd/m² (Typical) |
| Contrast Ratio | 800:1 (Typical) |
| Viewing Angles | 80°/80°/70°/80° (Left/Right/Up/Down) |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -30°C to +85°C |
| Backlight Technology | WLED with integrated LED Driver (50K Hours) |
Download the G150XTN06.7 datasheet for detailed specifications and performance curves.
Frequently Asked Questions
Engineering Insights on Interface Compatibility and Environmental Limits
- How does the eDP 1.2 interface on the G150XTN06.7 compare to legacy LVDS panels in routing?
Unlike multi-pair LVDS, eDP 1.2 uses a single high-speed digital differential lane, reducing the wire count from 20-30 pins down to a simpler layout. This minimizes EMI and PCB space. - What engineering benefits does the -30°C to +85°C operating range provide for harsh environment displays?
It prevents liquid crystal slow-down in cold weather and black-out under high ambient temperatures, removing the need for external heating or cooling elements. - Can the G150XTN06.7 be used directly without an external LED driver circuit?
Yes, the backlight WLED driver circuit is integrated on-board, allowing direct 3.3V typical voltage (VDD) input for backlight operation. - Is it possible to drop-in replace the G150XTN06.7 in a system designed for the G150XTN06.0?
No, because the G150XTN06.0 utilizes a 20-pin LVDS interface, whereas the G150XTN06.7 relies on a 30-pin eDP 1.2 interface. Pin layout and interface logic differ significantly.
Transitioning to eDP-based displays like this model represents a forward-looking upgrade. As embedded system-on-chips (SoCs) phase out legacy LVDS interfaces, adopting eDP 1.2 displays ensures compatibility with next-generation platforms. This migration protects system design investments, lowers total cost of ownership, and prepares industrial HMI systems for the future.
