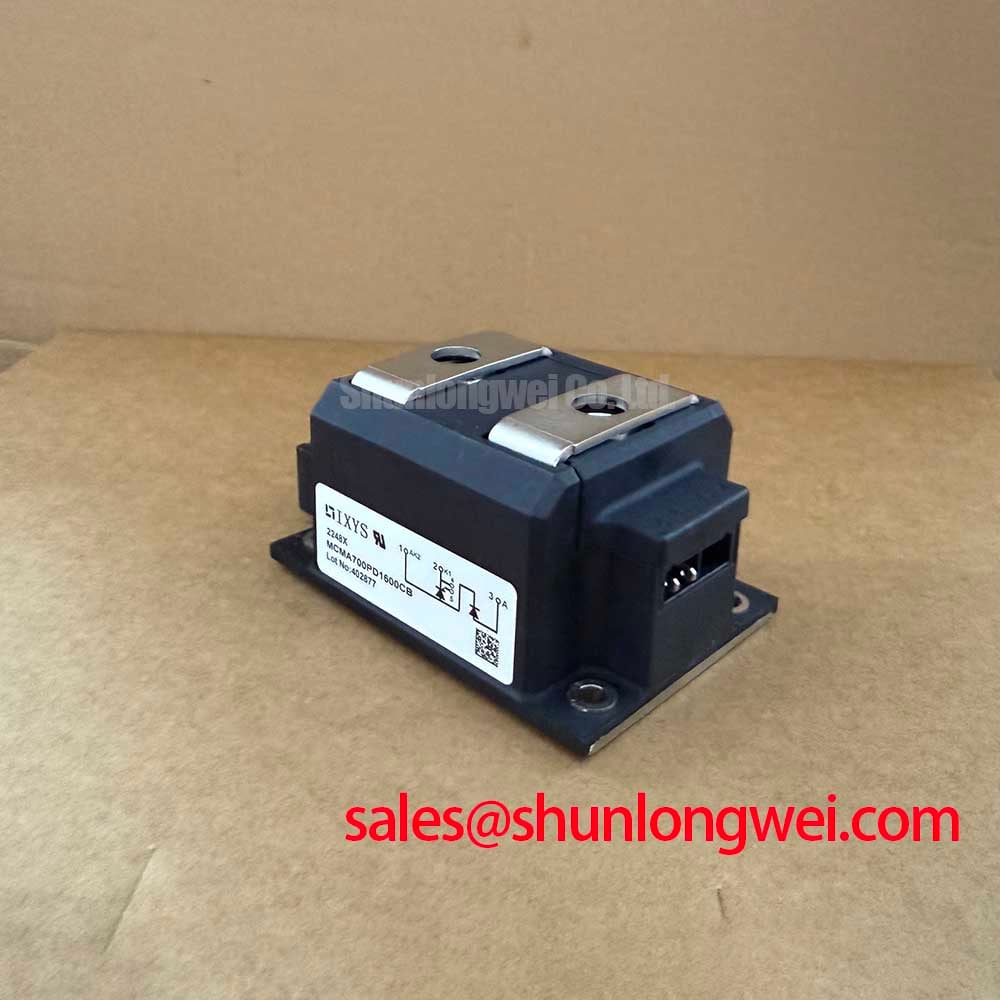

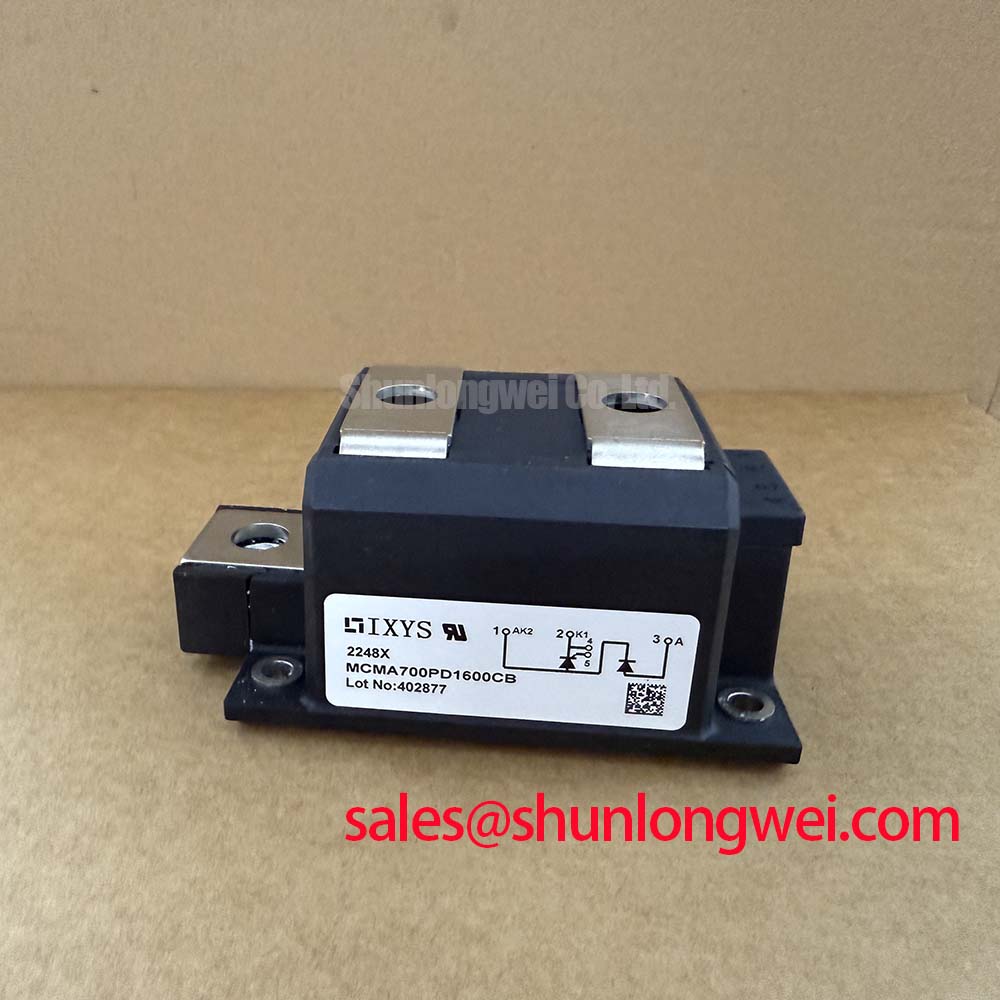

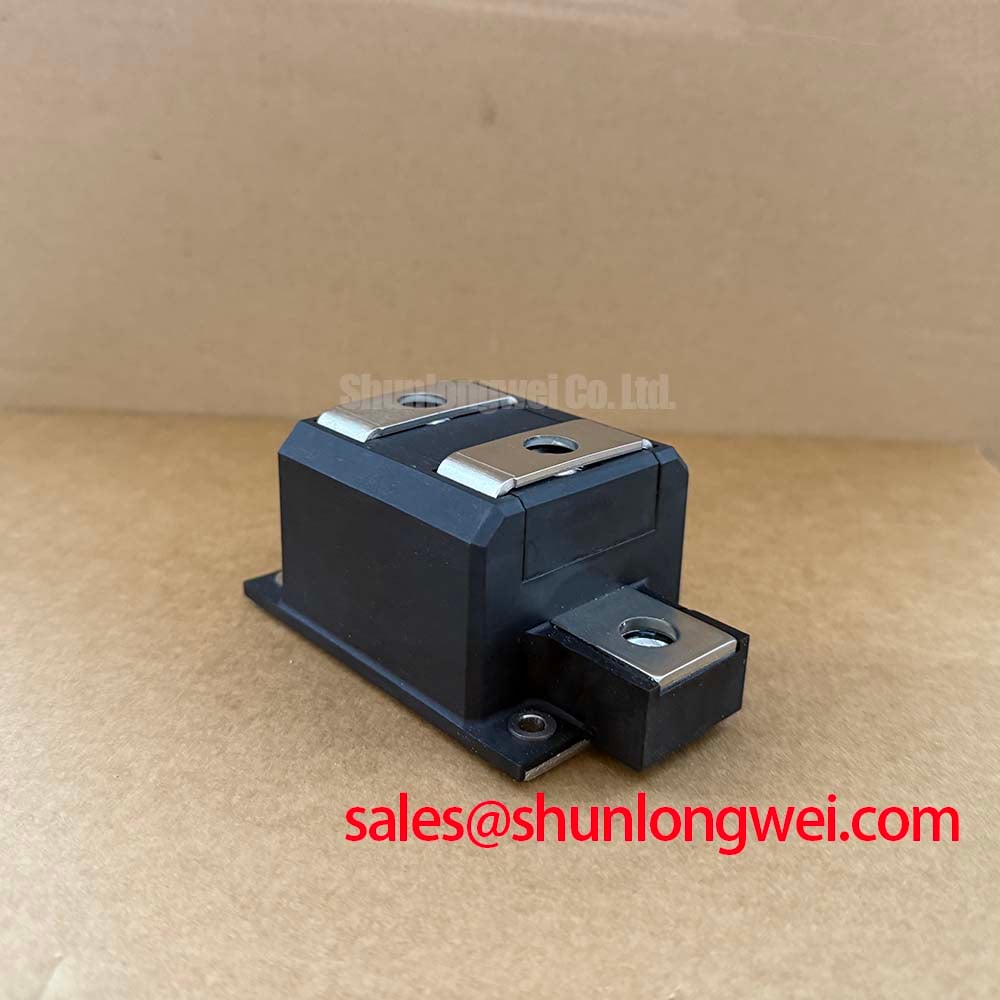

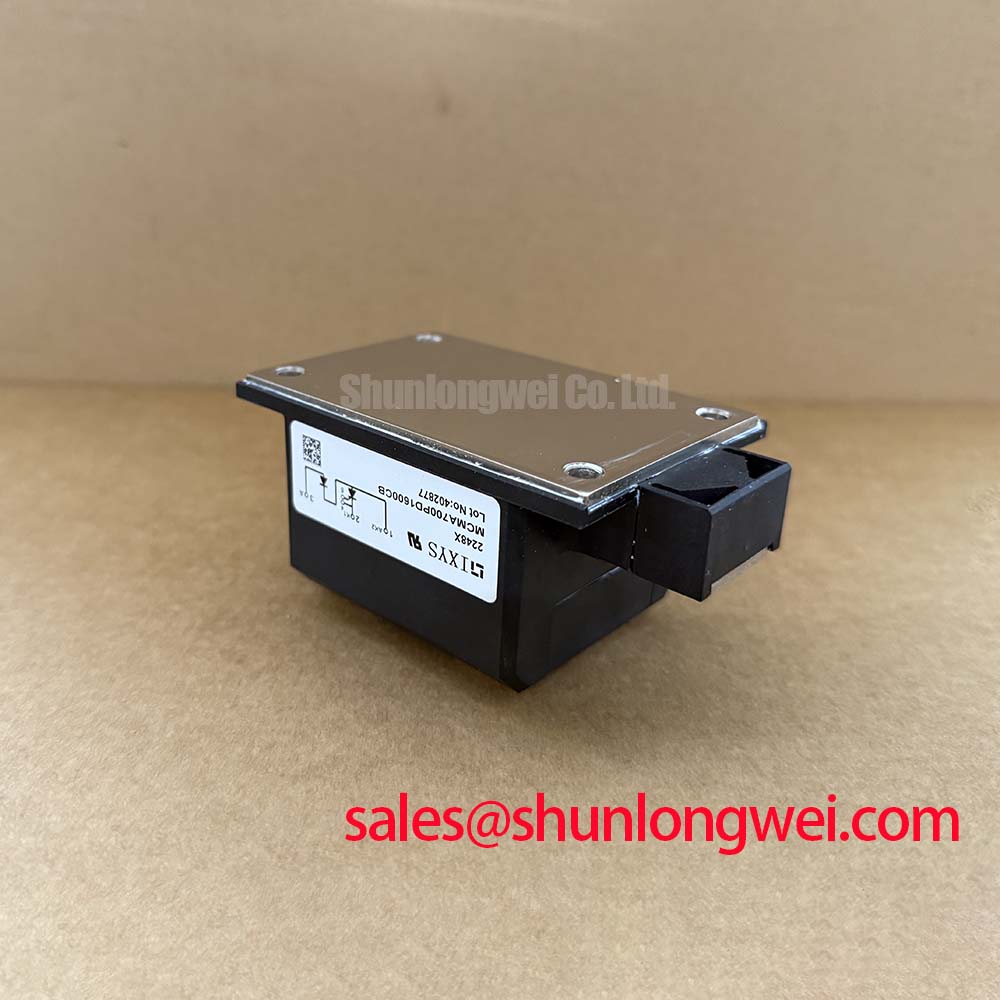

MCMA700PD1600CB IXYS 1600V 700A Phase Control Thyristor Module
The MCMA700PD1600CB, manufactured by IXYS (a Littelfuse company), is a high-performance dual thyristor (SCR) module designed for robust power switching and rectification in demanding industrial environments. Utilizing planar passivated chips, this module offers exceptional long-term voltage stability and reliable operation under thermal stress. It is specifically engineered to handle high current densities while maintaining a low forward voltage drop, making it a cornerstone for efficient power conversion systems.
UVP Statement: A high-power density 1600V phase control module delivering 700A of continuous current with planar-passivated SCRs for maximum industrial grid resilience.
Top Specs: 1600V | 700A (Tc=85°C) | Vgt 1.5V | Surge Current 22kA.
Key Benefits: Superior surge handling for motor starts; enhanced thermal cycling via Y4 package.
How does the MCMA700PD1600CB address the challenge of line voltage fluctuations in 690V industrial networks? By providing a 1600V blocking margin, it ensures that transient spikes do not lead to device desaturation or catastrophic breakdown. For high-current soft starters and input rectifiers requiring a 1600V blocking margin, the MCMA700PD1600CB is the definitive choice.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
In power electronics design, the datasheet is the primary roadmap for ensuring system longevity. The MCMA700PD1600CB provides specific electrical and thermal boundaries that allow engineers to optimize their cooling solutions and protection circuits.
| Technical Parameter | Official Rating | Engineering Significance |
|---|---|---|
| Max. Repetitive Off-State Voltage (Vdrm/Vrrm) | 1600V | Provides a significant safety buffer for 480V and 690V AC line applications. |
| Average On-State Current (Itav) @ Tc=85°C | 700A | Enables high-power output in compact inverter and rectifier stages. |
| Max. Non-Repetitive Surge Current (Itsm) | 22,000A (22kA) | Critical for surviving heavy load startups and short-circuit fault conditions. |
| Critical Rate of Rise of Off-State Voltage (dv/dt) | 1000 V/µs | Ensures high immunity against rapid voltage changes and noise in industrial grids. |
| Junction to Case Thermal Resistance (Rthjc) | 0.062 K/W | Low thermal resistance allows for efficient heat transfer to the heatsink. |
Download the MCMA700PD1600CB datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Current Power Conversion
Engineers often face the dilemma of balancing power density with thermal safety. The MCMA700PD1600CB is frequently utilized in Variable Frequency Drives (VFD) and Soft Starters for large induction motors. In an industrial conveyor system, for instance, the initial startup phase draws massive inrush currents. The 22kA surge rating of this module ensures that the SCRs survive these repetitive stress events without degrading.
Furthermore, in Uninterruptible Power Supply (UPS) systems and Solar Inverters, the stability of the 1600V blocking voltage is vital for grid-tie synchronization. The planar passivation technology acts like a microscopic "protective shield" on the silicon surface, preventing environmental contaminants from causing leakage current increases over time. This is particularly important for renewable energy installations located in harsh or humid climates.
For systems requiring alternative current handling or different topologies, engineers might also consider the MDS500A/1600V for standard three-phase rectification or the SKKT570/16E for dual-thyristor configurations in slightly lower power brackets. Proper integration often involves adhering to standards such as IEC 61800-3 for EMC compliance in adjustable speed electrical power drive systems.
Technical Deep Dive
A Closer Look at Planar Passivation and Thermal Path Design
The core technological advantage of the MCMA700PD1600CB lies in its chip architecture and packaging. Unlike older mesa-type SCRs, the planar passivated structure used here ensures that the electric field at the junction edge is controlled more precisely. Think of planar passivation as a specialized clear-coat on a car's paint; it doesn't just look better; it prevents the underlying structure from oxidizing and failing when exposed to the elements. This leads to a device that maintains its 1600V integrity even after thousands of power cycles.
From a Thermal Management perspective, the Y4 package design utilizes a Direct Copper Bonding (DCB) substrate. This internal structure acts as a "thermal highway," moving heat from the silicon junction to the copper baseplate with a resistance of only 0.062 K/W. By minimizing the temperature gradient, designers can use smaller heatsinks or operate at higher ambient temperatures without exceeding the 140°C maximum virtual junction temperature. This efficiency is critical in induction heating and welding power supplies where duty cycles are high and cooling space is often constrained.
Understanding the interaction between gate drive current and turn-on time is also essential. A robust Gate Drive circuit must provide sufficient peak current to ensure rapid and uniform turn-on across the entire thyristor area, preventing localized "hot spots" that can lead to premature failure. For more insights on preventing such issues, engineers can refer to technical resources on diagnosing key failure modes in power modules.
Frequently Asked Questions
How does the 0.062 K/W thermal resistance directly impact heatsink selection for the MCMA700PD1600CB?
The low Rthjc of 0.062 K/W means that for every 100W of power dissipated, the junction temperature only rises 6.2°C above the case temperature. This allows engineers to use higher thermal resistance (and thus smaller or lighter) heatsinks while still keeping the junction temperature within safe limits, effectively increasing system power density.
Is a negative gate voltage required for the MCMA700PD1600CB during the off-state?
Unlike some high-speed IGBTs, thyristors like the MCMA700PD1600CB typically do not require a negative gate voltage to remain off. However, ensuring the gate-cathode circuit is low-impedance or slightly reverse-biased can improve noise immunity (dv/dt ruggedness) in electrically noisy industrial environments.
What is the primary benefit of the 22kA surge current rating in soft-starter applications?
In soft starters, the module must handle 3 to 5 times the rated motor current during startup. The 22kA surge rating (Itsm) provides the necessary overhead to handle these "locked rotor" conditions and potential grid-side transients without reaching the thermal fuse point of the silicon die.
When designing high-reliability power stages, the focus must extend beyond simple voltage and current ratings to include thermal stability and surge ruggedness. The MCMA700PD1600CB offers a strategically balanced set of features that align with the rigorous demands of modern industrial automation and energy management. By leveraging its low thermal resistance and robust planar technology, engineers can develop systems that are not only efficient but built for multi-decade service lives in the field.
