Optimizing Industrial Rectification: Is Your Front-End Robust Enough for 500A Continuous Loads?
How can engineers ensure long-term reliability in high-power industrial environments where thermal cycling and current surges are constant threats? The MDS500-16, manufactured by SanRex (Sansha Electric), provides a definitive answer through its high-capacity three-phase diode bridge architecture. Designed to handle 1600V and 500A, this module serves as the critical entry point for power conversion systems requiring uncompromising durability.

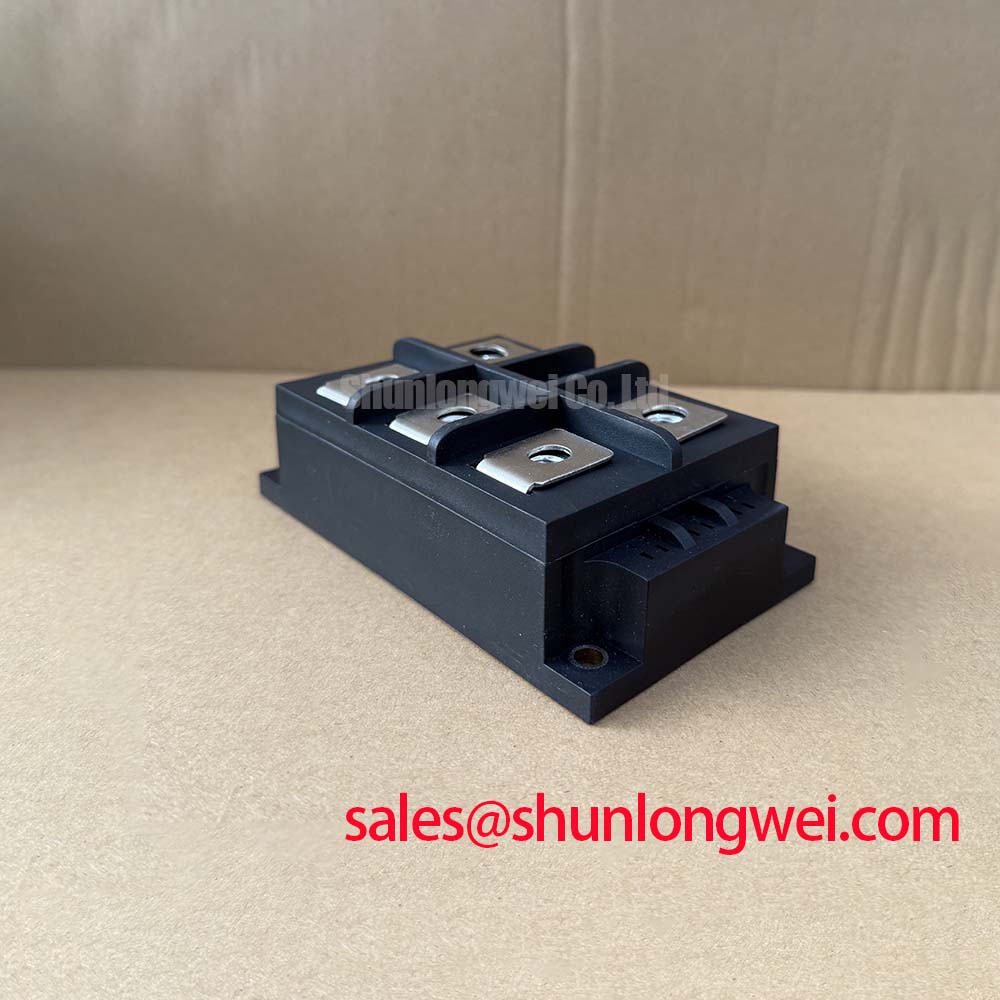

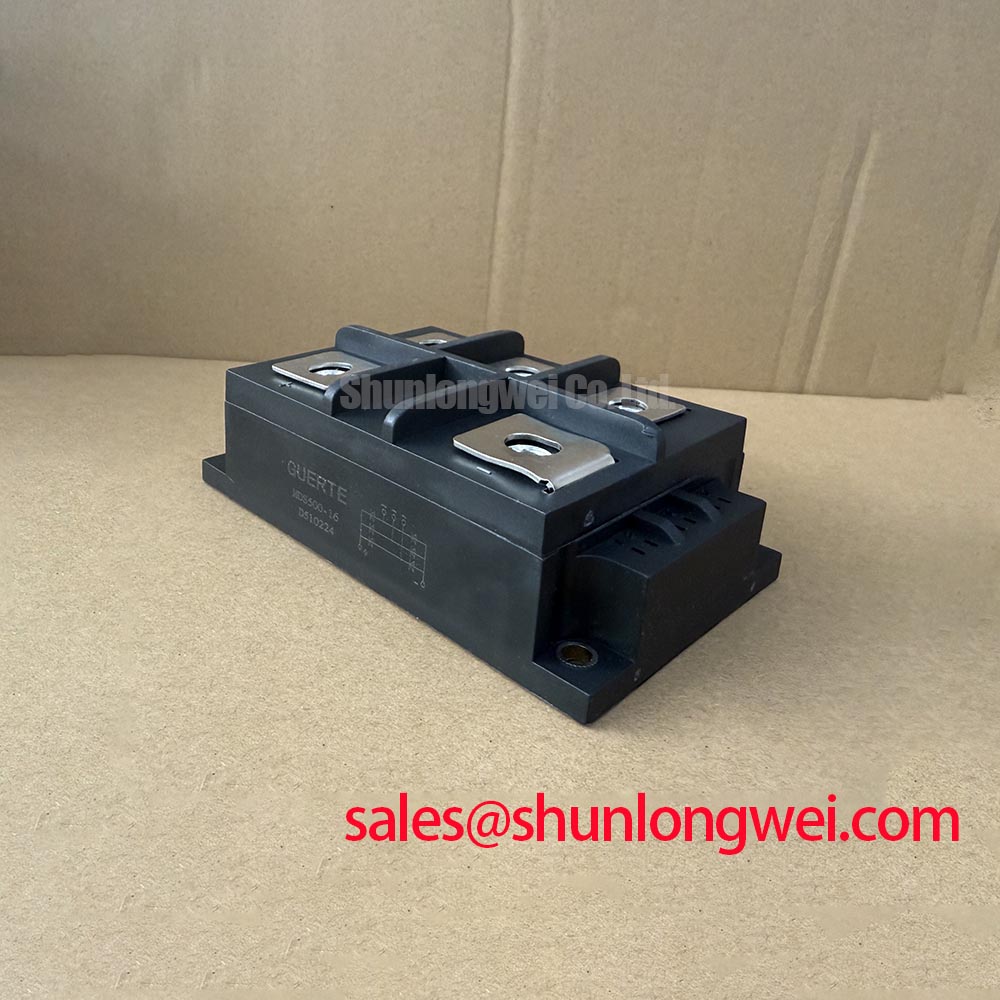

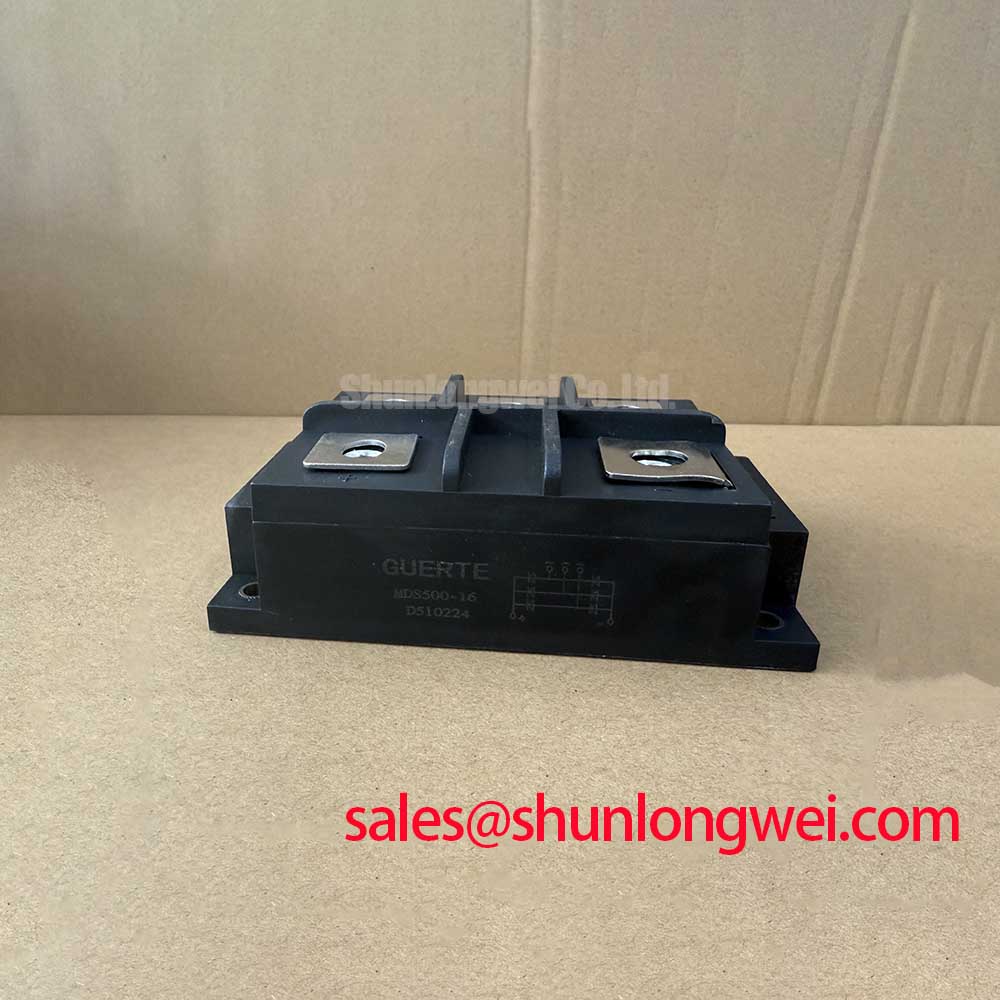

The MDS500-16 is a heavy-duty three-phase diode bridge rectifier module engineered for high-current industrial applications requiring superior thermal management.
1600V | 500A | Tj Max 150°C.
Key benefits include extreme surge current handling and a low-profile, high-reliability package.
What is the primary benefit of its pressure-contact design? It significantly reduces thermal fatigue compared to soldered alternatives, extending the module's operational lifespan in fluctuating load conditions. For 480V industrial line systems requiring high current throughput and low thermal resistance, the MDS500-16 is the optimal choice.
Frequently Asked Questions
Addressing Design and Reliability Concerns
How does the MDS500-16 handle input voltage transients in 480V or 600V industrial networks?
With a Repetitive Peak Reverse Voltage (V_RRM) of 1600V, the MDS500-16 offers a significant safety margin for systems operating on standard industrial voltages. This rating allows the module to withstand transient spikes and surges common in factory environments without the immediate risk of avalanche breakdown, providing essential protection for downstream IGBT modules or DC-link capacitors.
What is the engineering significance of the 500A rating at a specific case temperature?
The 500A Average Rectified Forward Current (I_D) is typically rated at a case temperature (Tc) of approximately 94°C. For engineers, this means that the thermal management system must be capable of maintaining the baseplate temperature below this threshold to utilize the module's full capacity. Exceeding this temperature requires linear de-rating to prevent junction overheating and subsequent failure.
How does the high surge current rating (I_FSM) impact fuse selection?
The MDS500-16 features a non-repetitive surge forward current (I_FSM) of 6500A (at 60Hz). This high tolerance allows the module to survive the massive inrush currents seen during large motor startups or transformer energization. When calculating protection, engineers should reference the I2t value provided in the datasheet to ensure the semiconductor fuse clears before the diode junction reaches its critical energy limit.
Does the package design support easy integration into existing busbar layouts?

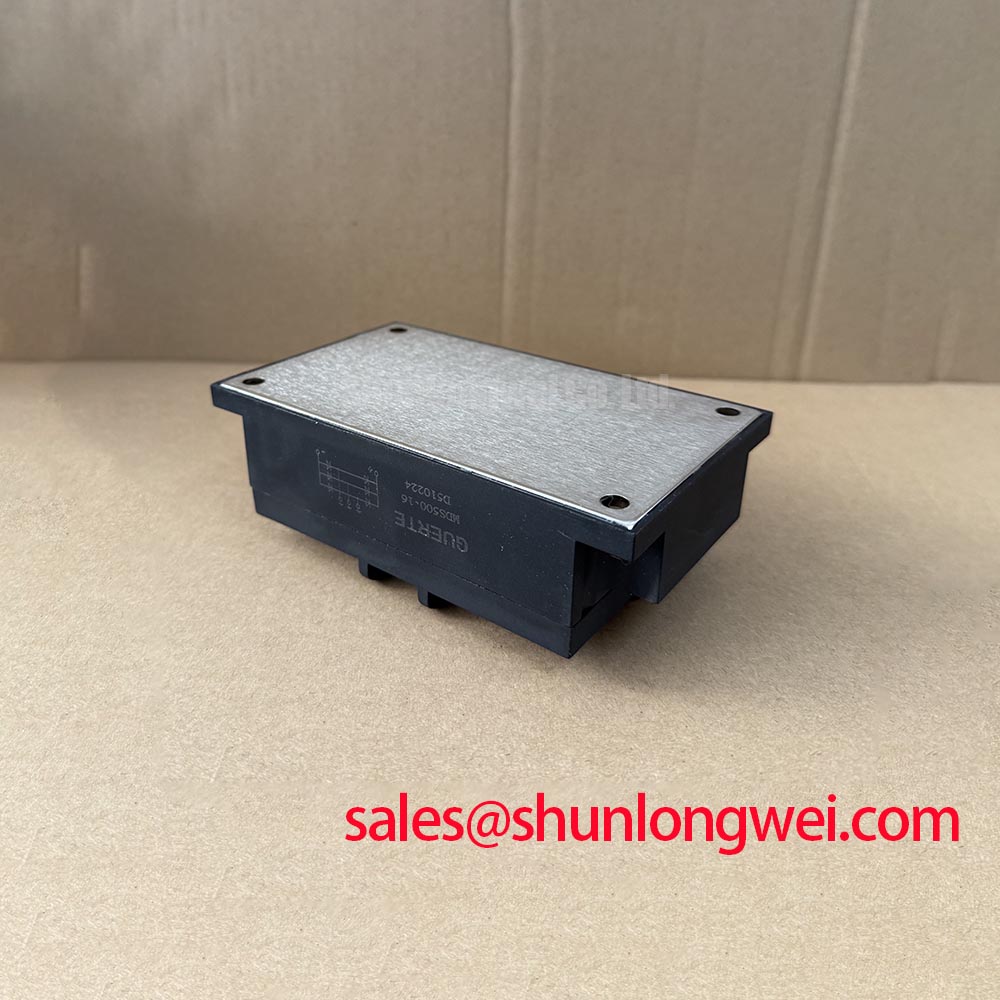

Yes, the MDS500-16 utilizes a standard industrial footprint with a flat baseplate and M6/M8 terminal connections. This facilitates low-inductance busbar mounting, which is critical for reducing voltage overshoots during high-current rectification. The electrically isolated baseplate allows multiple modules to be mounted on a single common heatsink, simplifying the overall mechanical assembly.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Technical Specification | Rated Value | Engineering Value |
|---|---|---|
| Repetitive Peak Reverse Voltage (V_RRM) | 1600V | Ensures compatibility with 480V/600V AC lines. |
| Average Output Current (I_D) | 500A | High-density rectification for heavy machinery. |
| Surge Forward Current (I_FSM) | 6500A | Withstands massive inrush current peaks. |
| Maximum Junction Temperature (Tj Max) | 150°C | Maintains performance in harsh ambient heat. |
| Isolation Voltage (Visol) | 2500V AC | Safe mounting on grounded heatsinks. |
Download the MDS500-16 datasheet for detailed specifications and performance curves.
Technical Deep Dive
Thermal Management and Reliability in High-Power Rectification
The MDS500-16 is built upon a pressure-contact technology platform, which is superior to standard solder-bonded modules in high-power applications. In a soldered module, repetitive heating and cooling cycles create mechanical stress due to differing coefficients of thermal expansion between the silicon and the substrate. Over time, this leads to solder fatigue and increased thermal resistance. The pressure-contact design of the SanRex MDS500-16 maintains a consistent mechanical force on the die, ensuring stable electrical and thermal contact even after thousands of cycles.
Consider the thermal resistance parameter Rth(j-c), which is approximately 0.10°C/W for this module. This low value is equivalent to having a wide, frictionless pipe for heat to escape the junction. By minimizing the thermal bottleneck at the baseplate interface, the MDS500-16 allows engineers to design smaller cooling systems or operate at higher ambient temperatures without compromising the 150°C junction safety limit. For a deeper understanding of these concepts, engineers can refer to our technical guide on why Rth matters in power module selection.
Application Scenarios & Value
Achieving System-Level Benefits in High-Current Power Conversion
For systems requiring higher current handling, the related SKKD260/16 offers a different mechanical configuration, but for integrated three-phase rectification, the MDS500-16 remains a preferred standard. A primary application is the input stage of a Variable Frequency Drive (VFD). In a 250kW motor drive, the rectifier must bridge raw AC power to a DC bus. The MDS500-16 excels here because it can handle the continuous 500A load while protecting the sensitive IGBT modules in the inverter stage from line-side disturbances.
In Welding Power Supply systems, the module faces extreme load variations, often jumping from zero to several hundred amps in milliseconds. The high I2t capability of the MDS500-16 ensures that these "thermal shocks" do not degrade the diode junctions. Furthermore, for systems integrating advanced control, understanding how an IGBT works downstream of this rectifier can help in optimizing the overall efficiency of the power stage. For smaller footprint requirements, the MDC100-16 offers a lower current alternative within the same reliability family.
As industrial systems transition toward higher power densities and Industry 4.0 connectivity, the choice of front-end components like the MDS500-16 becomes a strategic decision. By prioritizing modules with high surge margins and stable thermal performance, procurement teams can reduce the Total Cost of Ownership (TCO) through minimized downtime. Whether integrated into a UPS system or a heavy-duty electrolysis power supply, the SanRex MDS500-16 remains a benchmark for reliable, high-current rectification in the global power electronics market.
