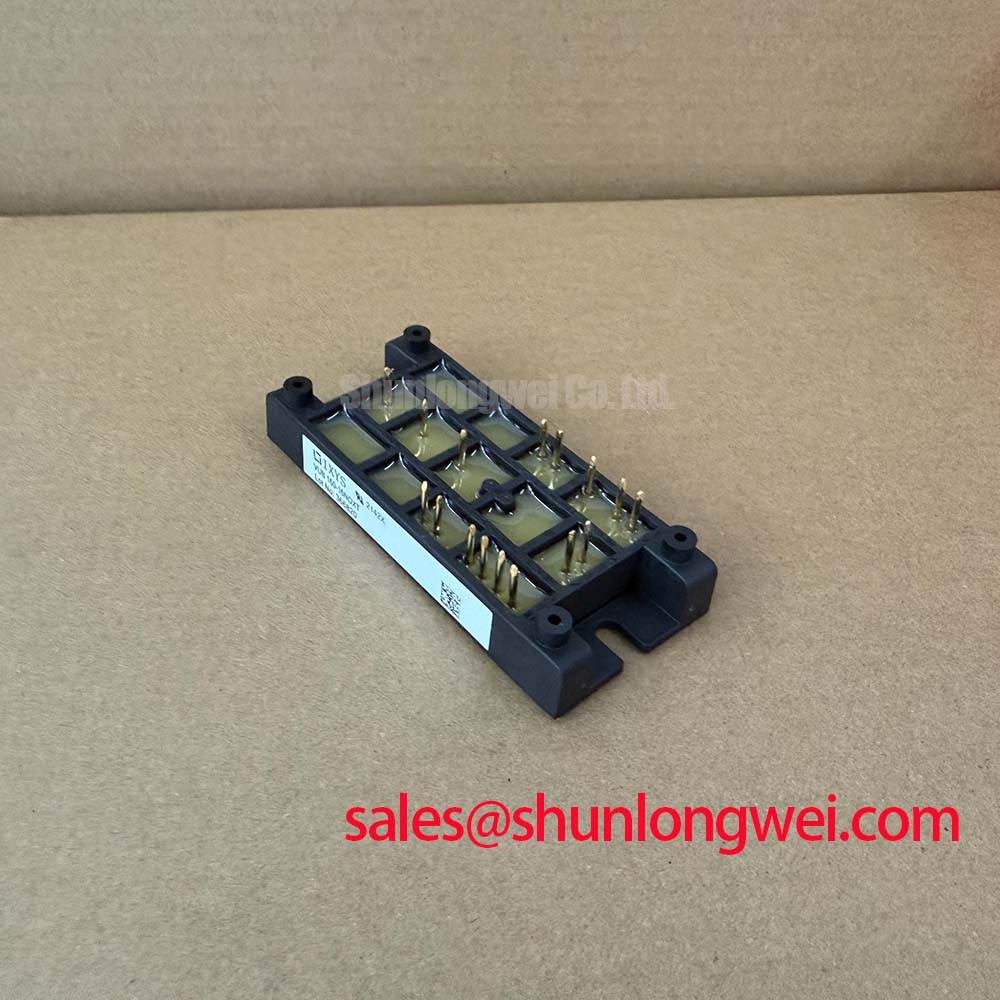

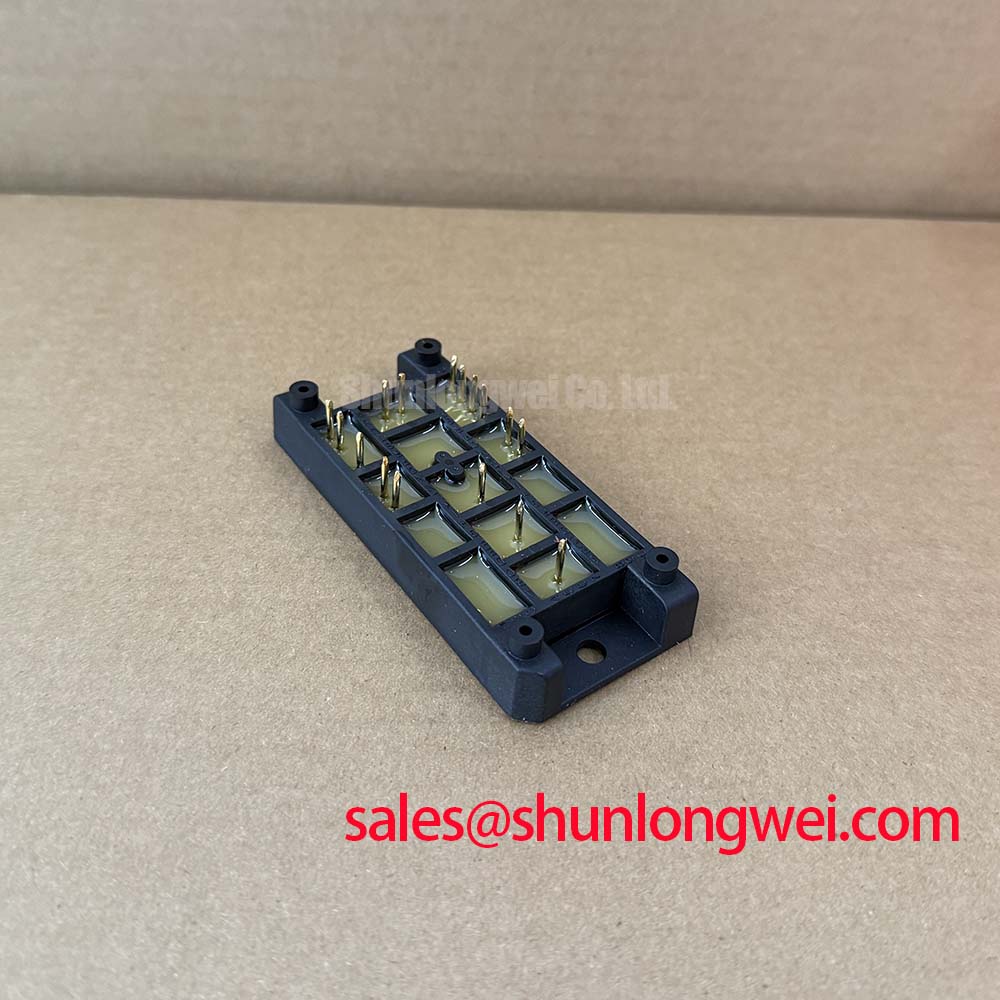

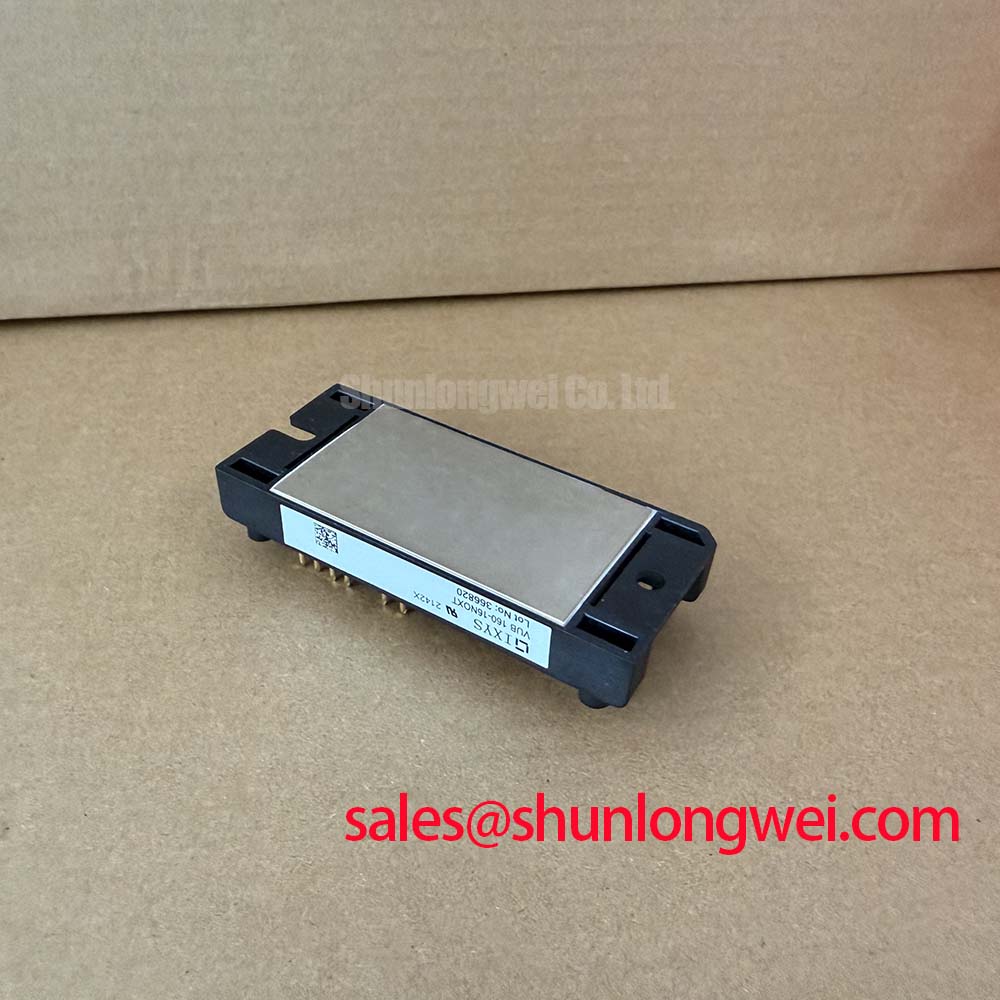

VUB160-16NOXT IXYS Three-Phase Rectifier Bridge with Brake Unit
The VUB160-16NOXT is a high-performance three-phase rectifier module with an integrated brake unit and NTC thermistor, providing thermal reliability and space efficiency. Designed for tough industrial environments, its key specifications include 1600V peak reverse voltage, 180A average rectified current, and a 1200V brake IGBT. By combining a 3-phase input bridge with a rugged X2PT brake chopper in a single V2-PAK package, it simplifies system layouts and minimizes parasitic inductance. For engineers asking how to mitigate voltage spikes during heavy braking, this module offers an integrated, low-loss path for rapid energy dissipation.
Technical Specifications Overview
Decoding the Specs for Enhanced Thermal Reliability
This integrated module features a highly optimized three-phase input bridge designed to withstand line-voltage fluctuations on a standard 400V to 480V grid. The 1600V repetitive peak reverse voltage rating provides a solid voltage headroom, preventing catastrophic failure from transient line spikes.
| Component / Feature | Key Parameter | Maximum Rating / Value | Condition / Notes |
|---|---|---|---|
| 3~ Rectifier Bridge | VRRM (Repetitive Peak Reverse Voltage) | 1600V | TVJ = 150°C |
| 3~ Rectifier Bridge | IdAV (Average Rectified Current) | 180A | TC = 110°C; Rectified output |
| 3~ Rectifier Bridge | IFSM (Surge Forward Current) | 1100A | TVJ = 45°C; t = 10 ms (50 Hz), sine |
| Brake Chopper IGBT | VCES (Collector-Emitter Voltage) | 1200V | TVJ = 25°C |
| Brake Chopper IGBT | IC25 (Collector Current) | 250A | TC = 25°C |
| Brake Chopper IGBT | VCE(sat) (Saturation Voltage) | 1.7V (typ.) | IC = 180A; TVJ = 125°C |
| Brake Chopper IGBT | tsc (Short-Circuit Withstand) | 10 µs | VGE = ±15V; VCE = 720V; TVJ = 125°C |
| Module Isolation | VISOL (Isolation Voltage) | 3600V AC | t = 1 minute; 50/60 Hz |
Download the VUB160-16NOXT datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
For 400V industrial motor drives requiring integrated braking and high thermal endurance, this 1600V module is the optimal choice.
In industrial drive systems, engineers often face severe challenges during rapid deceleration of heavy rotating loads. The motor acts as a generator, feeding energy back into the DC bus and causing high-voltage transients. The integrated X2PT brake chopper in this module offers a robust solution, redirecting this energy through an external resistor. The 10 µs short-circuit capability ensures that the system survives transient fault currents without immediate thermal failure.
This module is widely used in high-duty Variable Frequency Drives (VFD), heavy-duty conveyor systems, and industrial crane hoist controls. By utilizing its integrated Direct Copper Bonded (DCB) ceramic baseplate, the module delivers superior thermal cycle endurance, keeping internal silicon junctions within safe operating limits. While this module is designed for 180A rectified output, applications requiring lower current capacity can evaluate the related VUB72-16NO1, which features a similar integrated configuration in a more compact thermal footprint.
Technical Deep Dive
A Closer Look at the X2PT IGBT and DCB Baseplate Integration
The performance of this module rests on the integration of bipolar rectification and active switching. For a detailed breakdown of how these systems function internally, engineers can reference this engineering analysis of IGBT modules. The module employs planar passivated rectifier chips alongside IXYS's proprietary X2PT IGBT technology. This delivers a low VCE(sat) of 1.7V while maintaining a square reverse bias safe operating area (RBSOA).
To understand heat dissipation in this high-power density layout, we can look at the importance of thermal resistance (Rth). Let's use an analogy: thermal resistance in a power module is like a multi-lane highway. A lower thermal resistance acts as extra open lanes, allowing high heat flux to flow out of the semiconductor junction smoothly and preventing dangerous bottlenecks. The DCB ceramic base plate provides excellent thermal conductivity directly to the external heatsink while maintaining 3600V AC electrical isolation.
The 10 µs short-circuit capability of the brake IGBT acts as an electrical crumple zone. Just as a vehicle’s crumple zone absorbs impact energy to protect passengers during a crash, this 10-microsecond window absorbs high electrical stresses during transient overload faults. This gives the controller ample time to detect desaturation and shut down safely, protecting the system from catastrophic failure. For more on robustness, see the field reliability guidelines.
To summarize the core reliability benefits:
What is the main benefit of the DCB baseplate? It lowers thermal resistance and maximizes power cycling endurance.
How long can the brake IGBT withstand a short circuit? It is rated for a robust 10 microseconds.
Frequently Asked Questions
Key Design Considerations and Field Application Insights
How does the integrated NTC thermistor improve system-level safety?
The integrated NTC thermistor is placed directly on the DCB ceramic base plate, allowing real-time monitoring of base plate temperatures. This provides low-latency thermal feedback. This enables microcontrollers to trigger protective thermal shutdown or reduce load currents before the silicon junctions exceed their maximum rated junction temperature of 150°C, preventing long-term material degradation.
What makes the V2-PAK chassis mount package superior to traditional discrete designs?
The V2-PAK package consolidates the three-phase bridge, the brake IGBT, and the NTC thermistor into a single, compact footprint. This integration reduces loop inductance between the rectifier and the brake unit, mitigating dangerous voltage overshoot during fast IGBT switching. Additionally, mounting a single module with two screws onto a heatsink is simpler and less prone to assembly errors than mounting multiple discrete components, lowering assembly overhead.
What is the engineering significance of the 1600V VRRM rating in a 400V grid application?
On a standard 400V AC grid, transient voltage spikes from inductive switching can exceed 1000V. The 1600V peak reverse voltage rating provides a robust safety margin (typically 2.5 to 3 times nominal line voltage). This margin acts as an electrical shield, ensuring that input voltage spikes do not cause reverse breakdown of the rectifier diodes, enhancing long-term uptime.
As industrial automation moves toward greater integration and strict energy conservation standards, compact power integrated modules represent a critical path forward. By housing high-capacity rectification and active braking in a thermally optimized footprint, the VUB160-16NOXT empowers engineers to build more power-dense, reliable, and compliant motor drive systems. This strategic integration is key to achieving both regulatory compliance and long-term operating efficiency in next-generation industrial power electronics.
