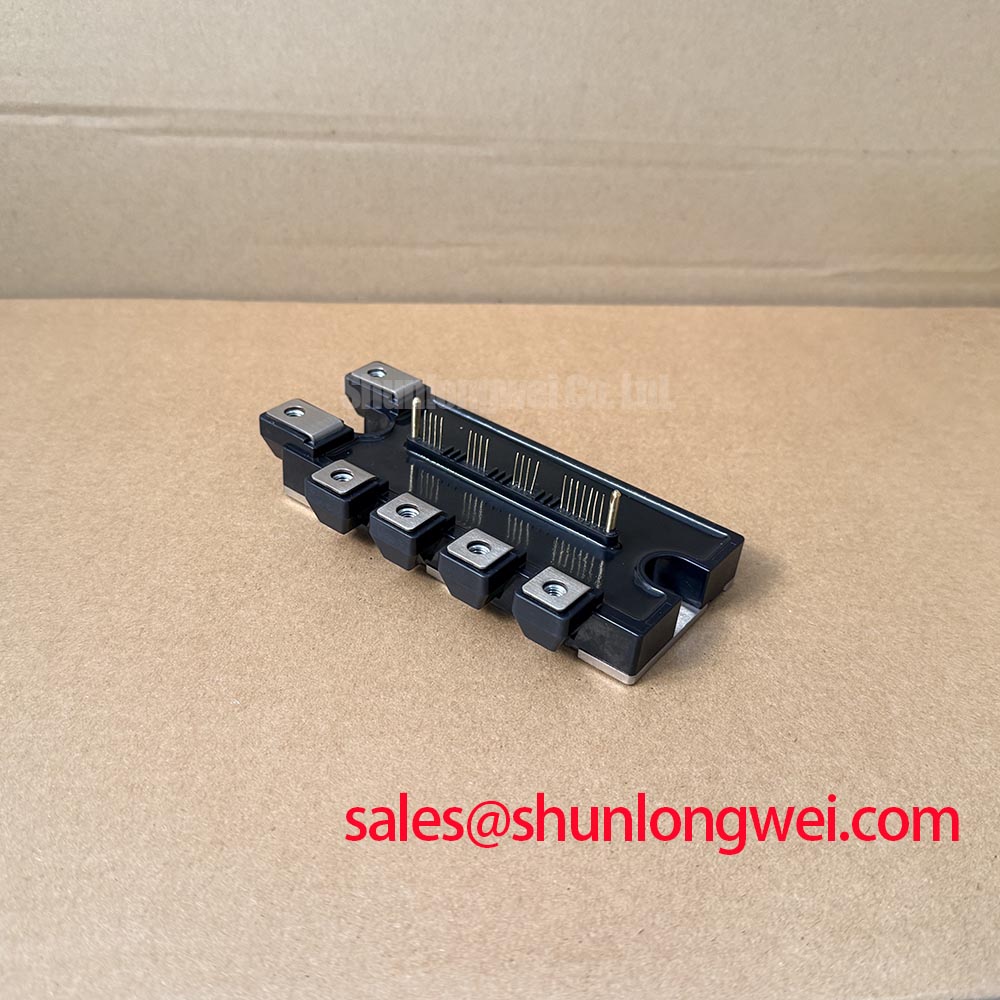

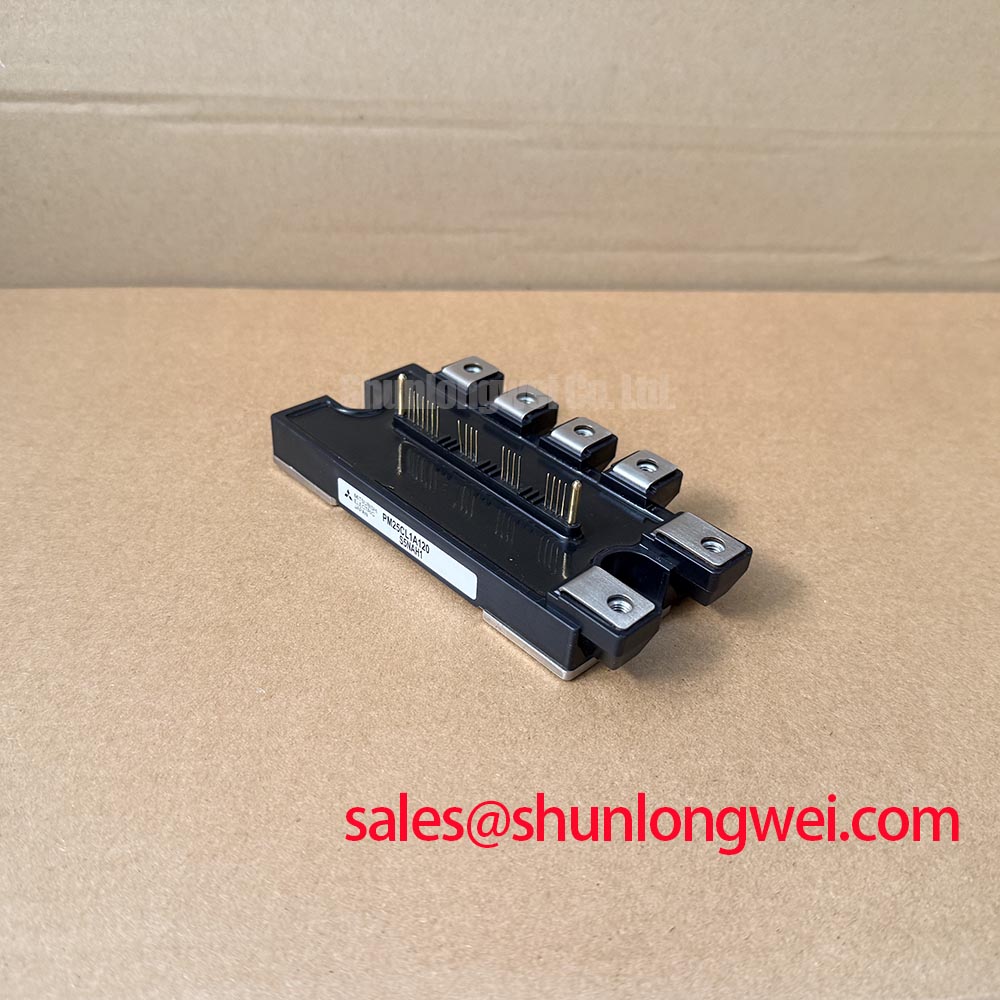

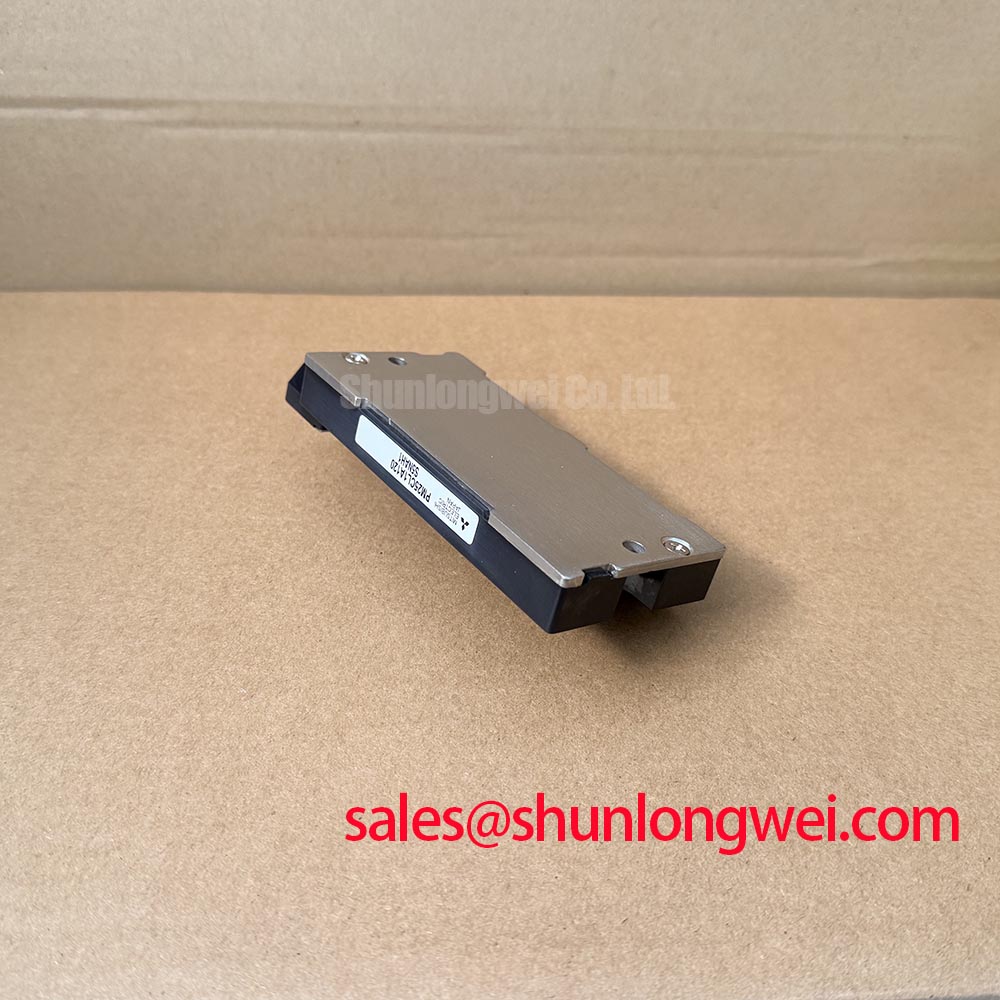

PM25CL1A120 Mitsubishi Electric 1200V 25A Intelligent Power Module
The PM25CL1A120, manufactured by Mitsubishi Electric, represents a highly integrated Intelligent Power Module (IPM) designed for three-phase inverter applications. By combining high-performance CSTBT™ (Carrier Stored Trench-gate Bipolar Transistor) technology with built-in gate drive and protection logic, this module eliminates the complexities associated with discrete power stage design. It is specifically engineered to handle 1200V and 25A, making it a cornerstone for industrial motion control and energy-efficient power conversion systems. For 400V industrial drives prioritizing system footprint and reliability, the PM25CL1A120 1200V IPM is the optimal choice.
Top Specs: 1200V | 25A | Tj(max) 150°C
Key Benefits: Integrated fail-safe protection logic; Significant reduction in PCB parasitic inductance.
What is the primary benefit of the integrated protection in the PM25CL1A120? It ensures fail-safe operation by autonomously detecting over-current and thermal stress without external sensing circuits. This module solves the hidden challenge of ensuring high-speed protection response times in compact motor drive environments.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The following technical data is derived from the official Mitsubishi Electric L1-Series documentation. These figures represent the absolute maximum ratings and typical electrical characteristics essential for engineering evaluation.
| Symbol | Parameter Description | Value / Condition |
|---|---|---|
| Vces | Collector-Emitter Voltage | 1200V |
| Ic | Collector Current (DC) | 25A at Tc = 25°C |
| Vce(sat) | Collector-Emitter Saturation Voltage | 1.8V (Typical) |
| Ptot | Total Power Dissipation | 152W |
| Tj | Operating Junction Temperature | -20°C to +150°C |
| Viso | Isolation Voltage | 2500V AC (60Hz, 1 min) |
Download the PM25CL1A120 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
The PM25CL1A120 excels in Variable Frequency Drive (VFD) systems and precision Servo Drive units. A critical engineering challenge in these applications is managing the surge currents during motor startup. With its robust Short Circuit Safe Operating Area (SCSOA), this module acts as a "safety fuse with a brain," detecting a short circuit condition within microseconds and shutting down the gate drive to prevent catastrophic failure. This is particularly valuable in industrial conveyor systems where mechanical jams can lead to sudden over-current states.
In addition to motor control, this IPM is a preferred choice for high-efficiency HVAC inverters and Solar Inverter stages. Its low Vce(sat) of 1.8V minimizes conduction losses, which is vital for thermal management in sealed or unventilated enclosures. For systems requiring higher current handling while maintaining the same 1200V architecture, the PM50CL1A120 offers a 50A rating, while the PM75CL1A120 provides a 75A solution for heavy-duty industrial loads. By integrating the drive circuit, the module effectively reduces electromagnetic interference (EMI), supporting faster compliance with IEC 61800-3 standards for adjustable speed electrical power drive systems.
Technical Deep Dive
Integrated Protection Logic and CSTBT™ Physics
At the core of the PM25CL1A120 is the Mitsubishi CSTBT™ chip technology. Think of CSTBT™ as a high-performance athlete that consumes less energy; it reduces the carrier storage effect, which significantly lowers switching losses compared to standard trench IGBTs. This efficiency gain allows for higher carrier frequencies, leading to quieter motor operation and smoother torque delivery. You can explore more about these technologies in our guide on IPM vs Discrete IGBT: A Framework for System Cost and Reliability.
The "Intelligent" part of this module refers to the Gate Drive and protection ICs mounted directly inside the package. The Short-Circuit Protection (SC) function monitors the collector current of each IGBT. If a fault is detected, the module outputs an error signal (Fo) to the system controller. This internal monitoring is far more accurate than external shunt resistors because it accounts for the internal temperature coefficients of the silicon. Analogous to a modern vehicle's ECU constantly monitoring engine health, the PM25CL1A120 continuously validates its own Thermal Management status, providing an Under-Voltage (UV) lockout if the control supply drops below a safe threshold. Understanding these nuances is critical, as detailed in our resource on Decoding IGBT Datasheets.
The physical layout of the L1-series package is designed to minimize stray inductance between the internal IGBT Module and the protective ICs. This proximity ensures that the protection response is nearly instantaneous, a feat difficult to achieve with discrete components. Engineers can find further design insights through official Mitsubishi CSTBT™ Application notes on motion control optimization.
FAQ
How does the integrated Over-Temperature (OT) protection in the PM25CL1A120 improve system-level reliability?
The module features a built-in temperature sensor on the IGBT chips. Unlike external thermistors on a heatsink, this sensor detects the actual junction temperature. It triggers an error signal before the silicon reaches its destructive limit, allowing the controller to ramp down power gracefully rather than failing abruptly.
Does the PM25CL1A120 require a negative gate voltage for reliable turn-off?
No. Thanks to the sophisticated Gate Drive logic integrated within the IPM, the PM25CL1A120 is designed to operate reliably with a single 15V supply. The internal circuitry handles the Miller Clamp effect and prevents parasitic turn-on, simplifying the auxiliary power supply design for the engineer.
From a strategic procurement perspective, the PM25CL1A120 represents a mature, high-reliability platform that reduces total cost of ownership by lowering assembly costs and improving field MTBF. As industrial systems move toward higher power densities, the integration level of this IPM provides a robust foundation for next-generation automation.
