RM600DY-66H Datasheet | 3300V 600A IGBT Module Specs

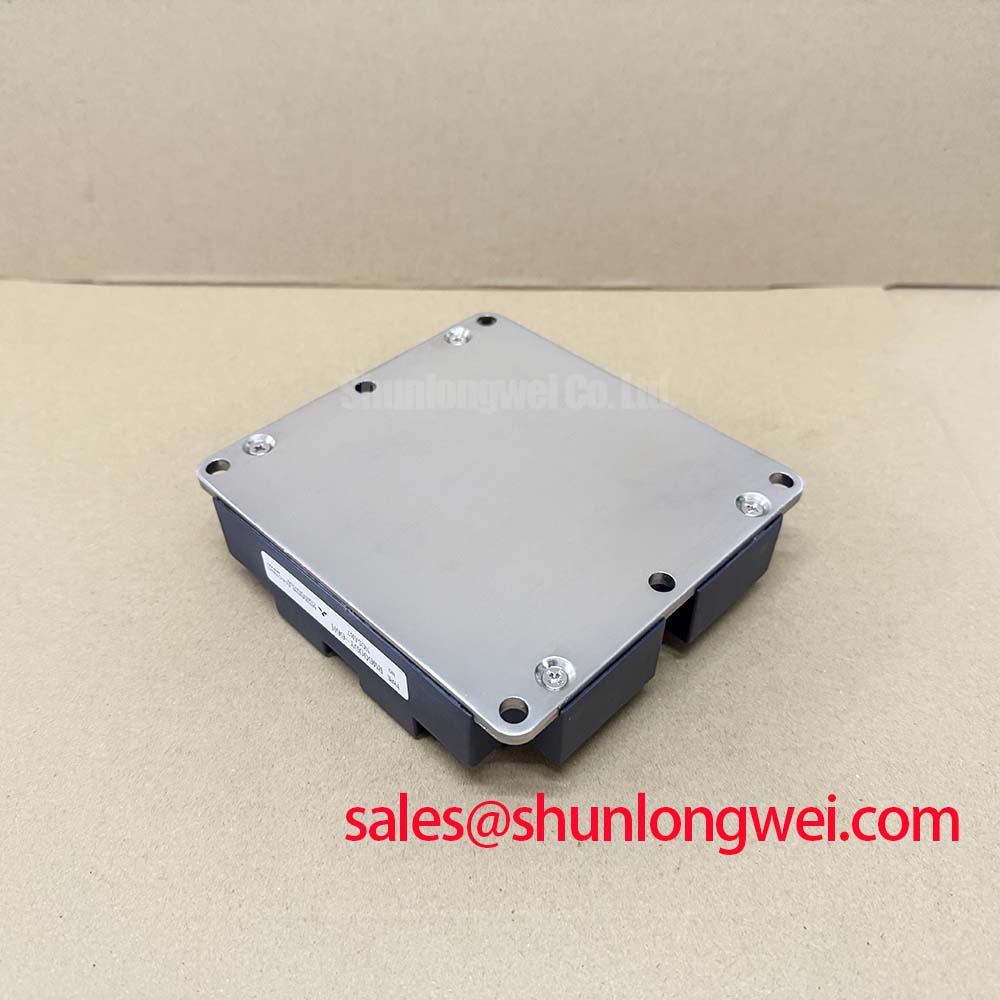

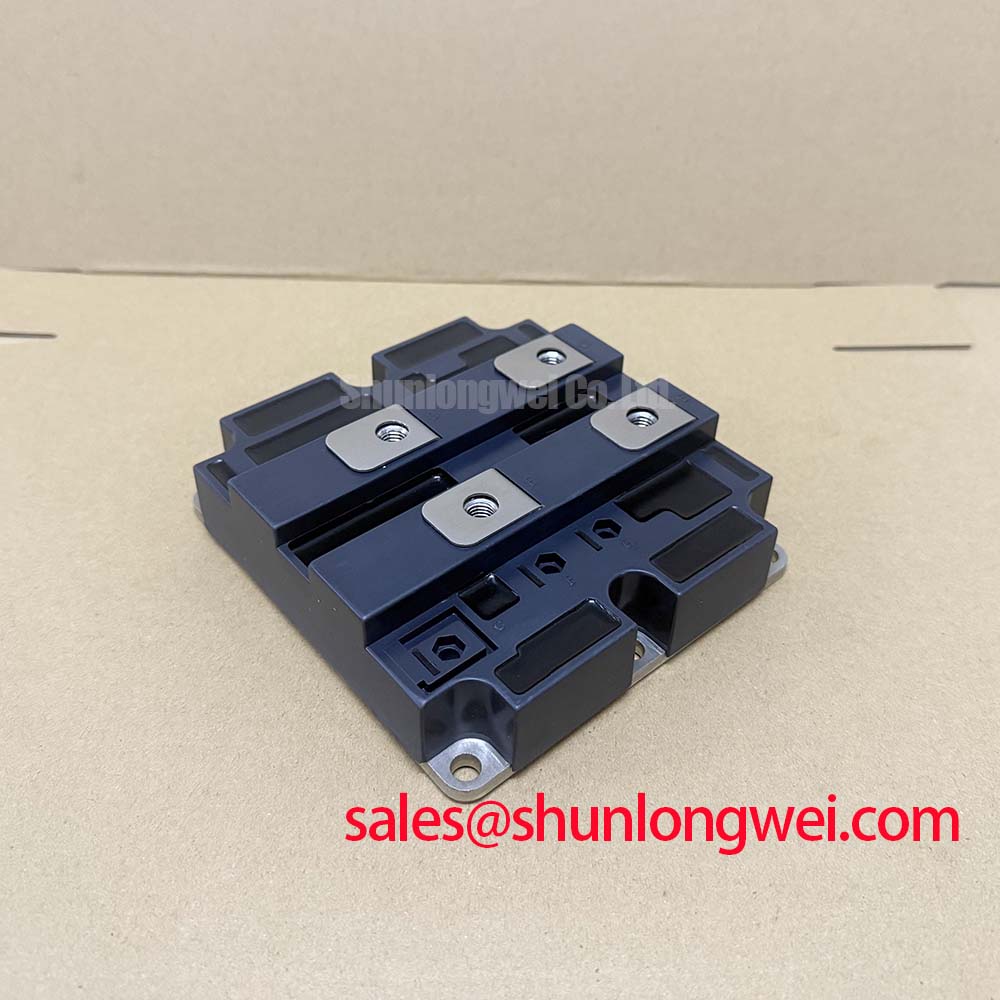

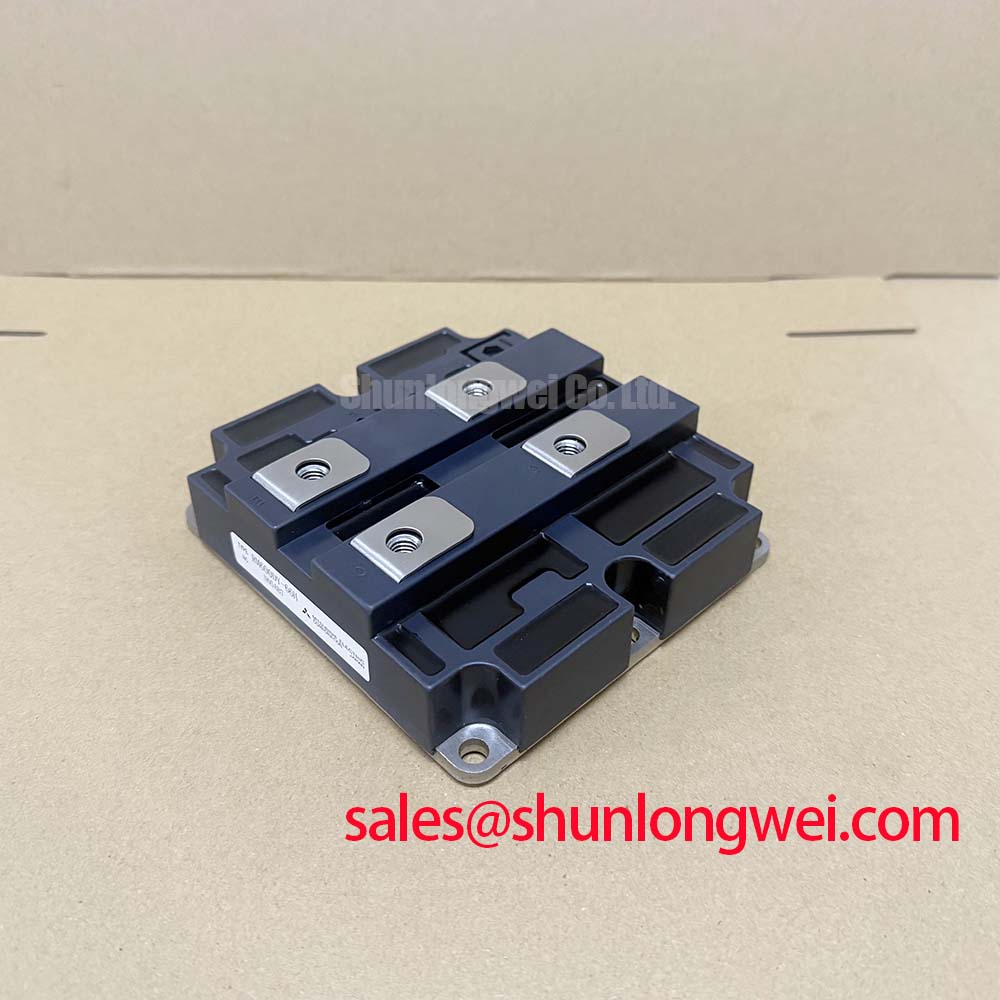

The Mitsubishi RM600DY-66H is a high-voltage IGBT module designed for exceptional thermal stability and long-term reliability in demanding power conversion systems. With core specifications of 3300V | 600A | Rth(j-c) 0.025°C/W, this device offers superior heat dissipation and robust electrical isolation. Its key benefits include enhanced system lifetime and a simplified thermal design path. The module's very low thermal resistance is a critical factor, enabling designers to manage junction temperatures more effectively, which directly mitigates thermal stress and improves operational integrity in high-current applications.
Applications Forged in High-Stress Power Conversion
The robust electrical and thermal characteristics of the Mitsubishi RM600DY-66H make it a suitable component for high-power, high-voltage applications where consistent performance is essential. Its design focuses on managing the significant thermal loads generated during high-current switching operations, a common challenge in modern power electronics. The module's architecture supports the long-term operational demands of industrial infrastructure, contributing to reduced system downtime and maintenance cycles.
- Medium-Voltage Industrial Drives: Its 3300V breakdown voltage provides a significant safety margin for motor control systems connected to higher voltage industrial mains, such as variable frequency drives (VFDs) and servo drives.
- Renewable Energy Inverters: Well-suited for the central inverter stages in utility-scale solar and wind power generation, where high power handling and reliability are fundamental to grid stability and energy yield.
- Auxiliary Power Units & Power Transmission: The module's high isolation voltage and current capacity are valuable in auxiliary traction converters for rail systems and in components for flexible AC transmission systems (FACTS).
For medium-voltage drives (up to ~1300V DC link) demanding robust thermal margins, the RM600DY-66H's 3300V rating offers superior reliability over 1700V alternatives.
A Closer Look at Thermal Pathway Engineering
A primary engineering focus of the RM600DY-66H is the optimization of its thermal pathway. Effective heat removal is paramount to the reliability of any power semiconductor, and this module's design directly addresses this. What defines the RM600DY-66H's thermal performance? Its low junction-to-case thermal resistance (0.025 °C/W). This metric is analogous to the width of a pipe for heat flow; a lower value signifies a wider, less restrictive path for thermal energy to travel from the active silicon chip to the heatsink. This efficiency in heat transfer is crucial for maintaining the junction temperature within safe operating limits, especially under continuous high-load conditions.
Furthermore, the module's high isolation voltage rating of 6000V (Viso) contributes to its overall robustness. How does high isolation voltage enhance safety? The 6000V Viso rating prevents insulation breakdown in high-voltage systems. This high level of electrical insulation between the live terminals and the baseplate not only fulfills stringent safety standards but also enhances the module's resilience against transient overvoltages that can occur in industrial power grids. For a comprehensive understanding of how thermal resistance impacts performance, engineers can explore resources on unlocking IGBT thermal performance.
Strategic Advantages in Electrification and Industrial Automation
The push towards higher efficiency and greater power density in industrial and renewable energy sectors creates a demand for power modules like the RM600DY-66H. As industries upgrade their infrastructure, the need for components that can handle more power within existing physical footprints becomes critical. This module supports that trend by enabling the design of more compact, yet more powerful, inverters and converters. Its high voltage rating aligns with the move toward higher DC bus voltages in systems like large-scale solar inverters and industrial drives, a strategy employed to reduce I²R losses in cabling and improve overall system efficiency.
RM600DY-66H Key Performance Specifications
The following parameters are critical for system design and integration.
| Parameter | Symbol | Conditions | Value |
|---|---|---|---|
| Absolute Maximum Ratings (Tj = 25°C unless otherwise noted) | |||
| Collector-Emitter Voltage | VCES | - | 3300V |
| Collector Current (DC) | IC | TC = 95°C | 600A |
| Collector Current (Pulsed) | ICM | - | 1200A |
| Collector Power Dissipation | PC | TC = 25°C | 5000W |
| Isolation Voltage | Viso | AC, 1 minute | 6000Vrms |
| Electrical Characteristics (Tj = 25°C unless otherwise noted) | |||
| Collector-Emitter Saturation Voltage | VCE(sat) | IC = 600A, VGE = 15V | 3.5V (Typ) / 4.4V (Max) |
| Gate-Emitter Leakage Current | IGES | VGE = ±20V | 0.5µA |
| Thermal Characteristics | |||
| Thermal Resistance (Junction to Case, IGBT) | Rth(j-c) | - | 0.025°C/W |
| Thermal Resistance (Junction to Case, Diode) | Rth(j-c) | - | 0.045°C/W |
| Operating Junction Temperature | Tj | - | -40 to +150°C |
Engineering Considerations for System Integration
When incorporating the RM600DY-66H into a power system, its datasheet provides the necessary data for informed design decisions. As a distributor, our role is to present this information to support your evaluation process. The choice of a power module depends on a holistic analysis of the application's electrical, thermal, and mechanical requirements.
- Thermal Design: The specified Rth(j-c) of 0.025°C/W is a key input for heatsink selection and cooling system design. Accurate thermal modeling is essential to ensure the junction temperature remains below the 150°C maximum during operation.
- Gate Drive Circuitry: A VGE(sat) of 15V is specified for achieving the low VCE(sat). The gate driver circuit must be designed to provide a stable, clean voltage pulse to ensure efficient and reliable switching. For further reading, consult this guide on robust IGBT gate drive design.
- System Voltage: The 3300V VCES rating makes this module suitable for systems with high DC link voltages, providing a necessary derating factor for reliability against voltage transients.
For systems that may require a different internal configuration, such as a chopper, the CM800HB-66H from a similar voltage class by Mitsubishi Electric represents an alternative topology for evaluation.
Frequently Asked Questions
1. What is the primary advantage of the RM600DY-66H's 3300V rating in an application with a 1000V DC bus?
A 3300V rating provides a substantial voltage safety margin, which is critical for long-term reliability. In power systems, transient overvoltages caused by switching events or grid disturbances are common. A higher VCES rating ensures the device can withstand these transients without degradation or failure, a key consideration detailed in guides on IGBT failure analysis.
2. How critical is the 6000V isolation voltage (Viso) for system design?
The 6000Vrms isolation is a fundamental safety feature, particularly in medium-voltage drives where high potentials exist between the power circuit and grounded system components. This high Viso rating ensures compliance with industrial safety regulations (like IEC standards) and protects personnel and control electronics from high voltage exposure, making it a non-negotiable parameter for such applications.
For technical inquiries or to request a quote based on your project requirements, please contact our sales team. We can provide the necessary documentation to help you evaluate the RM600DY-66H for your specific application.
