SKKH330-14E Thermal-Electrical Optimization: Input Protection and Mounting

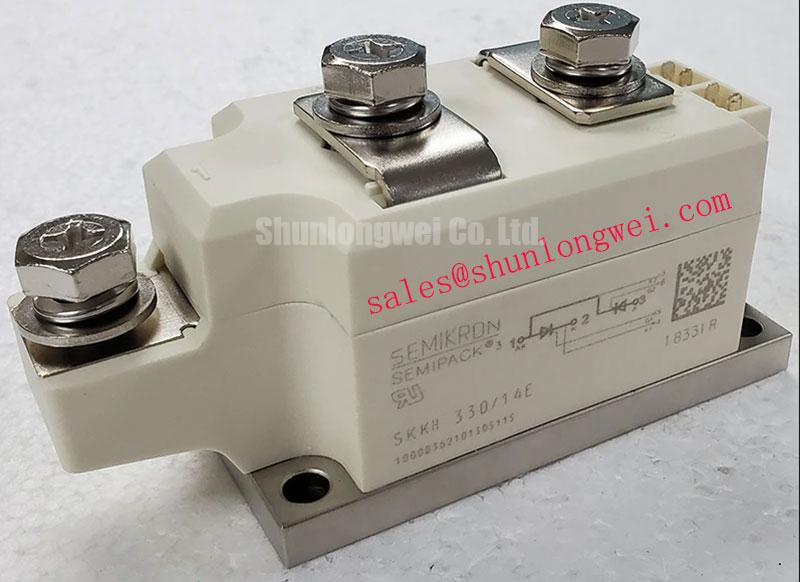

With the power isolated and stored energy discharged, compare the installed module’s terminal markings, baseplate footprint and nameplate with the maintenance record before disconnecting its leads. SKKH330-14E is identified as a Semikron Semipack thyristor/diode module. Confirm its voltage and current ratings against the original Semikron datasheet before using them for circuit protection or thermal design. The model designation alone is not a substitute for a verified voltage rating, current rating or connection diagram.
For a medium-frequency induction melting or hardening furnace, compatibility depends on the position the module occupies in the power circuit. Trace the AC input, rectifier, DC link and load connections on the equipment schematic before assessing surge protection. As a Design Consideration, coordinate upstream surge protection, metal oxide varistors and any RC damping with the measured supply environment and the verified thyristor limits. A varistor’s nominal voltage does not, by itself, establish the voltage that reaches the module during a surge.
Check the heatsink contact surface, mounting hardware and power terminals against the module installation instructions. The applicable tightening torque must come from the manufacturer’s documentation for the actual module and terminal hardware; it should not be inferred from the Semipack family name. Semikron Danfoss’s SEMIPACK thyristor and diode module range provides product-line context, not a substitute for the individual device’s mounting instructions.
Transient Dynamics: Surge-Current Assessment for SKKH330-14E
When investigating an input fault, retrieve the exact device’s non-repetitive surge-current rating, its specified pulse duration and its initial junction-temperature condition before comparing it with a recorded fault waveform. A sinusoidal half-cycle surge rating cannot be treated as a repetitive operating-current allowance. The temperature reached before the event, the fault duration and the interval before reverse voltage is reapplied all affect whether a datasheet comparison is meaningful.
As an Engineering Recommendation, compare oscilloscope or fault-recorder evidence with the published surge curves under their stated test conditions. If the waveform or starting temperature is unknown, do not declare a safe margin from a peak-current reading alone. Inspect the gate-drive path and its return routing where switching behavior is relevant, but establish the module’s actual terminal functions from its connection diagram before probing or reconnecting a driver.
A candidate such as SKKT 250/14E belongs in a replacement evaluation only after its circuit arrangement, electrical limits, footprint, terminal positions and cooling requirements have been compared with the installed SKKH330-14E. Similar family naming does not establish a direct replacement.
SKKH330-14E Circuit Protection: Semiconductor-Fuse Coordination
For a dead-short investigation, collect the prospective fault current at the module location and the installed semiconductor fuse’s published total-clearing characteristics. Compare its clearing I²t at the relevant voltage and fault conditions with the thyristor or diode withstand data from the verified module datasheet. Without both sets of applicable curves, a claim of type-2 coordination or damage-free clearing would be unsupported.
Follow the current path through the complete rectifier assembly rather than assessing one module in isolation. A complementary module such as SKKD81/14 may appear elsewhere in an evaluated topology, but its presence and role must be checked against the equipment schematic. Fuse location, parallel paths, cable impedance and the available short-circuit current can change the duty imposed on each device.
Bench diagnostic: Do not perform resistance or diode-mode checks until the supply is isolated and stored energy has been discharged. Once safe access is established, compare suspect terminal readings with the documented connection diagram and a known-good circuit path. An unusual reading is a reason to continue testing, not proof of a single failure cause.
SKKH330-14E Circuit Protection: Voltage Sharing and RC Damping
Review the installed RC network and any series reactor in the actual power schematic before changing components. As a Design Consideration, short, consistent connections can reduce parasitic effects that contribute to voltage imbalance and switching overshoot. Snubber and reactor values remain system-determined: engineers should verify device voltage and current waveforms during switching and compare the observed peaks with the confirmed module limits.
Where more than one device shares blocking voltage, measure across the relevant devices under controlled test conditions rather than assuming that static resistance measurements predict dynamic sharing. Gate timing, wiring layout and the existing damping network can affect the result. Semikron Danfoss’s bare-die technology information is useful background, but bare-die characteristics must not be assigned to this packaged module without its own datasheet.
