Fuji 2MBI400U2B-060: Technical Review of a High-Current 600V IGBT Module

Product Overview and Key Specifications

Engineered for High-Frequency Switching and Minimal Power Loss

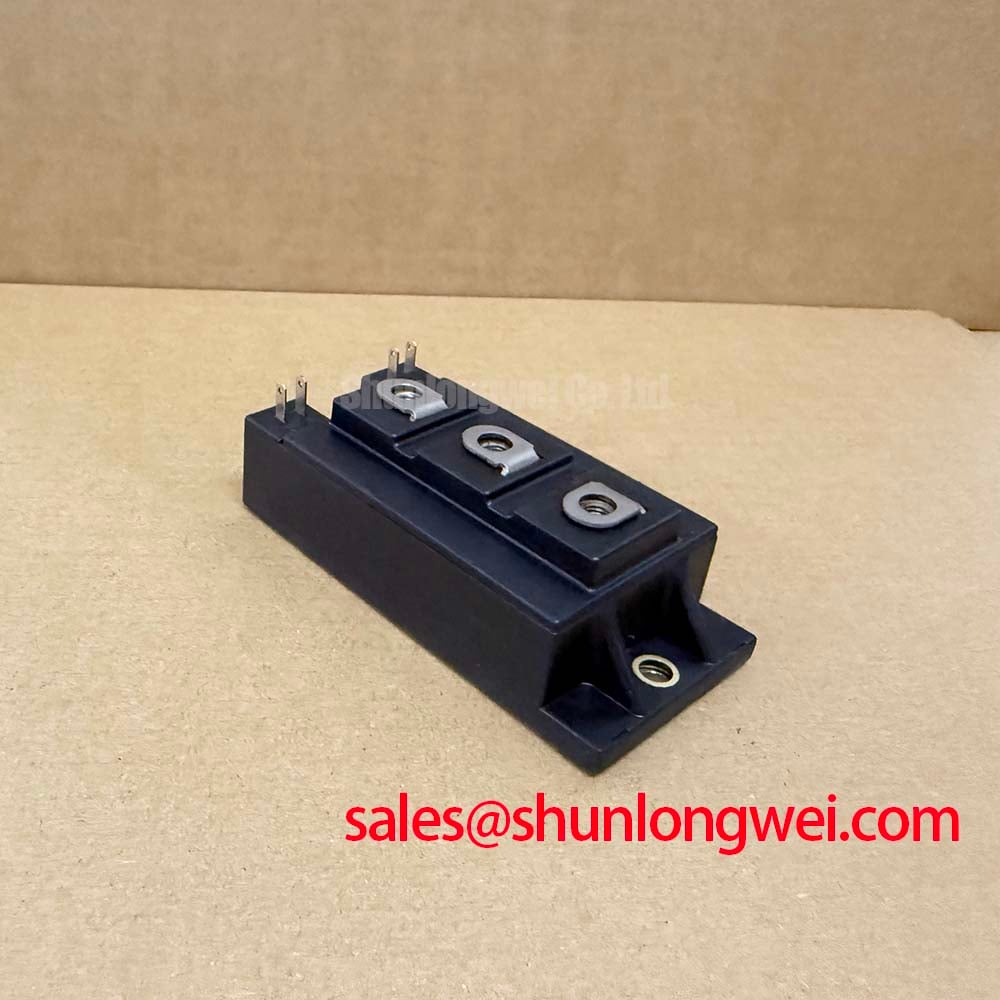

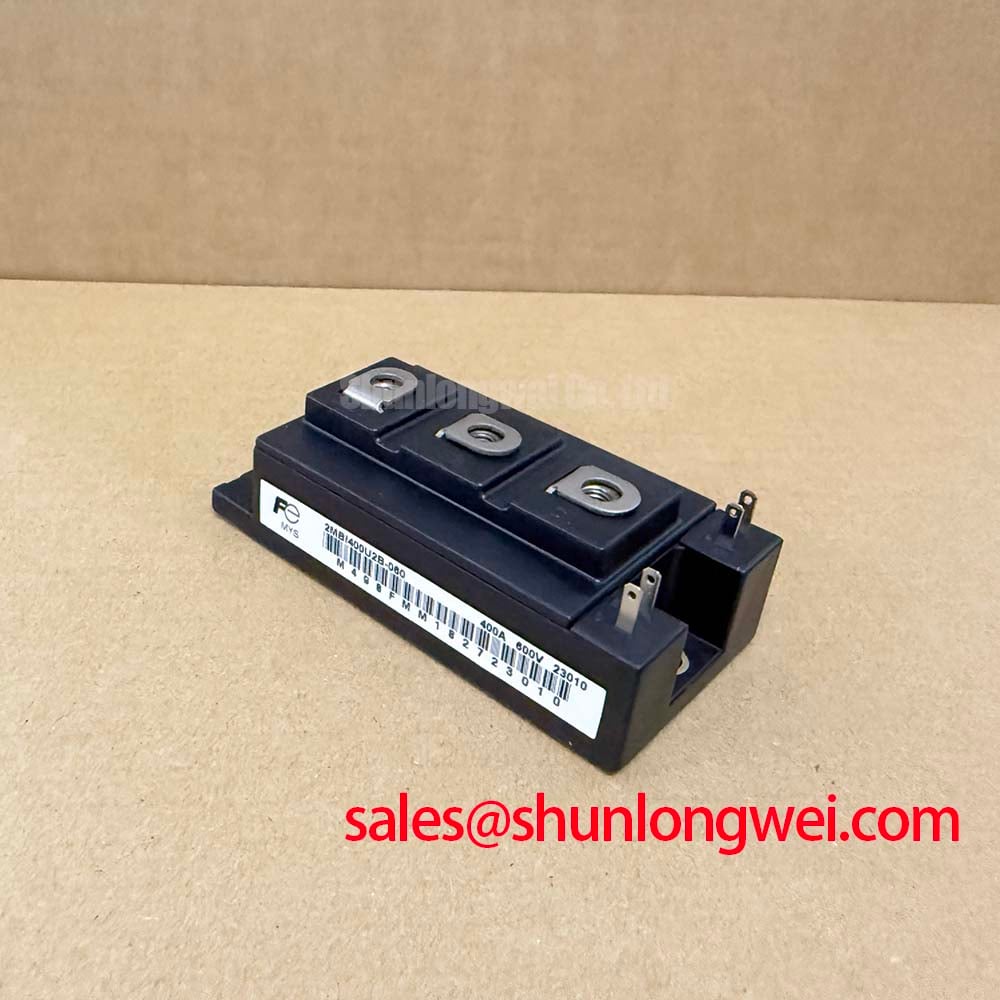

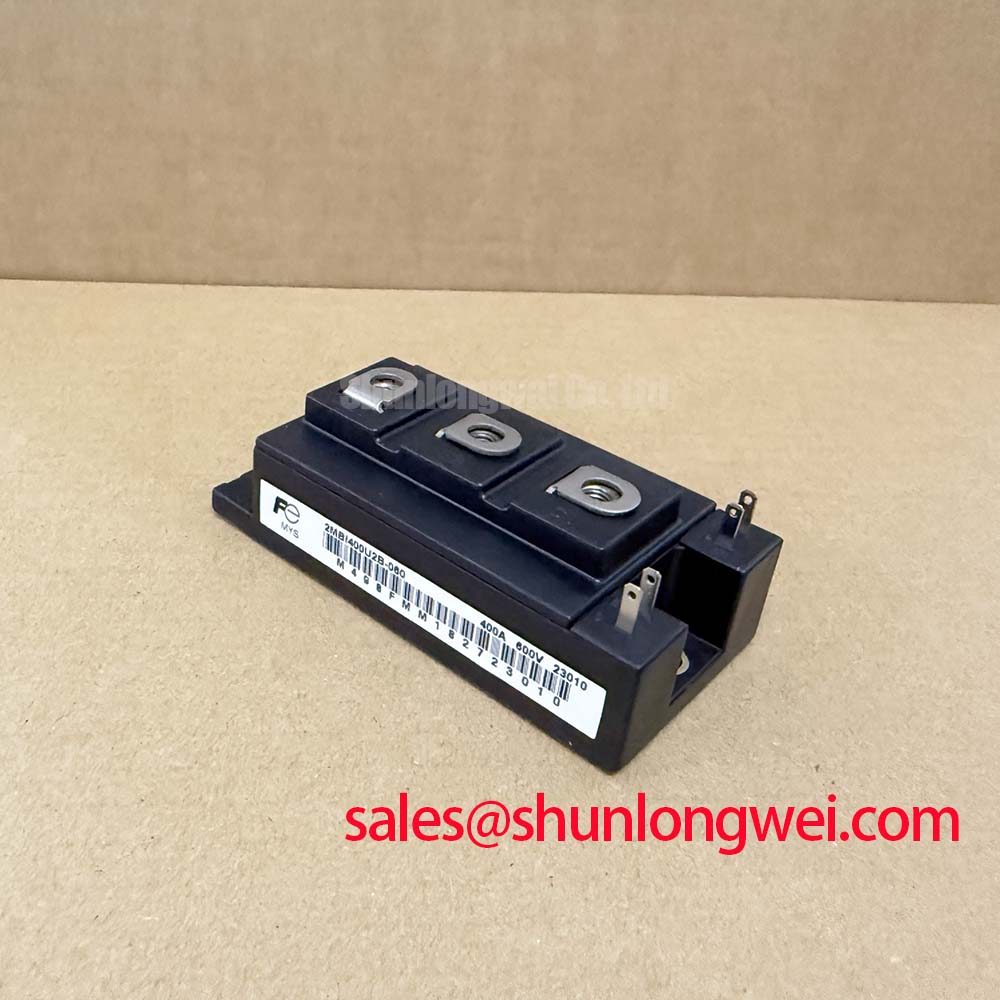

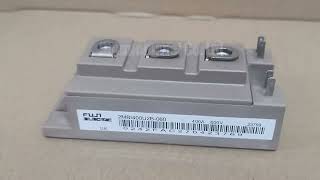

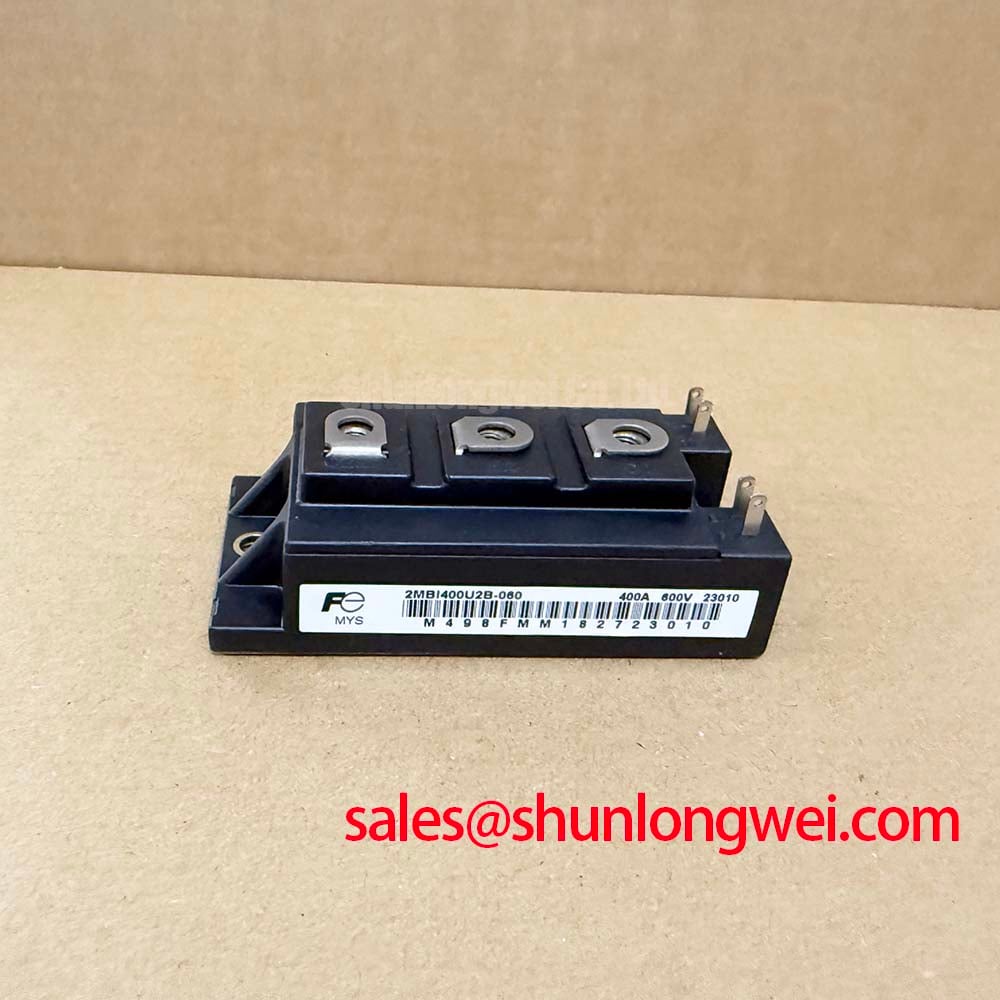

The Fuji Electric 2MBI400U2B-060 is a dual IGBT module designed to provide a robust and highly efficient power switching solution for demanding industrial applications. This component delivers superior performance in high-frequency power conversion systems by minimizing both conduction and switching losses. With key specifications of 600V | 400A | Vce(sat) 2.2V (typ.), this module offers significant engineering advantages, including reduced thermal load and enhanced system reliability. It directly addresses the challenge of maximizing efficiency in high-power inverters by featuring a low saturation voltage and fast reverse recovery time. For high-power systems requiring robust thermal performance and low conduction losses, this 400A module presents a technically sound design choice.

Application Scenarios & Value

Achieving System-Level Benefits in High-Current Power Conversion

The performance characteristics of the 2MBI400U2B-060 make it a prime candidate for applications where efficiency and reliability are critical operational parameters. Its ability to handle 400A of continuous current at a 600V rating allows for its deployment in high-power systems. The module's design, which emphasizes low power dissipation, provides tangible benefits at the system level.

• High-Power Inverters and Converters: In large-scale motor drives and Variable Frequency Drives (VFDs), the low Vce(sat) directly reduces conduction losses, leading to higher overall inverter efficiency and potentially smaller heatsink requirements.
• Uninterruptible Power Supplies (UPS): The module's high reliability and efficient operation are essential for UPS systems, ensuring minimal energy waste during standby and dependable power delivery during outages.
• Industrial Welding Equipment: The fast switching capabilities and high current handling are well-suited for the pulsed power demands of modern welding power supplies, enabling precise control and stable arc performance.

By integrating this module, engineers can achieve higher power density, improve the thermal management of their designs, and increase the long-term reliability of the end equipment. For systems that operate at higher voltage classes, the 2MBI600VE-120 provides a 1200V alternative within the Fuji Electric portfolio.

Key Parameter Overview

Decoding the Specifications for Efficient and Reliable Operation

The technical specifications of the 2MBI400U2B-060 are foundational to its performance. The parameters below have been selected to provide engineers with the data needed for initial design evaluation and thermal modeling. Understanding these values is the first step in leveraging the module's full capabilities.

Download the 2MBI400U2B-060 datasheet for detailed specifications and performance curves.

The Collector-Emitter Saturation Voltage (Vce(sat)) is a critical parameter for efficiency. A typical value of 2.2V at the full rated current of 400A is noteworthy. Think of Vce(sat) as the electrical "friction" the device exhibits when it's fully on. Just as low friction in a mechanical system saves energy, a low Vce(sat) directly reduces the power lost as heat during the conduction phase, a dominant loss factor in motor drives and UPS systems. Furthermore, the low thermal resistance (Rth(j-c)) of 0.078°C/W ensures an efficient path for heat to be extracted from the silicon chip to the module's baseplate, which is a key factor in any robust IGBT thermal performance design.

Technical Deep Dive

Balancing Conduction and Switching Performance

A key challenge in IGBT design is managing the inherent trade-off between conduction losses (governed by Vce(sat)) and switching losses (determined by switching speed). The Fuji Electric 2MBI400U2B-060 is engineered to strike an effective balance for applications operating in the medium to high-frequency range. While its Vce(sat) is optimized to be low, the device's internal structure and doping profiles are also tuned to ensure clean and relatively fast turn-on and turn-off transitions. This prevents excessive energy loss during the switching events, which become increasingly significant as the operating frequency rises. This balanced approach means the module avoids being a specialist for only low-frequency or only high-frequency, but instead offers a high-performance, versatile solution for the majority of industrial inverter applications.

Frequently Asked Questions (FAQ)

What is the primary advantage of the 2MBI400U2B-060 in high-current welding applications?
Its primary advantage is the combination of high current handling (400A continuous) and fast switching characteristics. This allows for precise control over the welding arc and stable power delivery, which is critical for advanced welding processes, while its robust thermal design manages the intense heat generated during operation.

How does the module's packaging contribute to its reliability?

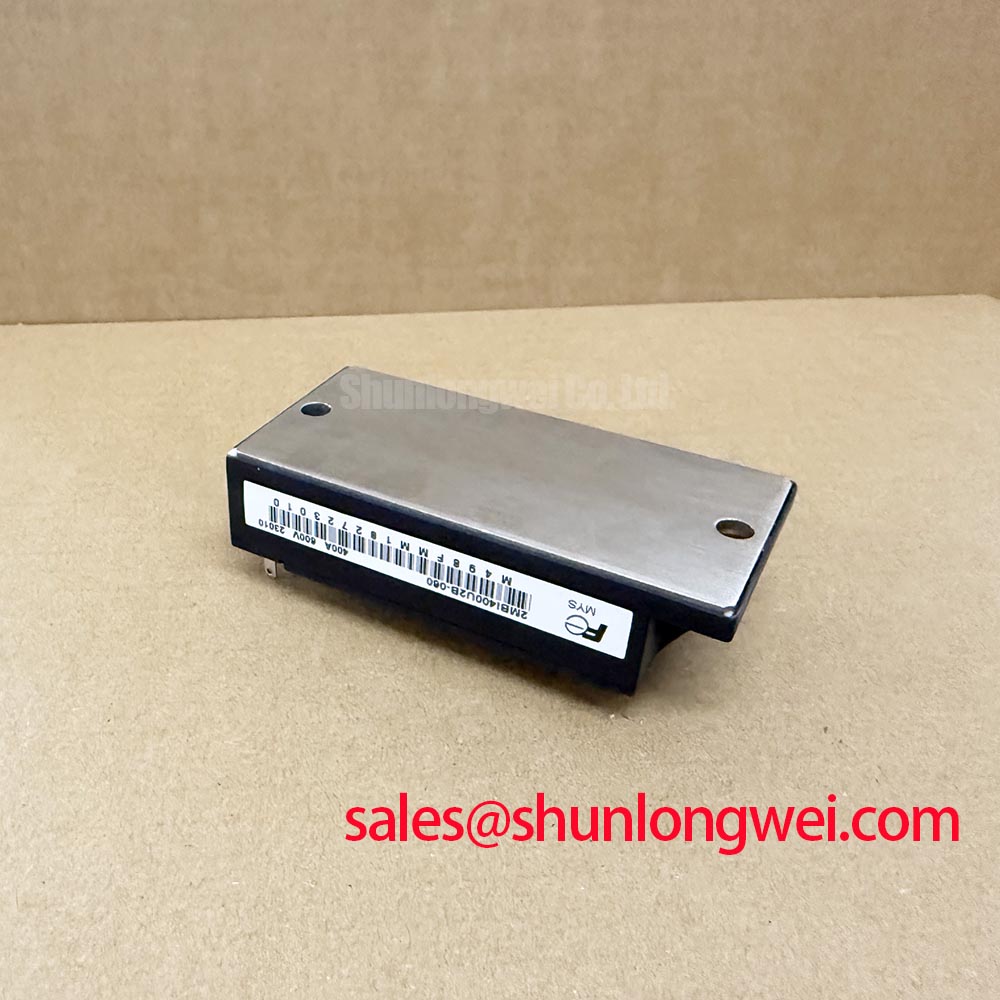

The industry-standard module package simplifies mechanical mounting and thermal interfacing with a heatsink. The isolated baseplate ensures electrical safety and simplifies system layout, while the robust terminal construction is designed to withstand the mechanical and thermal stresses common in industrial environments. For further insights, exploring resources on IGBT failure analysis can provide a broader understanding of reliability factors.

System Design and Integration Support

For engineers specifying the 2MBI400U2B-060 for new or existing designs, our team can provide access to technical documentation and application notes to facilitate a smooth integration process. Please reference the model number 2MBI400U2B-060 in your inquiry for detailed support.
