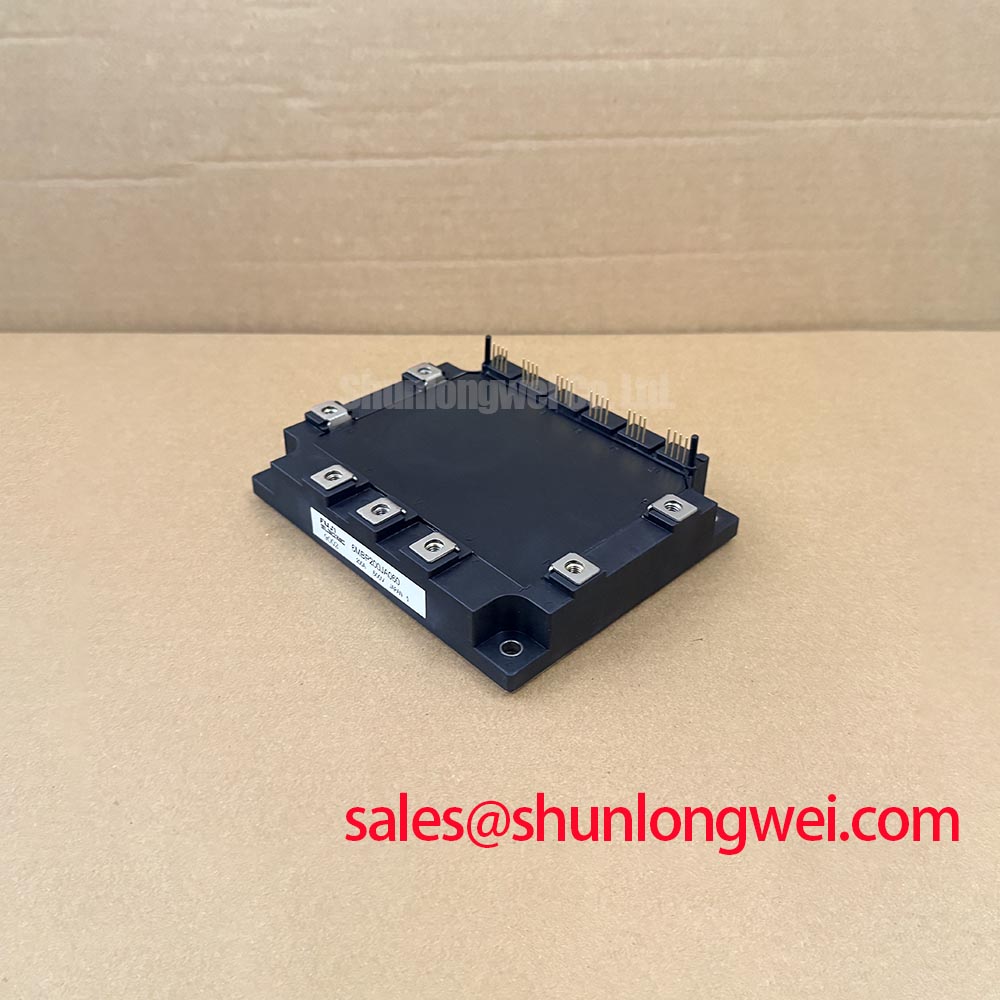

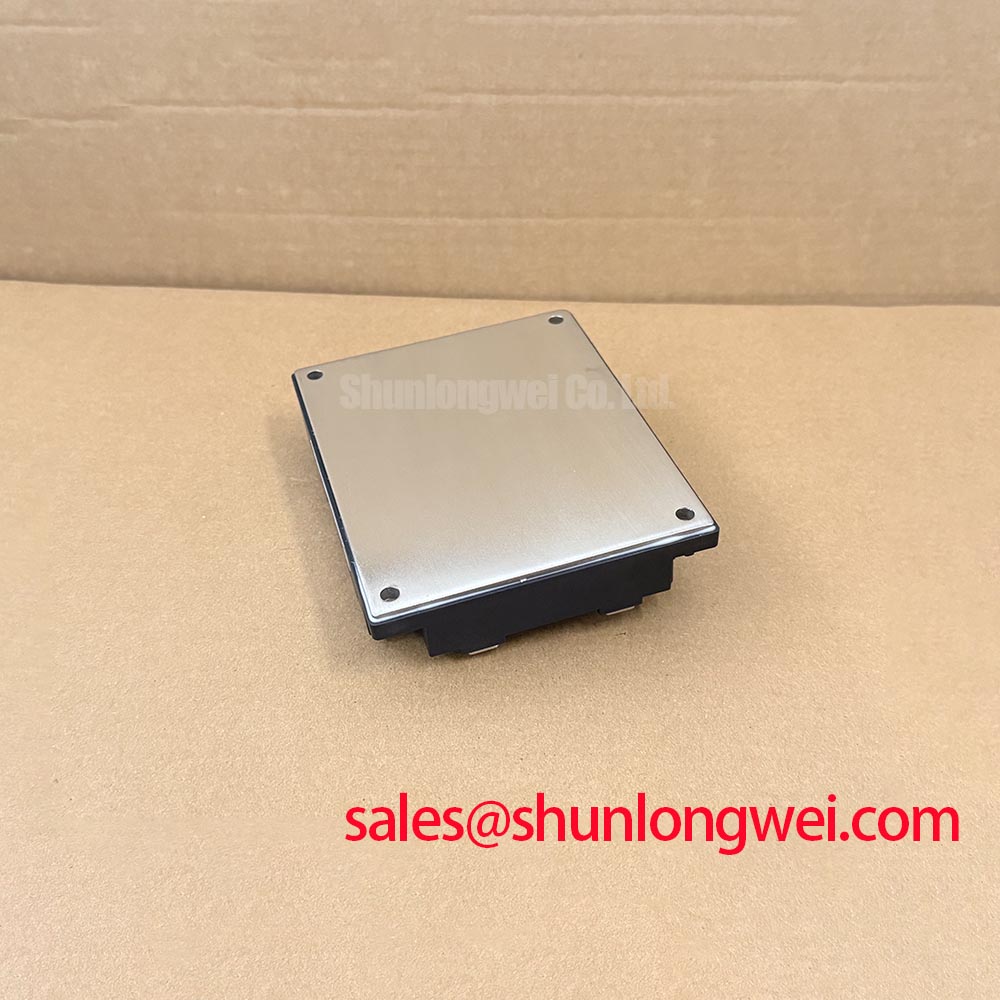

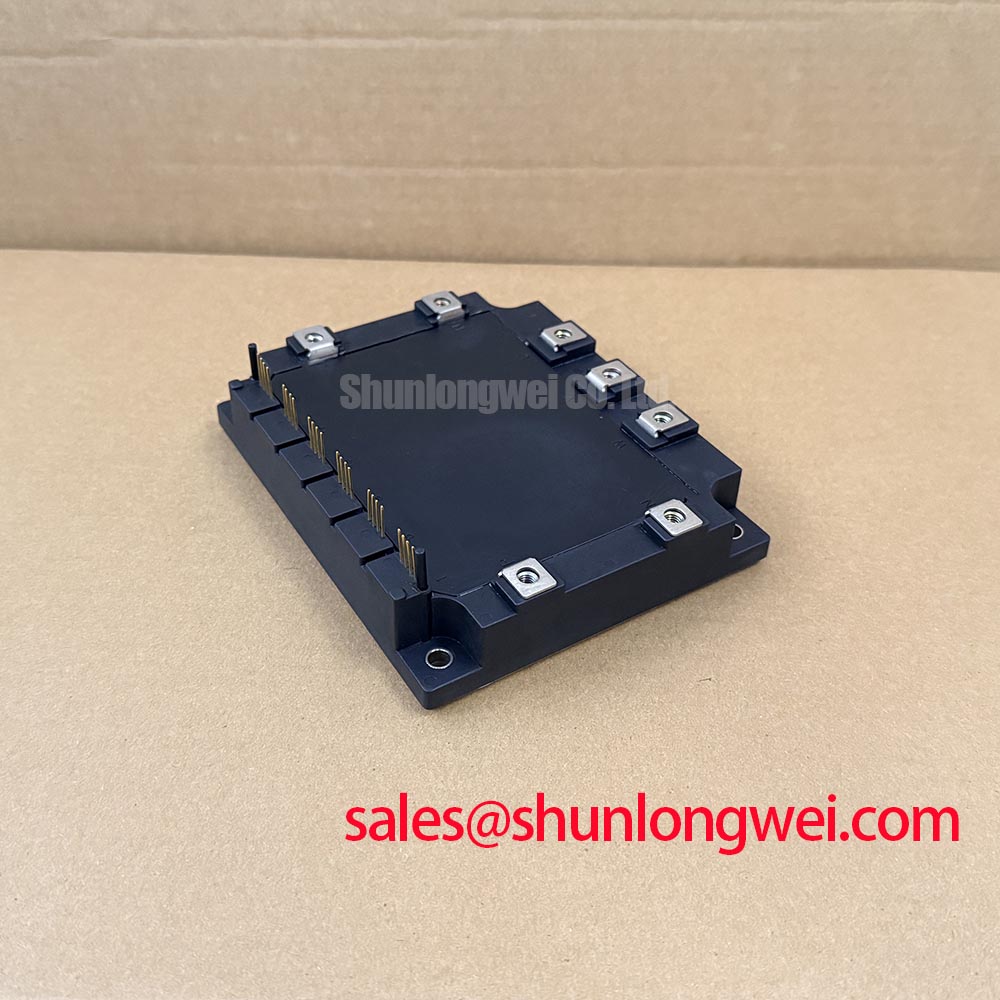

6MBP150JA060 Fuji Electric 600V 150A Intelligent Power Module (IPM)
The 6MBP150JA060 from Fuji Electric is an integrated Intelligent Power Module (IPM) combining a six-pack 3-phase inverter topology with built-in drive circuits and comprehensive fault protection. Operating at a collector-emitter voltage of 600V and a continuous collector current of 150A, this power module streamlines high-power inverter architecture by replacing discrete gate drive circuitry with pre-optimized internal drivers. Designed to enhance system reliability in compact enclosures, it incorporates real-time overcurrent, short-circuit, control supply undervoltage, and overtemperature monitoring. What is the primary benefit of the 6MBP150JA060 integrated driver topology? It minimizes stray inductance and simplifies gate drive layout. For 400V AC industrial motor drives requiring integrated protection, the 600V 150A 6MBP150JA060 intelligent power module is the optimal choice.
Key Parameter Overview
Decoding Core Specs for High-Density Motion Control
Below is the essential technical breakdown for the 6MBP150JA060 power semiconductor module, highlighting key electrical boundaries and thermal characteristics required for power stage evaluation.
| Parameter | Symbol | Rating / Value | Engineering Context |
|---|---|---|---|
| Collector-Emitter Voltage | VCES | 600V | Maximum blocking voltage for 200V–400V AC line input systems |
| Continuous Collector Current | IC | 150A (at Tc=25°C) | Sustained current capability per IGBT arm in continuous operation |
| Saturation Voltage (Typ) | VCE(sat) | 2.0V (at IC=150A, Tj=25°C) | Low conduction loss profile maximizing overall converter efficiency |
| Isolation Voltage | Viso | 2500V AC (1 minute) | Ensures galvanically isolated control signals from high-voltage DC bus |
| Short-Circuit Protection Trip Level | IOC | Integrated Internal Sensing | Immediate gate shutdown during load-side short circuit condition |
| Junction Temperature Range | Tj | -20°C to +150°C | Thermal operating window for demanding industrial environments |
Download the 6MBP150JA060 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Optimizing System Efficiency in Industrial Motor Drives
Engineers designing high-performance Variable Frequency Drives (VFDs) and servo drive system units often face the challenge of board space limitations combined with electrical noise coupling into vulnerable gate signals. Traditional discrete designs require complex layout considerations for separate optocouplers, driver ICs, and desaturation protection networks. The 6MBP150JA060 resolves these design friction points by integrating six IGBT chips and their corresponding freewheeling diodes alongside optimized logic interface drivers into a single compact housing.
In heavy-duty industrial automation applications—such as compressor motor inverters, HVAC fan controls, and automated conveyor systems—high starting torque induces significant current surges. The module handles transient overload stress reliably while keeping thermal dissipation manageable. By managing power losses effectively, designers can opt for smaller heatsinks, directly reducing system weight and total cost of ownership. For a complete decision framework when choosing between module types, review our strategic guide on IPM vs. discrete IGBT design.
When selecting components for broader motor drive power ratings, designers may also evaluate related offers within the product family. For lower-current 3-phase inverter designs operating on similar DC bus levels, the related 6MBP150RA060 provides an alternative pin-compatible package layout, whereas two-pack discrete IGBT setups like the 2MBI200VA-060 cater to custom half-bridge modular topologies demanding higher continuous current output.
Technical Deep Dive
Built-In Protection Circuitry and Integrated Drive Architecture
The defining structural benefit of the 6MBP150JA060 lies in its predriver stage. In high-power switching applications, high dv/dt switching rates generate electromagnetic interference (EMI) that can cause parasitic gate turn-on if signal traces are too long or poorly shielded. The module’s internal gate driver acts much like an onboard conductor in an orchestra—ensuring precise, tightly synchronized gate firing without permitting external high-frequency noise to corrupt switching timing.
Furthermore, internal protection logic continuously monitors the status of the upper and lower arm IGBT switches. Should an accidental phase-to-phase short occurs or the DC-link bus voltage spike beyond safe limits, the internal logic executes a controlled soft turn-off sequence. This automated safety mechanism functions like a high-speed emergency safety valve, clamping collector currents within microseconds before destructive thermal runaway occurs. To explore structural causes of field failures in power electronics, read our comprehensive article on IGBT failure analysis and protection.
Thermal management is further simplified by the module's substrate assembly, which delivers predictable heat transfer across the baseplate. Engineers looking to calculate thermal budgets under varying switching frequencies can reference our engineering breakdown of thermal management and module selection. To review advanced semiconductor topologies, consult the Fuji Electric power module technologies standard documentation.
Frequently Asked Questions
Engineering Insights and Integration Considerations
How does the integrated gate drive in the 6MBP150JA060 improve system noise immunity?
By matching gate resistors and driver circuits inside the module directly adjacent to the IGBT dies, parasitic lead inductance is drastically reduced. This internal matching minimizes gate ringing, prevents false dv/dt turn-on, and isolates control logic signals from high-current power switching noise.
What protection functions are natively integrated into the 6MBP150JA060 IPM?
The module features self-contained protection against overcurrent (OC), short-circuit (SC), control supply under-voltage (UV), and overtemperature (OT). Upon detecting a fault, the module safely shuts down gate drive signals and outputs an external alarm fault signal (FO) to the system controller.
What is the recommended isolation rating when mounting the 6MBP150JA060 to a heatsink?
The module provides an internal isolation rating of 2500V AC for 1 minute between the active silicon terminals and the copper baseplate. Standard thermal interface materials (TIM) or thermal pads should be used with uniform screw torque to maintain low thermal resistance without damaging the substrate.
How does VCE(sat) voltage behavior affect thermal dissipation in continuous 150A inverter operation?
With a typical VCE(sat) of 2.0V at 150A, conduction losses per switch remain predictable. Operating within the recommended Safe Operating Area (SOA) ensures junction temperatures remain well within the -20°C to +150°C range under typical switching frequency conditions.
Next-generation inverter platforms requiring optimized form factors and reduced engineering turnaround continue to leverage integrated IPM topologies to meet strict energy standards worldwide.
