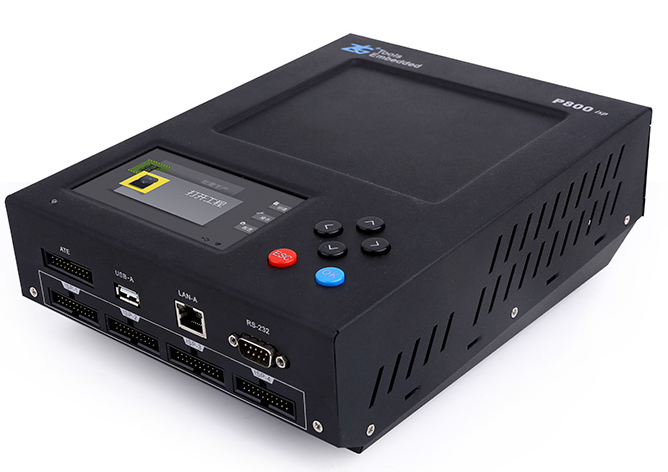

Burner

What an IC Burner Is and Its Industry Significance

An IC burner, technically designated as a device programmer, chip writer, or PROM programmer, is an essential hardware tool engineered to write binary machine code, configuration data, and non-volatile firmware into programmable integrated circuits. In contemporary electronics manufacturing and embedded hardware development, the term “burning” originates from early semiconductor history when Programmable Read-Only Memory (PROM) chips utilized microscopic fusible links that were permanently opened, or electrically “burned,” by high-current pulses to record binary states. While modern integrated circuits rely predominantly on erasable and rewritable non-volatile technologies such as Floating-Gate Flash, Charge Trap Flash, and Electrically Erasable Programmable Read-Only Memory (EEPROM), the engineering terminology of “burning a chip” remains universally adopted across the electronics industry.

The primary function of a burner is to translate compiled software files, typically formatted as Intel HEX, Motorola S-Record, or raw binary (.bin) files, into precise electrical signals and voltage pulses that modify the internal state of memory cells within target silicon. These target devices span a vast spectrum of semiconductor categories, including single-chip microcontrollers (MCUs), digital signal processors (DSPs), complex programmable logic devices (CPLDs), field-programmable gate arrays (FPGAs), Serial Peripheral Interface (SPI) NOR/NAND Flash chips, and system BIOS/UEFI ROMs. Without device programmers, solid-state microchips remain unconfigured silicon matrices incapable of executing logic, driving peripheral hardware, or responding to external stimuli.

In modern industrial workflows, the device programmer stands as a critical bridge between firmware engineering and physical manufacturing. During the research and development phase, engineers utilize universal benchtop burners to rapidly prototype, reflash, and validate code revisions on bare chips or development boards. In high-volume electronics assembly, automated gang burners program thousands of microchips per hour prior to surface mount technology (SMT) placement, or execute in-system programming (ISP) directly on fully assembled printed circuit boards (PCBs). Furthermore, device burners play an indispensable role in lifecycle maintenance, enabling technicians to upgrade firmware in industrial controllers, recover corrupted BIOS chips on telecommunications motherboards, and inject cryptographic security keys into secure microcontroller elements during final product provisioning.

Working Principle and Hardware Architecture

The operational foundation of an IC burner centers on the generation and control of precise electrical wave sequences, known as programming algorithms, dictated by semiconductor manufacturers. At the physical silicon level, non-volatile memory cells store binary data by trapping electrons within an electrically isolated floating gate or silicon nitride charge-trapping layer. To transition a memory cell from an unprogrammed logic state (typically binary 1) to a programmed state (binary 0), the burner applies a controlled programming voltage (often designated as V_PP) across the control gate while maintaining specific biasing on the source and drain terminals. This creates a high-intensity electric field that forces electrons across an ultra-thin dielectric oxide barrier via Fowler-Nordheim tunneling or Channel Hot Electron (CHE) injection.

To orchestrate these physical mechanisms reliably across diverse chip architectures, a professional IC burner incorporates four major functional subsystems inside its hardware architecture:

• High-Speed Controller Core: A central microprocessor or FPGA that receives raw binary payloads from the host computer via USB, Ethernet, or local SD card storage. The controller decodes the firmware file, buffers data in high-speed internal SRAM, and executes the target chip’s strict timing diagrams with sub-microsecond precision.
• Universal Pin-Driver Matrix: An array of reconfigurable digital-to-analog pin drivers. Each pin on the programming socket can be independently configured via software switching to serve as a digital input, digital output, system clock (CLK), ground reference (GND), regulated core power supply (V_DD / V_CC), or elevated programming voltage source (V_PP).
• Precision Programmable Power Supplies: Independent DC-DC converter stages capable of delivering adjustable voltages ranging from ultra-low logic levels (such as 1.2 V, 1.8 V, or 2.5 V for advanced microcontrollers) up to legacy high-voltage levels (such as 12.0 V or 13.5 V for classic EPROMs and high-voltage serial programming modes), all equipped with microsecond-level overcurrent and overvoltage shutdown circuits.
• Physical Device Interface: A Zero Insertion Force (ZIF) socket, specialized surface-mount adapter (BGA, QFN, QFP, TSSOP), or In-Circuit Serial Programming (ICSP/ISP) header that establishes low-resistance ohmic contact with the device under test (DUT).

The standard execution workflow for any burning operation follows a deterministic four-phase cycle: Identification, Erase/Blank Check, Program, and Verification. Initially, the burner reads the target device’s hardcoded Silicon Signature ID over standard serial or parallel interfaces (such as JTAG IEEE 1149.1, Serial Wire Debug (SWD), SPI, I²C, or UART) to verify correct chip insertion and orientation. Next, the burner executes a block or chip erase cycle to discharge floating gates, immediately followed by a blank check to verify that all memory addresses read as unprogrammed logic high. During the programming phase, data packets are clocked into the device buffer and latched into non-volatile arrays under strict clock pulses (t_prog). Finally, during the verification phase, the burner reads back the entire memory array under marginal supply voltage boundaries (V_DD(min) and V_DD(max)) and compares the resulting data stream against the original buffer checksum or Cyclic Redundancy Check (CRC-32) to guarantee zero bit errors.

Key Features, Classification, and Technology Comparison

Device burners are categorized according to their mechanical architecture, supported IC families, and throughput capabilities. Selecting the proper programmer configuration requires balancing device versatility, operational throughput, socket changeover flexibility, and capital investment. In industrial environments, burners are divided into four primary classifications:

1. Dedicated (Special-Purpose) Burners

Dedicated burners are engineered exclusively for a single semiconductor vendor or a specific microcontroller architecture (such as Microchip PIC, Atmel AVR, or STMicroelectronics STM32). Because their internal pin routing and voltage regulators are fixed rather than universally multiplexed, their bill-of-materials cost is minimal. They provide highly optimized programming speeds and plug-and-play driver integration within proprietary Integrated Development Environments (IDEs), making them standard equipment for dedicated firmware development benches and small-scale repair stations.

2. Universal Engineering Burners

Universal burners represent the most flexible category of programming instruments. Equipped with 48-pin to 144-pin universal pin-driver architectures, every socket contact can supply logic signals, clock signals, pull-up/pull-down resistors, and programmable power rails. Universal programmers support tens of thousands of distinct chip part numbers from hundreds of semiconductor manufacturers across memory, MCU, and programmable logic domains. They are standard in R&D laboratories, multi-product manufacturing facilities, and third-party programming service centers where diverse package styles and silicon families are handled daily.

3. Mass-Production Gang Burners

Gang burners are built specifically for high-throughput factory floors. Rather than hosting a single socket, a gang programmer incorporates 4, 8, or 16 independent programming sites operating in parallel. Advanced production burners utilize true concurrent architecture: each socket is driven by dedicated local processing hardware and isolated power circuits. If an IC in Socket 3 experiences a contact failure or internal short circuit, the programmer isolates that site without interrupting or corrupting the programming cycles occurring simultaneously on Sockets 1, 2, and 4 through 16. These units are commonly integrated into automated pick-and-place programming machines.

4. In-System / In-Circuit Programmers (ISP/ICP)

In-System Programmers bypass socketed chip handling entirely by flashing target microcontrollers after they have been soldered onto the completed circuit board. Using standard test pads or header interfaces (such as 10-pin JTAG, 4-pin SWD, or custom spring-loaded pogo-pin fixtures), ISP burners program firmware during the final Functional Circuit Test (FCT) phase, eliminating the risk of physical pin damage or thermal stress during surface-mount reflow ovens.

Real-World Applications, Industrial Workflows, and Operating Precautions

Modern electronic control systems rely entirely on precision microcode executed by onboard processing units. In power conversion, motor control, and industrial automation, microcontrollers and DSPs are programmed using dedicated burners to implement sophisticated vector control, pulse-width modulation (PWM), and system protection algorithms. For instance, in three-phase inverter systems driving high-power industrial modules like the DP15H1200TO101982 intelligent power bridge, the firmware programmed into the primary MCU directly governs dead-time generation, short-circuit shutdown thresholds, and switching frequencies. Flashing unverified or corrupt binary code into such controllers can lead to shoot-through conditions, causing catastrophic component breakdown across power stages.

Similarly, in high-power transportation drives and heavy traction systems utilizing high-current switching devices such as the QM300HA-H module, microcontrollers programmed via in-system gang burners manage continuous thermal monitoring, gate-drive isolation signals, and dynamic overcurrent protection. The foundational principles of switching efficiency and energy management are documented across power electronics literature. Device burners guarantee that every control parameter, lookup table, and safe-operating limit is stored in non-volatile silicon without single-bit errors prior to system energization.

When operating IC burners in engineering and manufacturing environments, technicians must adhere to rigorous operating precautions to prevent silicon degradation, physical socket failure, and intermittent programming anomalies:

• Electrostatic Discharge (ESD) Protection: Programmable devices, especially fine-pitch CMOS microcontrollers and high-density Flash chips, exhibit extreme susceptibility to dielectric oxide breakdown from static charges. Burners must be operated within ESD-protected areas (EPAs) featuring dissipative matting, continuous grounding monitoring, and grounded wrist straps. Automated handling equipment must use static-dissipative vacuum nozzles.
• Socket Life Cycle and Contact Resistance Management: Zero Insertion Force (ZIF) sockets and surface-mount adapters (such as clamshell BGA or QFP sockets) possess finite mechanical lifespans, typically rated between 10,000 and 50,000 actuations. Over time, mechanical wear, solder flux residue, and pin oxidation increase contact resistance (R_contact). A contact resistance exceeding 0.5 Ω on a power or programming pin can cause localized voltage drops, leading to false “Verify Error” messages or incomplete charge injection. Sockets must be cleaned periodically with precision electronic contact cleaners and replaced at predetermined actuation milestones.
• Power Supply Decoupling and Voltage Stability: During high-speed block write operations, floating-gate programming pulses induce instantaneous current surges (dI/dt) on the V_DD and V_PP supply rails. When using in-system programming (ISP) cables, excessive ribbon cable length introduces parasitic inductance (L_cable), leading to ringing and ground bounce. ISP cable lengths should remain strictly below 20 cm, or include buffer transceivers and bypass ceramic capacitors (0.1 µF in parallel with 10 µF tantalum) directly adjacent to the target chip’s supply pins.
• Signal Integrity and Clock Termination: High-frequency programming clock lines (such as JTAG TCK or SWD SWCLK operating at 10 MHz to 50 MHz) require impedance-matched series termination resistors (typically 22 Ω to 47 Ω) to eliminate transmission line reflections that corrupt data framing during verification passes.

Engineering Selection Guidelines and Field Diagnostics

Choosing the correct IC burner for an engineering enterprise requires systematic evaluation of technical requirements, production volumes, and algorithm maintenance support. For hardware design teams and test engineers, the following criteria define an effective selection process:

• Device Support and Algorithm Updates: Ensure that the burner manufacturer actively maintains and updates their algorithm library. As semiconductor fabricators release newer silicon steppings (e.g., transitioning from 65 nm to 28 nm Flash processes), programming timing parameters (t_hold, t_setup, V_PP amplitude) change. Lack of software updates renders universal programmers obsolete when newer microcontrollers are integrated into new PCB designs.
• Target Voltage Range Compatibility: Verify that the burner’s pin-driver matrix natively supports ultra-low logic levels down to 1.2 V without external level-shifter boards, while maintaining the capability to generate legacy 12.0 V pulses if supporting classic OTP ROMs, high-voltage reset pins, or industrial programmable logic.
• Throughput Calculation (Units Per Hour – UPH): For production environments, calculate the actual cycle time per panel. Total programming time comprises: [Insertion Time] + [ID Check] + [Erase Time] + [Write Time] + [Verify Time] + [Removal Time]. If a high-density 1 Gb SPI Flash requires 45 seconds to flash and verify, a single-site burner yields a maximum theoretical UPH of only 80 units. Implementing an 8-socket gang burner increases the net throughput to over 600 UPH, preventing firmware burning from becoming the bottleneck of the SMT assembly line.
• Integration Interfaces for Automated Test Equipment (ATE): Industrial-grade burners should provide robust command-line interfaces (CLI), dynamic link libraries (DLLs), or LabVIEW/C# APIs, alongside physical optoisolated START, PASS, FAIL, and BUSY control signals for direct interfacing with automated pick-and-place handler arms.

In power control subsystems featuring dedicated switching circuits, such as dynamic braking choppers utilizing SKD75GAL123D modules or advanced converters based on insulated-gate bipolar transistors (IGBTs), rapid diagnostic procedures during firmware flashing prevent costly assembly line downtime. When a burner generates an execution error, technicians should consult the following structured diagnostic matrix to identify root causes and apply corrective actions:

By implementing disciplined socket maintenance schedules, maintaining ESD-safe handling procedures, and matching programmer architectures to specific production volume requirements, engineering teams can ensure high-yield firmware deployment, robust data retention in non-volatile silicon, and flawless functional performance across all embedded electronics assemblies.
