Choosing the Right Driver Board for Optimal IGBT Performance

What This Component Is and Its Industry Significance

An Insulated-Gate Bipolar Transistor (IGBT) driver board—commonly referred to as a gate driver circuit or driver module—serves as the critical electrical interface between low-voltage digital control logic and high-power semiconductor switches. While digital signal processors (DSPs), microcontrollers, and field-programmable gate arrays (FPGAs) generate low-power pulse-width modulation (PWM) commands operating at 3.3V or 5V logic levels, high-power IGBT modules require rapid, high-current pulses at controlled voltage potentials (typically +15V for turn-on and -5V to -15V for turn-off) to switch hundreds or thousands of amperes across high bus voltages. The gate driver board transforms these sensitive logic signals into robust gate-drive currents while maintaining galvanic isolation between the lethal high-voltage power stage and sensitive digital controllers.

In modern industrial systems, power electronics infrastructure relies on the precise coordination of switching states. If an IGBT is commanded to turn on without sufficient gate current, it will linger in its linear active region, resulting in massive instantaneous power dissipation and subsequent thermal destruction. Conversely, if an IGBT turns off too abruptly without proper gate impedance control, the rapid rate of current collapse (di/dt) interacts with parasitic bus inductances, generating severe overvoltage transients that can exceed the collector-emitter breakdown voltage (V_CES). The gate driver board manages these physical dynamics by regulating switching speed, synchronizing complementary timing, and implementing safety mechanisms.

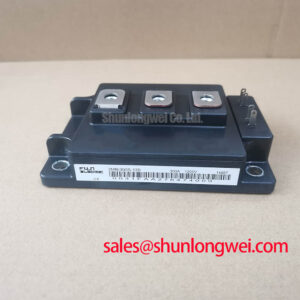

Different driver boards produce fundamentally different operational characteristics when connected to the exact same IGBT module. Variations in gate drive impedance, peak source and sink currents, internal propagation delays, and active protection circuits directly influence total system efficiency, electromagnetic interference (EMI) profiles, and thermal performance. In high-efficiency systems using modules such as the DP15H1200TO101982, selecting a properly matched driver board prevents excessive switching losses, avoids unnecessary thermal derating, and ensures that the power semiconductor operates within its specified Safe Operating Area (SOA) during both continuous operation and transient fault states.

Beyond signal amplification, modern driver boards solve severe industrial reliability challenges. They incorporate desaturation (DESAT) detection to mitigate short-circuit faults within microseconds, under-voltage lockout (UVLO) to prevent driving gates under insufficient gate voltage, and active Miller clamping to suppress parasitic turn-on events caused by rapid voltage shifts (dV/dt). In heavy industrial automation, renewable power generation, and transportation electrification governed by foundational power electronics principles, the driver board functions not merely as a passive peripheral, but as the central nervous system governing semiconductor reliability and operational lifespan.

Working Principle and Physical Structure

To understand how a driver board commands an IGBT, one must examine the internal physical structure of the device. The IGBT combines an insulated-gate field-effect structure (MOSFET input) with a wide base bipolar junction transistor (BJT output). The gate terminal is electrically isolated from the semiconductor substrate by a microscopic silicon dioxide (SiO₂) dielectric layer. Consequently, the IGBT functions as a voltage-controlled device with high input impedance under steady-state conditions, but it behaves as a capacitive load during dynamic switching transitions.

The switching process is governed by the charging and discharging of internal parasitic capacitances: the gate-to-emitter capacitance (C_ge) and the gate-to-collector reverse transfer capacitance (C_gc, or Miller capacitance). When the driver board initiates a turn-on cycle, its output stage—typically configured as a push-pull complementary MOSFET pair—connects the positive supply rail (typically +15V) to the gate terminal through an external turn-on gate resistor (R_G(on)). Current flows into the gate, charging C_ge. As the gate-emitter voltage (V_GE) surpasses the gate threshold voltage (V_GE(th)), electrons begin to accumulate in the inversion channel underneath the gate oxide.

Once the inversion layer forms, base current is injected into the internal p-n-p bipolar structure. This triggers conductivity modulation, where minority carriers (holes) are injected from the p⁺ collector substrate into the lightly doped n^– drift region, drastically reducing the electrical resistance of the drift layer. During this interval, the collector-to-emitter voltage (V_CE) collapses from the high DC bus voltage toward the saturation voltage (V_CE(sat)). While V_CE falls, the voltage across the Miller capacitance changes rapidly, drawing significant displacement current from the driver. This creates the characteristic “Miller plateau,” a flat horizontal region on the V_GE waveform where gate voltage remains constant until C_gc is fully charged. The driver board must supply substantial transient current during this phase to sweep through the Miller plateau swiftly and minimize dynamic turn-on losses.

During turn-off, the driver board disconnects the positive rail and pulls the gate terminal toward a negative potential (such as -8V or -15V) through the turn-off resistor (R_G(off)). The driver sinks current from the gate, discharging C_ge and C_gc. As V_GE drops below V_GE(th), the MOS channel closes, terminating electron flow. However, because the wide n^– drift region remains flooded with stored minority carriers, current conduction does not cease instantaneously. The device exhibits a distinct “tail current” until these stored carriers recombine or are swept away by the expanding depletion region. An inadequate driver board that fails to pull the gate negative or lacks sufficient current-sinking capacity will prolong this tail phase, driving switching losses to unsustainable levels and increasing the risk of thermal runaway.

Key Features, Advantages, and Technology Comparison

Industrial driver boards are engineered across multiple architectural topologies, ranging from discrete transistor networks to monolithic integrated gate driver ICs and complete plug-and-play driver cores. Discrete designs utilize optocouplers, discrete bipolar or MOSFET totem-pole output stages, and discrete diode-resistor networks. Monolithic driver ICs consolidate isolation barriers (using capacitive, inductive, or optical coupling) and gate-drive stages onto a single silicon die or hybrid module. Advanced plug-and-play intelligent driver cores integrate onboard DC-DC isolated power supplies, sophisticated fault logic, temperature monitoring, and active overvoltage clamping networks directly calibrated for high-power modules like the QM300HA-H.

The operational capabilities of these three approaches differ substantially in peak current delivery, protection latency, galvanic isolation integrity, and susceptibility to electrical noise. Understanding these technical trade-offs is critical when selecting an architecture that matches the operational demands of the power semiconductor stage.

The primary advantage of advanced integrated and plug-and-play driver boards over discrete networks is their superior Common-Mode Transient Immunity (CMTI). In modern inverters operating at high DC link voltages, switching transitions produce steep dV/dt rates exceeding 50 kV/µs. Standard optocouplers with low CMTI ratings can experience capacitive displacement currents across their isolation barrier, corrupting internal logic states and causing accidental “shoot-through”—a destructive condition where both the high-side and low-side IGBTs in a half-bridge turn on simultaneously, short-circuiting the main DC link.

Furthermore, plug-and-play driver boards feature matched propagation delays across independent channels. In three-phase inverter networks, unequal timing delays distort the commanded dead-time, generating asymmetric phase currents and higher harmonic distortion. By utilizing matched core architectures, system designers achieve balanced switching transitions without adding excessive dead-time margins that degrade inverter efficiency and DC link voltage utilization.

Real-World Applications and Operating Precautions

IGBT driver boards operate across a broad spectrum of demanding industrial environments, including variable-frequency motor drives (VFDs), grid-tied central solar inverters, high-power induction heating generators, and traction power supplies. In renewable energy installations, driver boards must run continuously under elevated ambient temperatures while maintaining precise duty-cycle fidelity. In motor drives and dynamic braking stages utilizing integrated chopper modules such as the SKD75GAL123D, the driver board must withstand high mechanical vibration, cyclical thermal stresses, and significant inductive energy returns during sudden load rejection events.

To ensure robust operation across these diverse applications, engineers must observe strict design and operating precautions during layout, integration, and thermal commissioning:

• Minimization of Gate Loop Inductance: The conductor loop connecting the driver board output stage to the IGBT gate and emitter terminals must be kept as short and physically compact as possible. Excessive trace length introduces parasitic gate inductance (L_G), which resonates with C_ge to create severe gate voltage ringing. This ringing can breach the absolute maximum gate-emitter voltage rating (typically ±20V), puncturing the fragile gate oxide layer. Use twisted-pair wiring or tightly coupled stripline PCB geometries to cancel magnetic flux.
• Connection to the Auxiliary Kelvin Emitter: High-power IGBT modules feature two emitter connections: a main power emitter terminal intended for load current and an auxiliary “Kelvin emitter” terminal intended exclusively for the gate drive return. The driver board return path must be connected directly to this Kelvin emitter. Routing the driver return through the main power emitter forces load-current di/dt through the drive loop, inducing an opposing voltage (V = -L_E · di/dt) that counters the gate command, slows switching transitions, and causes high dynamic oscillations.
• Active Miller Clamping vs. Negative Gate Bias: In half-bridge topologies, when the upper switch turns on, the lower switch experiences an abrupt rise in V_CE. This high dV/dt injects displacement current into the lower gate via the Miller capacitance (I_disp = C_gc · dV/dt). If this current flows through the off-state gate resistor, it can lift V_GE above V_GE(th), triggering parasitic cross-conduction. To prevent this, the driver board must supply either a continuous negative bias (typically -5V to -15V) or employ an internal Active Miller Clamp (AMC) circuit that short-circuits the gate directly to the negative rail through a dedicated low-impedance path whenever V_GE falls below roughly 2.0V.
• Managing Asymmetric Gate Resistors: Designers must establish distinct impedance profiles for turn-on and turn-off by using separate forward and reverse resistors (R_G(on) and R_G(off)), decoupled through a fast Schottky diode. A moderate R_G(on) dampens EMI generation and limits free-wheeling diode reverse recovery current, while a lower R_G(off) accelerates minority carrier evacuation and minimizes turn-off energy dissipation (E_off).
• Creepage, Clearance, and Thermal Considerations: The driver board must satisfy regulatory creepage and clearance standards (e.g., IEC 61800-5-1) across its galvanic isolation barrier based on working system voltage, overvoltage category, and environmental pollution degree. Thermally, driver output transistors and internal DC-DC converters dissipate heat proportional to switching frequency and total gate charge. Ensure adequate convective airflow across driver heatsinks, and never place heat-generating driver components adjacent to sensitive optical isolators.

Engineering Selection Guidelines and Field Diagnostics

Selecting the optimal driver board requires rigorous mathematical evaluation of the target IGBT module’s gate charge specifications, switching frequency, and system safety boundaries. Rather than relying on generic power ratings, engineers must verify that the driver board satisfies three core electrical criteria: peak gate current, average gate drive power, and desaturation protection thresholds.

1. Peak Gate Current Sizing

The peak current supplied by the driver board determines the initial transition speed of the gate voltage. It is constrained by the total loop resistance, which includes the driver’s internal output impedance (R_DS(on)), external gate resistance (R_G), and internal module gate resistance (R_G(int)):

I_peak = (V_GE(on) – V_GE(off)) / (R_DS(on) + R_G(ext) + R_G(int))

The driver board’s rated peak current must exceed this calculated I_peak value. If the driver is under-rated, its output stage will enter current-limit saturation, distorting the gate profile, extending switching intervals, and generating excessive heat inside the driver module.

2. Average Gate Power Sizing

The internal DC-DC isolated power supply on the driver board must furnish continuous electrical power to shuttle charge into and out of the gate capacitance on every switching cycle. This required average power (P_drv) is calculated directly from the total gate charge (Q_g) obtained from the manufacturer’s datasheet:

P_drv = (V_GE(on) – V_GE(off)) · Q_g · f_sw

where V_GE(on) is the turn-on voltage (typically +15V), V_GE(off) is the turn-off rail (e.g., -8V, making the total voltage swing 23V), Q_g is the gate charge at those voltages, and f_sw is the operating switching frequency in Hertz. The isolated DC-DC power supply embedded on the driver board must have a continuous power rating at least 25% to 30% higher than P_drv to accommodate quiescent current draw, optical interface losses, and safe thermal headroom under worst-case industrial ambient temperatures.

3. DESAT Protection Calibration

Desaturation protection monitors the V_CE voltage across the IGBT while the gate is commanded high. Under a short-circuit fault, collector current surges, dragging the device out of saturation and causing V_CE to rise rapidly toward the DC bus voltage while conducting fault currents. The driver’s DESAT diode monitors this node. The blanking time—set via an external timing capacitor (C_blank)—must be carefully tuned: if it is too short, the driver trips prematurely during normal turn-on before V_CE has completed its initial drop; if it is too long, the IGBT remains in a high-current short-circuit condition beyond its maximum short-circuit withstand time (typically 5 µs to 10 µs), leading to module rupture.

Executing continuous diagnostic checks during prototype commissioning and scheduled field maintenance guarantees that the power converter functions reliably over decades of service. By matching the driver board’s electrical ratings, transient immunity, and fault dynamics to the physical constraints of the IGBT module, engineering teams achieve optimal switching efficiency, low EMI signatures, and dependable long-term field performance.
