DC circuit breaker

What This Component Is and Its Industry Significance

A direct current (DC) circuit breaker is an automatic electrical switching and protective apparatus engineered specifically to interrupt sustained current flow, overloads, and high-magnitude short circuits in DC electrical systems. Unlike passive safety elements such as fuses that sacrifice their physical conductors to isolate an overload, a DC circuit breaker can repeatedly detect abnormal conditions, isolate faulted distribution segments, and reset once system parameters return to safe operating thresholds.

In traditional alternating current (AC) power distribution, the alternating voltage and current waveforms naturally pass through zero voltage and zero current twice per cycle (100 times per second in 50 Hz systems and 120 times per second in 60 Hz systems). These periodic zero-crossing points provide a natural window of opportunity for circuit breakers to dissipate electric arcs, cool the surrounding dielectric gas or air, and achieve galvanic isolation with relatively low thermal and mechanical stress. Direct current, however, flows unidirectionally at an essentially constant magnitude without periodic zero-crossings. When mechanical contacts separate under DC load, an electric arc immediately ignites across the contact gap and persists indefinitely unless an artificial mechanism forces the current to zero or drives the arc voltage above the system supply voltage.

As modern electrification shifts toward renewable generation and distributed power architectures, DC distribution has evolved from a niche discipline into a primary design standard. The rapid expansion of utility-scale solar photovoltaic (PV) installations, battery energy storage systems (BESS), electric vehicle (EV) DC fast chargers, data center microgrids, and electric rail transit has created unprecedented demand for reliable DC interruption technology. In these high-power installations, short-circuit fault currents can rise at thousands of amperes per millisecond, driven by low-impedance battery banks or discharging DC-link capacitors. Without dedicated DC circuit breakers capable of ultra-fast current interruption, electric arcs can persist, triggering destructive arc-flash events, permanent equipment loss, and extended facility downtime.

Consequently, the development and deployment of robust DC circuit breakers represent a core pillar of modern Power Electronics Principles and industrial power engineering. They solve the dual challenges of protecting expensive battery chemistries and power converters while ensuring high service availability across mission-critical green energy networks.

Working Principle and Physical Structure

The operational foundation of any DC circuit breaker rests on its ability to extinguish the DC arc during a fault event. When the mechanical contacts of a conventional breaker part under electrical load, the localized electric field between the parting metallic surfaces strips electrons from gas molecules, ionizing the gap and forming a conductive plasma channel. Because DC lacks natural zero-crossings, the breaker must actively generate a counter-electromotive force, known as the arc voltage (V_arc), that exceeds the source supply voltage (V_source). By forcing V_arc > V_source, the net circuit voltage driving the current becomes negative, driving the fault current derivative (di/dt) downward toward zero.

To achieve this arc suppression, conventional mechanical DC circuit breakers incorporate specialized physical sub-assemblies:

• Magnetic Blowout Coils: These electromagnetic windings are placed in series with the main contact path. When high fault current surges through the contacts, the blowout coil generates a concentrated transverse magnetic field across the contact gap. According to the Lorentz force law, this magnetic field exerts a lateral force on the charged particles in the plasma arc, physically blowing the arc away from the primary contacts and toward the arc chamber.
• De-ionizing Arc Chutes: The arc chute consists of a stack of parallel, insulated metallic splitter plates (commonly copper-plated steel). As the Lorentz force propels the arc into the chute, the single high-energy arc is split into numerous smaller series arcs. This division rapidly cools the plasma, dramatically raises the total arc resistance, and multiplies the cumulative cathode-anode voltage drops until the total arc voltage surpasses the system operating voltage, quenching the arc.
• Permanent Magnets: In smaller, compact DC miniature circuit breakers (MCBs), calibrated permanent neodymium or ferrite magnets replace electromagnetic coils to redirect the arc toward the splitter plates regardless of current magnitude.

While mechanical DC breakers remain robust and cost-effective, their total interruption time typically ranges between 10 ms and 50 ms. In sensitive solid-state microgrids and battery systems, fault currents can reach peak levels in less than 2 ms, necessitating electronic switching topologies. Solid-state DC circuit breakers (SSCBs) eliminate moving contacts entirely by using high-power semiconductor devices such as the Insulated-Gate Bipolar Transistor (IGBT), Gate Turn-Off Thyristors (GTOs), or Integrated Gate-Commutated Thyristors (IGCTs). In an IGBT-based solid-state breaker, the device operates in full conduction during normal conditions. The gate driver maintains a positive gate-emitter bias (e.g., +15 V), sustaining an electron channel across the MOS gate structure that facilitates continuous carrier injection into the wide n-type drift region.

Upon sensing an overcurrent through high-speed Rogowski coils or Hall-effect sensors, the gate control circuit discharges the gate to zero or negative voltage within microseconds. This removes the conductive channel, interrupts electron injection, and allows the stored minority carriers in the bipolar drift region to recombine. As the semiconductor transitions to its forward-blocking state, fault current interruption occurs in less than 5 µs to 10 µs—completely free of mechanical wear and physical arcing. To dissipate the inductive energy (0.5·L·I²) stored in system cabling without destroying the semiconductor, SSCBs are paired in parallel with heavy-duty metal-oxide varistors (MOVs) and RC snubber circuits. In high-power applications, reliable power stages such as the DP15H1200TO101982 or the rugged QM300HA-H power module are frequently integrated into these fast-acting solid-state and hybrid interrupter paths.

Hybrid DC circuit breakers bridge these two paradigms. They route nominal steady-state current through an ultra-low-resistance mechanical bypass switch to eliminate semiconductor conduction losses. When a fault is detected, an ultra-fast mechanical actuator opens the bypass switch while an auxiliary semiconductor switch commutates the fault current into a solid-state absorption branch, combining millisecond mechanical isolation with microsecond electronic current suppression.

Key Features, Advantages, and Technology Comparison

Evaluating DC circuit breaker technologies requires balancing speed, efficiency, size, galvanic separation, and cost. Each primary topology—Mechanical, Solid-State (SSCB), and Hybrid—exhibits distinct trade-offs tailored to specific electrical architectures.

Mechanical DC breakers offer zero steady-state semiconductor forward voltage drops, which translates to negligible thermal dissipation during regular service. They also provide true galvanic isolation when open, preventing hazardous leakage currents from reaching downstream technicians. However, their mechanical inertia limits operational speed, and repeated contact erosion from arcing demands scheduled maintenance and eventual contact replacement.

Conversely, solid-state breakers deliver unmatched trip speeds (frequently sub-millisecond), completely eliminating electric arcs and contact wear. This makes them ideal for environments where arc-flash risks cannot be tolerated or where ultra-low source impedances would allow fault currents to destroy equipment before mechanical contacts could open. The principal drawback of solid-state breakers is steady-state conduction loss: current flowing through a semiconductor collector-emitter junction generates continuous heat (V_CE(sat) × I_load), requiring bulky heatsinks or liquid cooling systems. Furthermore, semiconductors exhibit small leakage currents even in the “off” state, meaning they cannot provide code-compliant galvanic isolation without a supplementary series disconnector.

Hybrid breakers resolve the thermal penalty of SSCBs by employing a parallel mechanical switch for normal conduction, yet they introduce mechanical complexity, larger cabinet footprints, and higher capital costs.

Real-World Applications and Operating Precautions

Direct current circuit breakers serve distinct operational roles across industrial power sectors, each imposing unique electrical and physical demands on the breaker hardware.

In Utility-Scale Solar Photovoltaic (PV) Systems, string combiners and central inverters operate at DC bus voltages up to 1500 V_DC. Because PV strings behave as current-limited sources (short-circuit current is often only 1.2 to 1.5 times the rated full-load current), DC breakers must feature sensitive, adjustable magnetic-trip thresholds to trip reliably on subtle faults while remaining immune to false trips caused by passing clouds or solar irradiance spikes.

In Battery Energy Storage Systems (BESS), the operational dynamics are reversed. Lithium-ion battery racks exhibit exceptionally low internal impedance. A short circuit across battery terminals can produce massive fault currents with peak values exceeding 50 kA within milliseconds. DC breakers installed in BESS containers must possess high ultimate short-circuit breaking capacities (I_cu) and must clear faults rapidly before the battery cells sustain irreversible thermal runaway or structural rupturing.

In Electric Vehicle (EV) DC Fast Chargers, breakers operate from 400 V_DC to 1000 V_DC at continuous currents reaching 300 A to 500 A. The switching environment involves repetitive power cycling, variable ambient temperatures, and human interaction. In auxiliary power rails and rectifier stages of these chargers, components such as the SKD75GAL123D power bridge diode module are frequently coordinated with downstream DC breakers to protect sensitive power conversion blocks against reverse-polarity faults and grid-side transients.

Crucial Operating Precautions

Field installations of DC circuit breakers must adhere to strict engineering rules to avoid catastrophic failure:

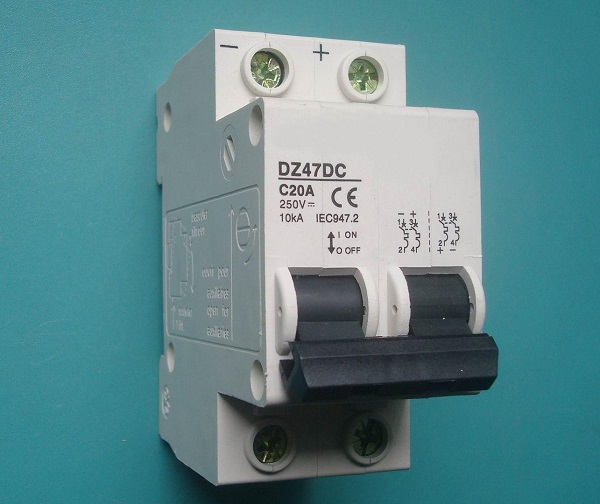

• Polarity Sensitivity: Many mechanical DC breakers utilize permanent magnets for arc extinguishing. These units are strictly polarity-dependent, with marked “+” and “−” input terminals. Reversing terminal connections inverts the Lorentz force, propelling the electric arc out of the arc chute and inward toward the mechanical trip mechanism, causing catastrophic internal destruction and enclosure burn-through. In systems with bidirectional current flow (such as battery charge/discharge cycles), engineers must specify non-polarized DC breakers equipped with dual arc chutes or symmetrical solid-state topologies.
• Circuit Time Constant (L/R Ratio): Unlike pure resistive loads, industrial DC loads incorporate substantial inductance (cables, motor windings, filter inductors). The circuit time constant, calculated as the inductance divided by resistance (L/R in milliseconds), governs how stubbornly the current resists interruption. Breakers tested only on low L/R circuits (e.g., 2 ms) will experience severe contact destruction if applied in high-inductance circuits (L/R > 15 ms) without appropriate de-rating.
• Thermal De-rating in Sealed Cabinets: Outdoor solar combiner boxes and BESS enclosures routinely encounter interior ambient temperatures exceeding 50 °C. The continuous thermal rating of standard thermal-magnetic breakers degrades under elevated ambient temperatures. Engineers must apply manufacturers’ temperature de-rating curves or select electronic trip units that remain stable across broad operating ranges.
• Arc Flash Boundaries: Because DC arcs do not self-extinguish at a zero-crossing, sustaining a high-power DC fault produces immense sustained radiant thermal energy. Maintenance personnel must enforce strict Arc Flash Boundary calculations and personal protective equipment (PPE) protocols when servicing live DC switchboards.

Engineering Selection Guidelines and Field Diagnostics

Proper selection of a DC circuit breaker involves calculating circuit parameters against certified device ratings, followed by rigorous periodic maintenance once in the field.

Step-by-Step Selection Methodology

1. Determine Maximum System Voltage (U_e / U_max): The rated operational voltage of the breaker must equal or exceed the maximum potential system voltage. In solar systems, this corresponds to the open-circuit voltage (V_oc) of the PV array at the coldest historical site temperature.
2. Calculate Continuous Current (I_n): The nominal rating must accommodate the maximum continuous load current, factoring in ambient temperature de-rating factors (typically sizing the breaker to at least 125% of the continuous load current per standard electrical codes).
3. Evaluate Interrupting Capacity (I_cu and I_cs): The ultimate short-circuit breaking capacity (I_cu) must exceed the maximum prospective short-circuit current available from the source. In battery installations, calculate the bolting fault current by dividing the battery string open-circuit voltage by the total internal loop resistance (including cells, fuses, cabling, and internal terminal resistances).
4. Analyze Circuit Inductance (L/R Ratio): Select a breaker certified for the specific time constant of the target application. Standard commercial ratings typically reference 5 ms, 10 ms, or 15 ms time constants.
5. Select Trip Characteristics: For motor circuits or capacitive inrush loads, select trip curves that accommodate transient startup currents without nuisance tripping, while ensuring rapid trip actuation under bolted short-circuit conditions.

Field Diagnostics and Maintenance Protocol

DC circuit breakers operate in demanding electrical environments where thermal stress, contact erosion, and mechanical fatigue can compromise performance over time. Field technicians should utilize the diagnostic matrix below during scheduled facility turnarounds to identify deteriorating components before operational failures occur.

By pairing correct topological selection with disciplined diagnostic routines, power engineers can deploy DC circuit breakers that provide reliable, repeatable, and safe fault interruption across demanding modern energy architectures.
