Electrode polarization

Electrode Polarization in Electrical and Energy Systems: Definition, Origins, and Industry Significance

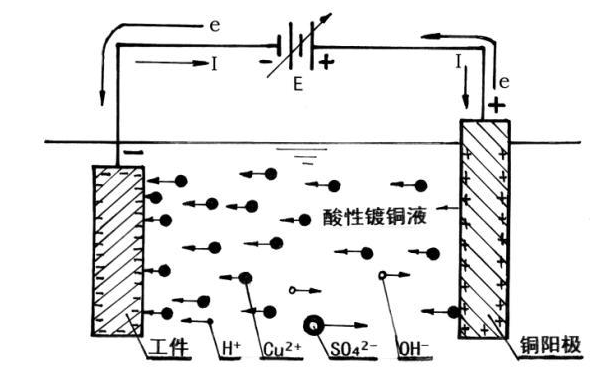

Electrode polarization is a foundational physical and electrochemical phenomenon observed whenever an electrical current passes through an interface between an electrode and an active conducting medium, such as an electrolyte, dielectric layer, or semiconductor boundary. Under equilibrium or open-circuit conditions, an electrode attains a steady-state thermodynamic balance known as its reversible electrode potential. In this resting state, the rates of forward and reverse charge-transfer reactions are identical, resulting in zero net current and a constant potential difference across the phase boundary.

When an external circuit forces a net current to flow through the system—such as during the charging or discharging of a battery cell, the operation of an electrolytic capacitor, or the biasing of a solid-state gate interface—this thermodynamic equilibrium is disrupted. Chemical species and charge carriers cannot move or react instantaneously. As a direct consequence, electric charges accumulate across the phase boundaries: positive charge builds up on one electrode while negative charge accumulates on the opposite electrode. This dynamic accumulation causes the operating potential of the electrode to deviate significantly from its reversible equilibrium potential. This deviation is formally defined as electrode polarization, and the quantitative difference between the operating potential and the equilibrium potential is referred to as the overpotential (symbolized as η).

In modern electrical engineering and power conversion architectures governed by foundational Power Electronics Principles, electrode polarization is both a critical performance-limiting factor and an essential operating mechanism. In energy storage installations, such as lithium-ion battery banks, flow batteries, and supercapacitors, electrode polarization manifests as dynamic voltage sag during high-current discharge and transient voltage spikes during rapid charging. This effect directly reduces round-trip energy efficiency, generates substantial internal heat, and limits peak power delivery.

In passive components like aluminum electrolytic DC-link capacitors, polarization governs dielectric formation, leakage currents, and equivalent series resistance (ESR). Furthermore, in solid-state switching devices, polarization effects across gate dielectrics and semiconductor junctions determine how electric fields control conductive channels. Understanding and mitigating unwanted polarization allows design engineers to optimize thermal management, prevent premature component degradation, size power converters accurately, and enhance the overall reliability of industrial power conversion systems.

Physical Mechanisms, Carrier Dynamics, and Gate-Electrode Semiconductor Interactions

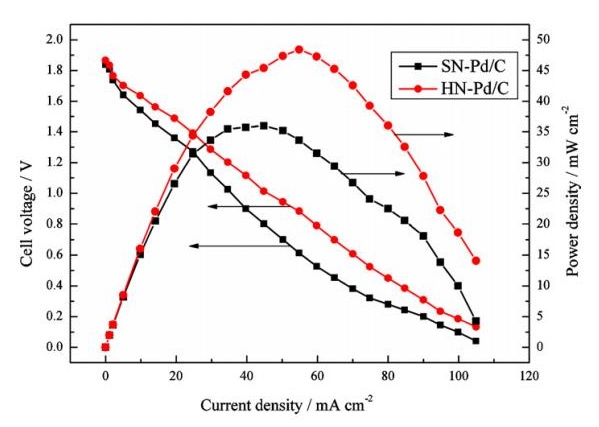

Electrode polarization originates from physical bottlenecks encountered by charge carriers as they traverse material bulk regions and transition across interfaces. In any operating electrical or electrochemical system, the total polarization overpotential is the cumulative sum of three distinct physical mechanisms: activation polarization, concentration polarization, and ohmic polarization.

• Activation Polarization (η_act): Also referred to as charge-transfer polarization, this component is caused by the finite energy barrier (activation energy) that electrons or ions must overcome to transition across the electrode interface. When current demand increases, an additional potential difference must be applied to drive the reaction kinetics, as described by the classical Butler-Volmer relationship.
• Concentration Polarization (η_conc): Arising from mass transport limitations, concentration polarization occurs when the consumption or generation rate of reacting species at the electrode surface exceeds the rate at which diffusion, migration, or convection can transport species to or from the bulk medium. This creates a localized concentration gradient, shifting the interface potential away from nominal equilibrium.
• Ohmic Polarization (η_ohm): Commonly referred to as the IR drop, ohmic polarization stems directly from the intrinsic electrical resistance of the electrode materials, current collectors, bulk electrolyte or semiconductor bulk regions, and mechanical contact interfaces. It follows Ohm’s law linearly with respect to the conducted current.

The core concept of electrode polarization extends directly into solid-state power devices, most notably insulated-gate switches. In devices governed by Insulated-Gate Bipolar Transistor (IGBT) Fundamentals, an external gate voltage is applied across a metal or polysilicon gate electrode separated from the semiconductor body by a thin silicon dioxide dielectric layer. Applying a positive gate-to-emitter voltage (V_GE) polarizes this dielectric boundary, inducing an electrostatic field that attracts mobile minority carriers (electrons) toward the oxide-silicon interface.

Once V_GE exceeds the threshold voltage (V_GE(th)), the induced surface charge density inverts the p-type body region, establishing a conductive n-type inversion channel. This conductive channel supplies base drive current directly into the internal bipolar structure of the device. Consequently, holes are injected from the bottom p⁺ collector layer into the wide, lightly doped n^– drift region. This bipolar carrier injection floods the drift region with excess electron-hole pairs—a phenomenon known as conductivity modulation. Conductivity modulation reduces the bulk resistance of the thick drift region by orders of magnitude, allowing the device to conduct large forward currents (I_C) with an exceptionally low on-state saturation voltage (V_CE(sat)).

When the gate electrode polarization is reversed or reduced below threshold, the electrostatic channel collapses. Carrier injection ceases immediately, and remaining excess minority carriers within the drift layer must either recombine or be swept out by the developing space-charge electric field. This process governs turn-off switching transitions, dynamic tail currents, and overall switching power losses.

Key Features, Energy Losses, and Technology Comparison Across Electrical Interfaces

Electrode polarization directly dictates how electrical components behave under steady-state conduction, pulse loading, and high-frequency switching. In energy storage interfaces, excessive activation and concentration polarization result in internal heating, capacity fade, and accelerated electrolyte breakdown. In solid-state power semiconductors and filtering capacitors, interfacial charge accumulation and dielectric polarization define gate capacitance charging times, equivalent series resistance (ESR), and switching dissipation.

To help engineers evaluate how polarization phenomena influence various component categories within power conversion systems, the table below compares key electrical interfaces, their dominant polarization mechanisms, dynamic characteristics, and primary design trade-offs.

As illustrated in the comparative data, systems with slow polarization responses (such as chemical batteries) suffer from long relaxation periods, requiring power conversion systems to dynamically compensate for voltage swings. Conversely, solid-state interfaces feature sub-microsecond polarization and carrier dynamics, requiring precise control over parasitic inductances and gate charge currents to prevent destructive overvoltage transients.

Real-World Applications, Power Conversion Architectures, and Operating Precautions

In modern industrial electrification, electrode polarization phenomena intersect directly with power semiconductor conversion stages. Whether converting renewable energy, regulating industrial bus voltages, or driving multi-megawatt electric motors, the dynamic interaction between polarized sources, intermediate filters, and power switches must be carefully engineered.

Battery Energy Storage Systems (BESS) and Grid Inverters

In utility-scale energy storage, battery banks experience severe concentration polarization during deep discharge cycles, causing dynamic DC bus voltage drops of 15% to 25% below open-circuit values. Power conversion stages must dynamically adjust pulse-width modulation (PWM) duty cycles to maintain stable AC grid output. High-current power modules, such as the QM300HA-H, are widely deployed in these central inverter topologies to handle continuous collector currents up to 300 A while withstanding elevated thermal cycles generated during continuous bidirectional power flow.

Variable Frequency Motor Drives and Rectifier Bridges

Industrial motor drives convert three-phase utility AC into a stabilized DC bus before synthesizing variable-frequency power for induction or permanent-magnet motors. The input stage frequently incorporates heavy-duty half-controlled or uncontrolled rectifier bridges, such as the SKD75GAL123D power module. The DC-link capacitor bank connected directly downstream undergoes intense polarization-depolarization cycling due to high-frequency ripple currents drawn by the inverter stage. If ripple limits are exceeded, localized dielectric heating accelerates electrolyte vaporization, increasing ESR and leading to premature bus collapse.

Induction Heating and High-Frequency Resonant Converters

Resonant induction heating systems demand high switching frequencies (typically 20 kHz to 100 kHz) to achieve surface hardening and melting. In these circuits, switching transitions must be tightly synchronized with zero-voltage or zero-current crossings. Compact, integrated power modules such as the DP15H1200TO101982 provide low parasitic inductance and optimized gate-charge characteristics, allowing efficient high-frequency commutation without localized gate dielectric degradation. Engineers designing high-reliability power stages can leverage validated Industrial Power Semiconductor Solutions to balance switching speed against transient overvoltage margins.

Field Operating Precautions

To ensure long-term operational integrity across systems subject to polarization and dynamic switching stress, engineers must implement the following physical precautions:

• Thermal Interface Management: Polarization-induced conduction losses generate concentrated heat flux. Power module baseplates must be mounted to flat heatsinks (surface flatness < 50 µm over 100 mm) using a homogeneous layer of high-performance thermal interface material (TIM) applied at an optimum thickness of 50 µm to 100 µm. Fastening screws must be torqued progressively in cross-patterns to manufacturer specifications (typically 3.0 N·m to 5.0 N·m) to prevent ceramic substrate cracking.
• Gate Dielectric Protection: The thin silicon dioxide layer underlying the gate electrode is susceptible to electrostatic discharge (ESD) and inductive overvoltage spikes. Gate drivers must incorporate bidirectional TVS zener diodes clamped between gate and emitter terminals directly at the module pins. Gate wiring should utilize tightly twisted pairs or coaxial geometry to eliminate inductive noise coupling.
• Electrolytic Bus Capacitor De-rating: To counteract internal ohmic heating caused by cyclic polarization currents, DC-link capacitor banks should be voltage-derated by at least 15% to 20% relative to maximum peak bus voltage, with forced-air cooling routed directly across capacitor vents.

Engineering Selection Guidelines, System Sizing, and Field Diagnostics

Selecting appropriate semiconductor modules and passive components requires accounting for dynamic polarization, transient rebound voltages, and worst-case thermal operating boundaries. Improper component selection frequently leads to catastrophic breakdown caused by overvoltage punch-through or thermal runaway.

Voltage and Current Sizing Rules

When selecting power switches for systems fed by electrochemical sources (batteries or fuel cells), the nominal open-circuit voltage does not represent the peak stress. During rapid charge cessation or inductive load dumping, electrochemical overpotential collapses, and inductive line kickback can generate severe voltage spikes. Consequently, the collector-emitter breakdown voltage (V_CES) of the semiconductor must satisfy:

V_CES ≥ 1.5 × V_DC(max) + (L_parasitic × di/dt)

For example, in a 400 V nominal battery system where rapid charging peaks at 480 V, a power switch rated for at least 1200 V is standard practice. Similarly, continuous collector current (I_C) ratings should be selected with a safety margin of 1.5× to 2.0× over the maximum calculated RMS load current, ensuring the junction temperature (T_j) remains well below the maximum allowable threshold (typically 150 °C or 175 °C) under worst-case ambient conditions.

Field Diagnostics and Troubleshooting Procedures

When power electronics systems or energy storage banks exhibit degraded performance, field technicians must systematically isolate whether faults originate from electrochemical degradation, capacitor polarization breakdown, or semiconductor failure. The diagnostic table below outlines actionable field test procedures using standard digital multimeters and bench instruments.

By applying these engineering guidelines, technicians and system designers can accurately assess the physical health of both electrochemical storage media and solid-state power conversion devices, ensuring optimal operating efficiency and long-term operational lifespan across demanding industrial environments.
