What Explosion-Proof Sound and Light Alarms Are and Their Industry Significance

An explosion-proof sound and light alarm—frequently designated in industrial standards as an audio-visual warning beacon or hazardous-area sounder-strobe—is a specialized annunciation device engineered to provide simultaneous audible and visible alerts within environments containing volatile flammable gases, vapors, mists, or combustible dusts. In industrial automation, refining, and chemical processing, early warning systems represent the primary line of defense against catastrophic life-safety incidents. Standard commercial warning devices cannot be deployed in these settings because the electrical arcs generated during normal contact switching, electrostatic discharge, or the high thermal energy dissipated by acoustic transducers and illumination sources can exceed the minimum ignition energy (MIE) or auto-ignition temperature (AIT) of surrounding atmospheric mixtures.

The core objective of an explosion-proof sound and light alarm is twofold: to reliably alert personnel across noisy and structurally obstructed plant spaces of immediate hazards (such as toxic gas leaks, combustible vapor accumulation, fire breakout, or critical process pressure excursions), while guaranteeing that neither the internal electrical circuitry nor the external surface temperature of the device can cause an ignition of the surrounding hazardous atmosphere. These devices are rigorously rated under global certification frameworks, including IECEx, ATEX, and NEC/CEC, which define performance in designated hazardous zones (such as Zone 1, Zone 2, Zone 21, and Zone 22, or Class I, Division 1 and 2 locations).

In modern industrial facilities, these signaling units solve severe operational challenges. Plant machinery, high-volume compressors, turbine halls, and centrifugal pumps generate massive ambient acoustic noise, often exceeding 85 dBA to 95 dBA. Under such acoustic profiles, single-mode audible sirens are easily masked or missed by workers wearing hearing protection. Conversely, complex pipe racks, distillation towers, and heavy structural steelwork create visual blind spots that diminish the effectiveness of visual-only strobe beacons. By integrating a synchronized, high-decibel acoustic sounder with an omnidirectional, high-intensity optical flasher inside a single certified housing, plant operators ensure unambiguous signal comprehension even in high-noise, visually obscured industrial settings.

Furthermore, these signaling units act as direct field outputs for safety instrumented systems (SIS), fire and gas (F&G) detection networks, and distributed control systems (DCS). When an optical flame detector, infrared gas sensor, or thermal sensor validates an emergency threshold, control logic energizes the alarm loop. The immediate warning allows on-site operators to execute evacuation routes or manually initiate emergency shutdown (ESD) procedures before hazardous conditions progress to an uncontained explosion.

Working Principle and Physical Structure of Explosion-Proof Warning Devices

The operational integrity of an explosion-proof sound and light alarm relies on two complementary engineering disciplines: robust electrical pulse modulation to generate high-output audio-visual signals, and explosion-containment mechanical design that neutralizes internal ignition risks.

Acoustic and Optical Transduction Mechanisms

The acoustic output is generated using either a high-power piezoelectric ceramic element or an electromagnetic voice-coil driver coupled to a tuned exponential horn flare. When energized, the internal driver board synthesizes multi-tone waveforms (swept frequencies, continuous tones, or intermittent chimes) via solid-state switching. The electrical energy causes cyclic mechanical deflection of the diaphragm, transforming electrical oscillating power into concentrated sound pressure waves that propagate outward through an acoustic chamber designed to avoid mechanical friction sparks.

The optical assembly utilizes either a high-candela xenon flash tube or a dense array of solid-state high-flux light-emitting diodes (LEDs). In xenon configurations, a high-voltage trigger circuit ionizes xenon gas within a sealed glass tube, discharging a storage capacitor across the electrodes to produce a microsecond-duration, high-intensity flash. Modern units predominantly use high-reliability power LED arrays driven by constant-current switching regulators. Solid-state driver circuits control the flash pattern—such as 1 Hz, 2 Hz, or pseudo-rotational sweeps—using low-voltage gate-driven power stages that minimize power consumption while producing luminous outputs exceeding 300 candelas.

Flameproof (Ex d) Enclosure Mechanics

The dominant protection topology used for heavy industrial sound and light alarms is the flameproof (Ex d) enclosure method. Contrary to common belief, an Ex d enclosure is not hermetically sealed to prevent explosive gas from entering. Instead, the enclosure is engineered to survive an internal explosion if volatile gas enters and is detonated by internal electrical sparks or thermal dissipation.

The enclosure consists of a heavy-wall cast housing made of low-copper aluminum alloy (such as LM6) or marine-grade AISI 316 stainless steel, fitted with a high-impact, thermal shock-resistant borosilicate glass or polycarbonate optical lens. The critical safety feature is the flame path (or flameproof joint). Flame paths are precision-machined mating surfaces—either flat flanged, cylindrical spigot, or threaded joints—that maintain a strictly defined gap width (W) and maximum clearance gap (L). If an internal gas-air mixture ignites, the resulting flame front is forced to pass through these narrow interstitial paths to escape into the external atmosphere.

As the burning gas traverses the flame path, the dense metal walls absorb thermal energy through thermal conduction. This rapid cooling drops the gas temperature below the auto-ignition threshold of the external explosive atmosphere before the gas exits the enclosure. Simultaneously, the mechanical structure exhibits sufficient mechanical tensile strength to withstand internal explosion pressures, which can reach 700 kPa to 1,000 kPa, without sustaining permanent plastic deformation or breach.

Key Features, Protection Methods, and Technology Comparison

Selecting signaling devices for harsh, hazardous settings requires evaluating acoustic output, optical distribution, electrical efficiency, and mechanical containment methods. Historically, xenon discharge strobes and mechanical sirens dominated industrial plants, but solid-state LED arrays and electronic multi-tone sounders have replaced older technologies due to superior reliability and immunity to mechanical fatigue.

Explosion protection concepts are broadly divided into flameproof (Ex d), increased safety (Ex e), encapsulation (Ex m), and intrinsic safety (Ex i). While intrinsic safety restricts circuit energy below spark and thermal ignition limits, it inherently constrains total operational wattage, making it difficult to generate sound levels above 105 dBA or luminous pulses visible in bright outdoor sunlight over long distances. Consequently, industrial plants rely on flameproof (Ex d) enclosures for high-output combined alarms, often combining them with increased safety (Ex e) terminal compartments for field wiring terminations.

The following table compares the operating characteristics and performance trade-offs of modern sound and light signaling technologies deployed in hazardous industrial environments:

High-efficiency LED systems have lowered thermal generation inside the housing, allowing units to achieve tighter temperature class ratings (such as T6, where surface temperatures remain below 85 °C). This makes them safe for environments with low auto-ignition gases such as hydrogen (AIT ~500 °C, but with extremely low MIE of 0.017 mJ) and acetylene, while minimizing thermal stress on the internal power conditioning circuits.

Real-World Industrial Applications and Operating Precautions

Explosion-proof sound and light alarms are standard installations across energy and heavy chemical sectors. Typical deployments include offshore oil platforms, natural gas processing facilities, floating production storage and offloading (FPSO) vessels, petrochemical refining units, battery energy storage systems (BESS), and pharmaceutical synthesis cleanrooms handling flammable solvents.

In automated process control, field alarms operate in tandem with complex emergency trip architectures. When an alarm is triggered, the supervisory safety system often initiates immediate power cuts or load diversion via upstream electrical switchgear and motor control centers (MCCs). High-capacity emergency ventilation fans, deluge fire pumps, and fail-safe process isolation valves rely on robust power conversion hardware. These industrial control panels routinely incorporate advanced power modules like the DP15H1200TO101982 for auxiliary motor drives, heavy-duty industrial switching stages using the QM300HA-H, or mains rectification and chopper configurations built with the SKD75GAL123D. Understanding fundamental Power Electronics Principles ensures that field signaling devices maintain clean, uninterrupted DC or AC supply rails even during severe transient load shifts that accompany an automated plant trip.

Crucial Installation and Operating Precautions

Deploying equipment into explosive atmospheres demands strict adherence to engineering standards (such as IEC 60079-14). Common field installation guidelines include:

• Cable Entry Integrity: All unused conduit and cable entry ports must be sealed using certified Ex d stopping plugs. Cable glands must match the enclosure type and cable style (armored versus non-armored) with certified barrier seals or elastomeric compression grommets. Improper gland selection completely invalidates the flameproof rating.
• Flame-Path Protection: Flame-path surfaces must never be painted, scratched, or mechanically modified. When servicing, technicians must clean the machined mating faces with non-corrosive solvents and apply a thin film of non-hardening, silicone-free anti-corrosion grease (approved for hazardous environments) to prevent moisture ingress and galvanic corrosion.
• Torque Specifications: Enclosure fasteners (bolts and screws) contribute directly to containing internal explosion pressure. Fasteners must be high-tensile grade (typically A2-70 or A4-80 stainless steel) and torqued evenly in a crisscross sequence to the manufacturer’s specified values (frequently 15 N·m to 25 N·m). Missing or under-torqued bolts leave gaps that permit hot combustion gases to escape without adequate cooling.
• Electrostatic Hazard Mitigation: External non-metallic parts, such as polycarbonate domes or protective coatings, can accumulate static charge in dry atmospheres. When cleaning outer surfaces, operators must use damp cloths to prevent electrostatic discharges exceeding the ignition energy of gas groups IIA, IIB, or IIC.
• Earthing and Bonding: Both internal and external ground terminals must be properly connected. Bonding resistance across structural metallic joints must remain below 0.1 Ω to avoid potential differences during electrical surges or lightning strikes.

Engineering Selection Guidelines and Field Diagnostics

Specifying the proper explosion-proof sound and light alarm requires systematic evaluation of environmental classifications, ambient acoustic profiles, coverage geometry, and control loop capabilities. Selecting an undersized sounder leads to undetected safety events, while choosing an improperly rated enclosure introduces a catastrophic ignition risk.

Acoustic and Optical Sizing Principles

To ensure human recognition, sound engineering practice dictates that an audible alarm must generate a sound pressure level at least 15 dBA above the continuous ambient noise level, or 5 dBA above the maximum ambient noise lasting more than 60 seconds. Because sound exhibits an inverse-square attenuation of approximately 6 dBA for every doubling of distance in free space, calculating the effective range (d) requires the formula:

SPL(d) = SPL(1 m) – 20 · log₁₀(d) – Excess Attenuation

Where SPL(1 m) is the rated output at 1 meter, d is the distance in meters, and excess attenuation accounts for airborne absorption and structural obstructions. For an industrial compressor building with 85 dBA ambient noise, the target alarm level is 100 dBA. An alarm rated at 120 dBA at 1 meter provides the required 100 dBA threshold up to approximately 10 meters away in an open environment.

For optical signaling, field requirements dictate a minimum illumination of 0.4 lux at the observer’s eye. Flash rates should remain between 1 Hz and 2 Hz (60 to 120 flashes per minute), avoiding frequencies around 15 Hz to 20 Hz, which can trigger photosensitive seizures. In open-air outdoor yards, flashing amber or red LED strobes with at least 300 candelas are recommended to overcome direct sunlight glare.

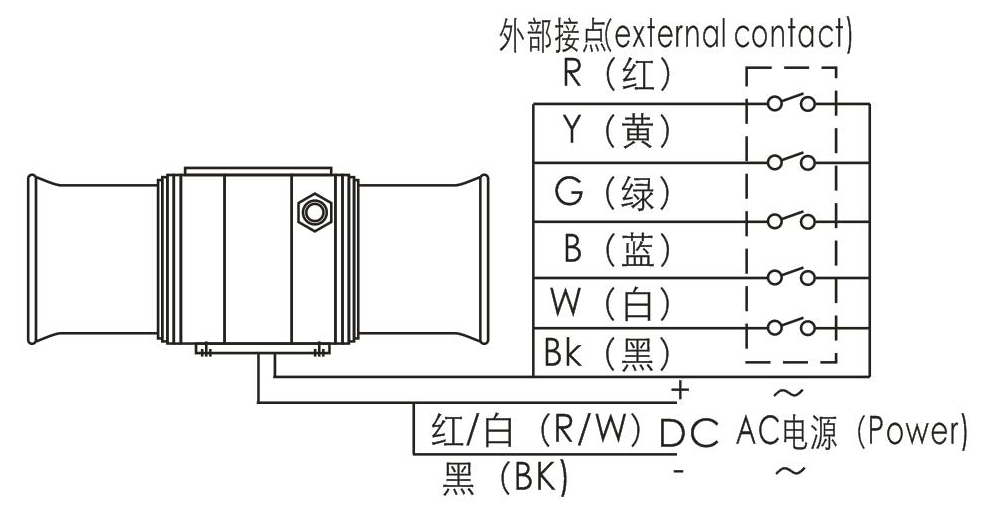

Electrical Interface and Gate Drive Diagnostics

Modern alarm drive electronics utilize solid-state switching topologies to handle strobe pulsing and sounder modulation. Designing these input stages involves gate driver topologies and power-switching conventions similar to those detailed in Insulated-Gate Bipolar Transistor (IGBT) Fundamentals, where controlling gate charge, rise time (t_r), and drain-source voltage (V_DS) spikes protects the switching semiconductors from inductive spikes produced by the sounder’s electromagnetic voice coil.

The following field diagnostics table guides maintenance engineers through troubleshooting typical alarm failure modes on active operational lines:

Gas Group and Temperature Class Verification

Prior to commissioning, engineers must verify that the alarm’s labeling matches the site hazardous-area documentation:

• Gas Group Compatibility: Devices marked IIB are rated for gases such as ethylene, but must not be installed in hydrogen or acetylene atmospheres unless specifically marked IIC. A device marked IIC covers IIA and IIB, but not vice versa.
• Temperature Class (T-Class): The surface temperature rating (T1 to T6) must remain well below the auto-ignition temperature of any gas or dust present. In environments with diethyl ether (AIT = 160 °C), an alarm rated T4 (max 135 °C), T5 (max 100 °C), or T6 (max 85 °C) is acceptable, while a T3 (max 200 °C) unit is strictly forbidden.
• Ingress Protection: Outdoor coastal or desert installations require an ingress rating of at least IP66 or IP67 to prevent heavy rain, ocean salt spray, or fine sand from eroding the acoustic flare or degrading external flame-path gaps.

Adhering to these engineering selection rules, correct torque constraints, and routine diagnostic maintenance ensures that explosion-proof sound and light alarms deliver uninterrupted, life-safety protection across the operational lifespan of the industrial facility.
