How The MR-VMU-RT1176 Solution Simplifies Design and Boosts Performance for Mobile Robotics

What the MR-VMU-RT1176 Solution Is and Its Industrial Significance

Modern mobile robotics encompasses a demanding set of engineering constraints. Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and robotic warehouse platforms must execute simultaneous localization and mapping (SLAM), calculate dynamic trajectories, process safety-critical sensory feedback, and control high-torque traction motors in real time. Historically, system architects met these demands by cobbling together heterogeneous, physically separate printed circuit board assemblies (PCBAs): a central application processor running high-level operating systems, a secondary microcontroller unit (MCU) for CAN bus traffic, dedicated inertial measurement units (IMUs), and external motor speed controllers. This distributed hardware approach increases physical bulk, introduces interconnect reliability risks, and introduces communication latency across industrial serial interfaces.

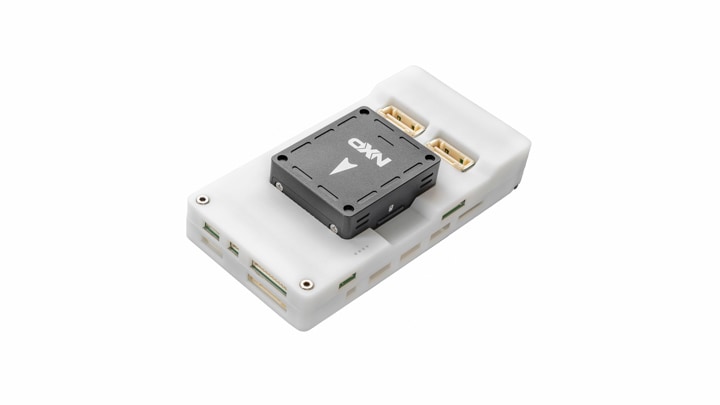

The MR-VMU-RT1176 vehicle management unit addresses this fragmentation by integrating high-throughput computing, deterministic real-time motor control, safety-grade sensing, and communication peripherals onto a singular, hardened embedded hardware solution. At its core is the NXP i.MX RT1176 crossover processor, an architecture engineered to bridge the divide between power-efficient microcontrollers and high-performance application processors. In conjunction with surrounding power electronic stages, the MR-VMU-RT1176 acts as the master coordination and execution brain of the robotic platform.

In modern industrial automation, the significance of this consolidated architecture lies in its direct deterministic coupling to power electronics. A mobile robot relies heavily on efficient energy conversion: battery voltages ranging from 24 V to over 400 V must be translated into multiphase alternating currents to drive brushless direct-current (BLDC) motors or permanent magnet synchronous motors (PMSM). By hosting advanced Field-Oriented Control (FOC) algorithms directly on an asymmetric dual-core processor alongside low-noise sensor fusion engines, the MR-VMU-RT1176 eliminates inter-chip propagation delays. As a consequence, control loop update rates exceed 20 kHz, which stabilizes motor phase currents, suppresses torque ripple, and extends the operational run time of robotic battery packs.

Beyond motor drive execution, the unit resolves complex packaging issues. Industrial robotic designers are constantly pressured to decrease chassis volumes while increasing payload carrying capacities. Transitioning from five separate control boards to an integrated vehicle management unit (VMU) cuts harness wire count by up to 60 percent. This reduction directly mitigates wire-fatigue failures, reduces electromagnetic interference (EMI) radiation loops, and dramatically shortens product validation cycles during industrial robotics deployments.

Working Principle and Physical Architecture of the VMU and Power Stage

The operational functionality of the MR-VMU-RT1176 is rooted in an asymmetric dual-core computing topology coupled with galvanically isolated interfaces that actuate the underlying power switching elements. The processor features an Arm Cortex-M7 core running at frequencies up to 1 GHz alongside an Arm Cortex-M4 core operating at up to 400 MHz. Tasks are partitioned deterministically: the Cortex-M4 core manages high-level network communication, CAN FD protocols, Ethernet connectivity, and sensor filtering, while the Cortex-M7 core handles real-time execution of the vector control transformations (Clarke and Park transforms) and synthesizes high-resolution pulse-width modulation (PWM) waveforms.

To convert low-voltage digital control signals into mechanical movement, the VMU interfaces with an external three-phase power inverter stage. The fundamental building block of this power stage is often the insulated-gate bipolar transistor (IGBT) or power MOSFET module. Understanding how this power stage switches heavy electrical currents requires examining the physical device structure at the semiconductor level.

An IGBT combines the simple voltage-driven gate structure of an insulated-gate field-effect transistor with the high-current conduction capability of a bipolar junction transistor. The device consists of four alternating semiconductor layers (p-n-p-n) controlled by an isolated metal-oxide-semiconductor (MOS) gate. When the MR-VMU-RT1176 directs the gate driver to apply a positive voltage (typically +15 V) between the gate and emitter terminals exceeding the device threshold voltage V_GE(th), an electric field forms across the thin silicon dioxide dielectric layer. This field attracts mobile electrons to the surface of the p-type body region, forming a conductive n-channel (inversion layer).

Once this inversion channel is established, electrons flow from the n⁺ emitter through the channel into the wide, lightly doped n^– drift region. This electron influx acts as the base current for the internal p-n-p bipolar structure. Consequently, the lower p⁺ collector substrate becomes forward-biased and injects a massive density of minority charge carriers (holes) into the n^– drift region. This phenomenon, known as conductivity modulation, floods the high-resistance drift region with electron-hole pairs, drastically dropping the electrical resistance across the collector and emitter terminals. Because of this carrier injection, the forward on-state saturation voltage V_CE(sat) remains remarkably low (typically 1.5 V to 2.2 V) even under currents reaching hundreds of amperes.

To turn the switch off, the VMU sets the PWM line low, commanding the gate driver to reduce the gate voltage to zero or apply a negative bias (such as -5 V to -8 V). The electrostatic inversion channel collapses, immediately halting the electron injection. However, the holes stored in the wide n^– drift region cannot disappear instantaneously; they must be cleared via internal carrier recombination or swept out by the expanding electric field. This produces a characteristic “tail current” during turn-off, which accounts for the majority of turn-off switching losses (E_off). By employing high-speed PWM dead-time insertion at the RT1176 processor level, engineers prevent shoot-through events—catastrophic short circuits caused when upper and lower bridge switches conduct simultaneously.

Key Features, Advantages, and Technology Comparison

The MR-VMU-RT1176 brings distinct architectural advantages to mobile robotics by unifying control hardware and optimizing the performance of downstream switching stages. Traditional industrial mobile systems rely on discrete processing topologies: a central navigation computer sends commands over RS-485 or CAN to multiple low-tier motor drives. In contrast, the centralized crossover architecture eliminates packet serialization delays, clock jitter, and asynchronous command intervals.

Key functional attributes of the MR-VMU-RT1176 include:

• Dual-Core Hardware Isolation: Independent execution domains permit real-time motor control loops to run completely uninhibited by communications overhead, network interrupts, or sensor polling routines.
• Sub-Microsecond PWM Synchronization: Dedicated flexPWM timer modules deliver sub-microsecond complementary edge alignment, hardware fault tripping, and integrated dead-band generation critical for driving high-power IGBT bridges.
• Integrated Inertial & Position Sensing: Direct on-board 6-axis IMU integration with hardware filtering allows continuous dead-reckoning and odometry validation without consuming main CPU bandwidth.
• Deterministic Fieldbus Connectivity: Native hardware support for dual CAN FD, 10/100/1000 Mbps Ethernet, and industrial SPI buses guarantees real-time teleoperation and modular sensor expansion.

When engineering the power stage driven by the VMU, designers must carefully weigh semiconductor switching options. The choice among discrete power MOSFETs, integrated IGBT power modules like the DP15H1200TO101982, high-current assemblies like the QM300HA-H, and wide-bandgap Silicon Carbide (SiC) devices hinges on system voltage, operating frequency, and thermal budgets.

As illustrated in the comparative data above, discrete MOSFETs perform admirably in light-duty, 24 V to 48 V robotic chassis. However, as robot payload capacities increase to support 1-ton to 3-ton industrial logistics operations, traction voltages necessarily scale upward to 300 V–600 V to keep current cabling manageable. Under these operating conditions, the linear forward voltage drop V_CE(sat) of an IGBT module yields substantially lower total conduction losses (P_cond = V_CE(sat) · I_C) than the quadratic I² · R_DS(on) losses of silicon MOSFETs.

Real-World Applications, Implementation, and Operating Precautions

The MR-VMU-RT1176 solution is primarily deployed across demanding commercial and industrial mobile systems. Prominent implementations include automated guided forklifts operating in cold-storage warehouses, high-speed parcel sorting autonomous robots, outdoor agricultural harvesting platforms, and heavy-duty robotic mining inspection carriers. In these systems, the VMU commands three-phase motor bridges configured with modules like the SKD75GAL123D, which integrate input rectifiers and chopper/inverter stages to control differential drive steering and vertical mast lift motors.

Deploying high-power switching stages in conjunction with sensitive digital vehicle management units requires strict adherence to engineering best practices:

1. Thermal Management and Mechanical Assembly

Power semiconductors generate localized heat fluxes during sustained acceleration or high-incline traversal. Thermal energy must transfer efficiently from the die through the copper baseplate to the external aluminum heatsink. Engineers must ensure the mounting surface has a flatness tolerance better than 50 µm over 100 mm and a surface roughness (R_a) not exceeding 1.6 µm. Apply high-conductivity thermal paste evenly to a wet thickness between 50 µm and 100 µm. Excessive grease increases thermal impedance, while insufficient paste leaves microscopic air voids that cause hot spots. Tighten baseplate mounting screws incrementally using a calibrated torque wrench in a diagonal criss-cross pattern to between 2.5 N·m and 5.0 N·m (conforming strictly to the component manufacturer’s mechanical datasheet).

2. Gate Loop Layout and dV/dt Induced Turn-On Prevention

Rapid switching of high currents generates substantial transient voltage spikes across parasitic loop inductances, defined by the relationship V = L · (dI/dt). To suppress dangerous transient overvoltages, place low-inductance ceramic snubber capacitors directly across the positive and negative DC bus terminals of the power module. Furthermore, routing between the gate driver output and the IGBT gate-emitter terminals must be as short as physically possible, utilizing tightly twisted pairs or adjacent PCB trace layers to reduce the gate loop area. If parasitic inductance is excessive, a high dV/dt transition on the collector can inject current through the device Miller capacitance (C_gc), elevating the gate voltage above V_GE(th) and inducing destructive cross-conduction (shoot-through).

3. Galvanic Isolation and Grounding Schemes

The MR-VMU-RT1176 digital circuitry operates at logic levels of 3.3 V and 1.8 V, while the motor bridge operates at lethal traction potentials. Galvanic isolation barriers rated for a minimum of 2.5 kV_RMS must isolate the PWM digital outputs, fault lines, and current-sense feedback circuits. Implement a star-grounding architecture where the noisy chassis earth, the high-current power return, and the sensitive digital logic ground converge exclusively at a single, controlled point to prevent ground loop noise from corrupting RT1176 internal analog-to-digital converters (ADCs).

4. Electrostatic Discharge (ESD) and Gate Protection

The gate oxide of power semiconductors is exceptionally thin (typically under 100 nm) and is prone to irreversible puncture if exposed to electrostatic potentials exceeding ±20 V. Technicians handling the VMU-to-power-stage harnesses must utilize grounded wrist straps and ESD-dissipative workstations. In circuit design, place a 10 kΩ pull-down resistor and bidirectional transient voltage suppressor (TVS) diodes directly across the gate-emitter pins to clamp external voltage spikes during high-vibration vehicle operations.

Engineering Selection Guidelines and Field Diagnostics

Proper component sizing is essential to ensure long-term reliability in mobile robotics. To select appropriate power switches and modules driven by the MR-VMU-RT1176, follow these engineering calculation guidelines:

Voltage and Current Derating Rules

• Breakdown Voltage (V_CES): Select a device rated for 1.5 to 2.0 times the nominal robotic DC traction bus voltage. For a 400 V battery rail, an engineer should select components rated for at least 650 V to 1200 V breakdown. This headroom accommodates inductive voltage spikes that occur during high-current emergency braking or sudden load detachment.
• Continuous Collector Current (I_C): The nominal continuous current of the switch must exceed the maximum continuous RMS phase current of the traction motor by a factor of 1.5 to 2.0 at the highest anticipated operating ambient temperature (typically 65 °C to 85 °C within an enclosed robot enclosure).
• Safe Operating Area (SOA): Verify that the dynamic load line during switching transitions never crosses the boundary of the Forward Biased Safe Operating Area (FBSOA) or Reverse Biased Safe Operating Area (RBSOA) as specified in official engineering resources such as Industrial Power Semiconductor Solutions.

Field Diagnostics and Troubleshooting Matrix

When a mobile robot experiences a hardware drive fault, field technicians must follow a structured bench-test procedure to isolate whether the failure resides in the MR-VMU-RT1176 control signaling, the isolated gate drivers, or the high-power switching silicon. Before performing hardware checks, disconnect all high-voltage battery sources and completely discharge the DC bus busbar capacitors through a 1 kΩ, 50 W ceramic power resistor.

By enforcing rigorous selection standards, adhering to precise mechanical mounting protocols, and applying disciplined diagnostic procedures, system engineers can fully leverage the performance enhancements offered by the MR-VMU-RT1176 vehicle management unit to create robust, resilient, and highly autonomous mobile robotic systems.
