What NGN Power Switching Components Are and Their Industry Significance

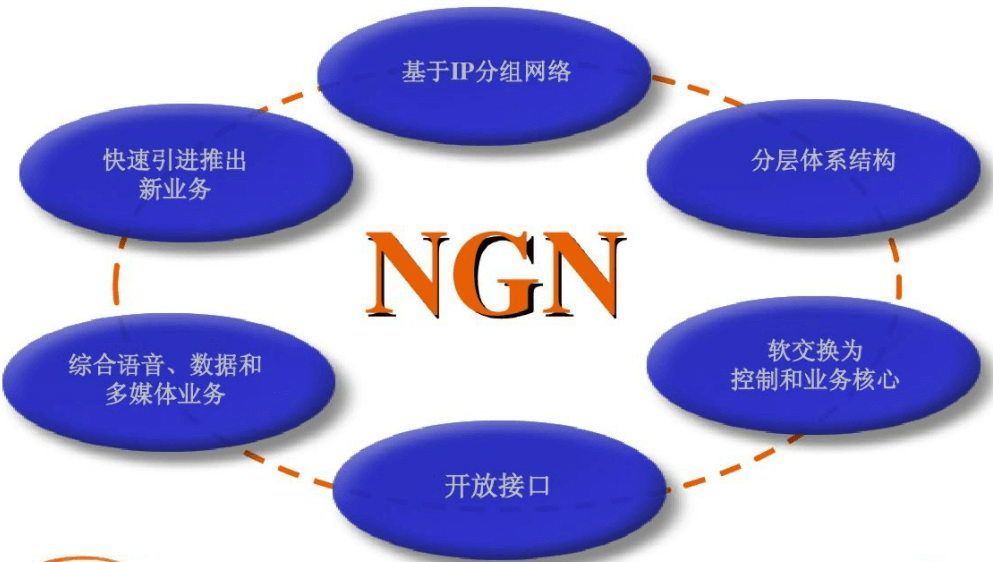

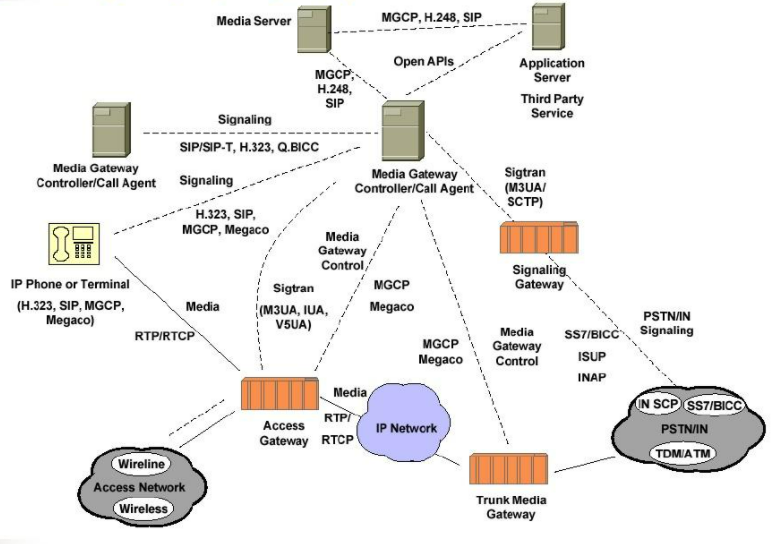

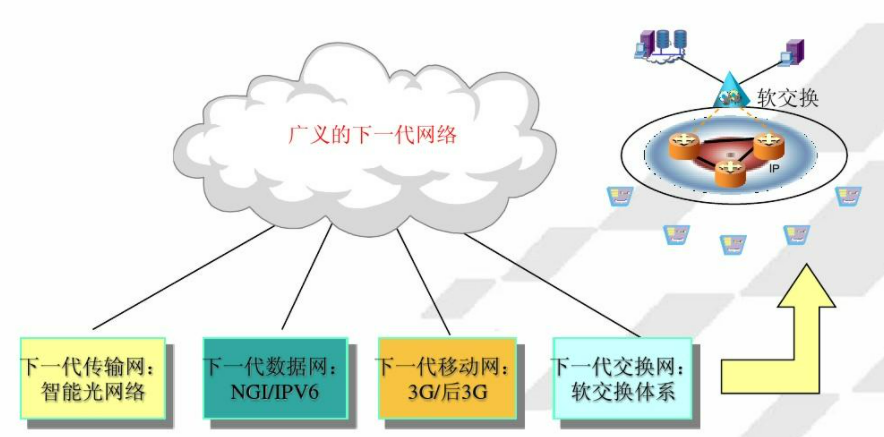

The telecommunications and computing landscape has undergone a profound architectural shift known as the Next-Generation Network (NGN) transition. In traditional infrastructure, communication relied on siloed, circuit-switched Time-Division Multiplexing (TDM) networks, such as Synchronous Digital Hierarchy (SDH) and basic circuit routing. The Next-Generation Network replaces these fragmented systems with a unified, packet-based transport architecture. By leveraging high-bandwidth optical transmission, Automatically Switched Optical Networks (ASON), Generalized Framing Procedure (GFP), and Internet Protocol Version 6 (IPv6), NGN infrastructure consolidates voice, high-speed data, video, and multimedia onto a common packet-switched routing core.

While network engineers often analyze NGN through protocols, optical interfaces, and routing algorithms, this massive aggregation of continuous data transmission introduces an uncompromising electrical challenge: absolute electrical continuity, ultra-dense power conversion, and elevated thermal efficiency. At the physical layer, telecommunications base stations, optical routing nodes, and central office data banks require continuous megawatt-scale power conversion. The electrical backbone must convert high-voltage utility alternating current (AC) into regulated, ripple-free direct current (DC)—conventionally -48 V DC or modern 380 V DC distribution buses—while maintaining zero service interruption through online Uninterruptible Power Supply (UPS) systems and high-efficiency switch-mode power rectifiers.

In modern power conversion, legacy switching devices imposed severe constraints. Power Bipolar Junction Transistors (BJTs) deliver low on-state saturation voltage but demand high continuous base current, resulting in complex, loss-heavy drive circuits. Conversely, high-voltage Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) offer fast switching and simple voltage control, yet their on-state channel resistance (R_DS(on)) increases exponentially as their voltage-blocking rating scales beyond 600 V. This scaling penalty causes unsustainable conduction losses at high current levels.

To overcome this performance bottleneck, modern NGN energy architectures rely heavily on solid-state power switching technologies governed by Power Electronics Principles. Primary among these switches is the Insulated-Gate Bipolar Transistor (IGBT) and its integrated power module assemblies. By uniting the high-impedance, voltage-controlled gate of an input MOSFET with the high-current, low-saturation conduction profile of an output bipolar transistor, these solid-state switching components eliminate the historical compromises of power conversion. They enable compact, multi-kilowatt power supplies, precision motor drives for data center thermal management, and reliable grid-interactive rectifiers that maintain continuous uptime across global NGN telecommunication networks.

Working Principle and Physical Structure of Gate-Controlled Bipolar Devices

To comprehend how power semiconductor components function within NGN power racks and converters, technicians and engineers must examine their internal semiconductor physics. An IGBT is a monolithic, multi-layer semiconductor device featuring a four-layer p-n-p-n structure governed by an insulated MOS gate electrode. Functionally, it operates as a voltage-controlled bipolar device where a low-power electrostatic potential controls large currents traveling between the collector and emitter terminals.

From a cross-sectional perspective, the device comprises an external Collector terminal bonded to a heavily doped p+ semiconductor substrate. Situated above this substrate is an n-type buffer layer (present in punch-through and field-stop designs), followed by a wide, lightly doped n-drift region. The thickness and resistivity of this n-drift region determine the overall forward voltage-blocking capability (V_CES) of the switch. Above the drift layer reside p-type body regions, within which highly doped n+ emitter wells are diffused. A thin layer of silicon dioxide insulator isolates the conductive metallic or polysilicon Gate terminal from the underlying silicon surface.

The switching mechanism proceeds through distinct, controllable states:

• Forward Blocking State: When the gate-to-emitter voltage (V_GE) remains at 0 V or is biased negatively, no conductive path exists between the collector and emitter. When a positive potential is applied to the collector terminal, the internal junction between the p-body and the n-drift region becomes reverse-biased. This junction supports the entire electric field, sustaining blocking voltages ranging from 600 V to well over 1700 V with only minimal leakage current (I_CES).
• Turn-On and Conductivity Modulation: When the gate-to-emitter voltage exceeds the device’s threshold voltage (typically V_GE(th) between 5.0 V and 7.0 V), the electrostatic field attracts mobile electrons toward the gate oxide, creating an n-type conductive inversion channel along the surface of the p-body. Electrons immediately flow from the n+ emitter through this channel into the wide n-drift region. This electron current acts as the base drive for the wide-base p-n-p bipolar transistor formed by the p+ substrate, the n-drift region, and the p-body. In response, the p+ collector injects an abundance of minority carrier holes into the n-drift region. This dual injection of electrons and holes produces intense “conductivity modulation”: the electrical conductivity of the lightly doped drift region increases by several orders of magnitude, causing the forward on-state saturation voltage (V_CE(sat)) to drop to between 1.5 V and 2.5 V during full current conduction.
• Turn-Off and Tail Current Dynamics: When V_GE drops below V_GE(th), the electrostatic inversion channel vanishes, cutting off the supply of electrons to the drift region. However, the minority carrier holes previously injected into the wide n-drift layer cannot vanish instantaneously; they must be cleared via internal carrier recombination or swept out by the expanding depletion boundary. This recombination interval manifests externally as a gradual “tail current.” Modern device design optimizes this transition to minimize turn-off switching energy losses (E_off). Detailed physical mechanics can be further explored through Insulated-Gate Bipolar Transistor (IGBT) Fundamentals.

Key Features, Advantages, and Technology Comparison

Power semiconductors applied in modern telecommunications infrastructure and conversion systems exhibit distinct operational trade-offs. The principal advantage of bipolar conductivity modulation is the dramatic reduction of conduction losses at high current densities. In a pure MOSFET, the drain-to-source on-resistance scales according to the relationship R_DS(on) ∝ V_BR^2.5, where V_BR represents the breakdown voltage. Consequently, high-voltage MOSFETs exhibit elevated resistive losses at currents exceeding tens of amperes. In contrast, the forward voltage drop across an IGBT increases roughly logarithmically with current, resembling a forward-biased diode with a low series resistance.

Over successive technological generations, manufacturing topologies have progressed through three distinct structural eras:

• Punch-Through (PT): Employs an n+ buffer layer over a thick p+ substrate wafer. While offering swift carrier sweep-out during turn-off, it possesses a negative temperature coefficient for V_CE(sat), making direct parallel operation challenging due to the risk of localized thermal runaway.
• Non-Punch-Through (NPT): Built on uniform float-zone silicon wafers without an n+ buffer layer. It yields a rugged short-circuit capability and a positive temperature coefficient of V_CE(sat) at rated current, allowing devices to naturally share current when connected in parallel.
• Field-Stop (FS) Trench: The modern industry standard. Combines an ultra-thin drift wafer with a shallow n-type field-stop layer and vertical trench gates. Trench gates eliminate the parasitic JFET resistance inherent in older planar gates, reducing both conduction losses and turn-off switching times. Modules such as the DP15H1200TO101982 integrate these optimized trench field-stop dies into compact power stages to provide high conversion efficiency with minimal thermal overhead.

The following engineering comparison highlights the operational parameters of mainstream solid-state switching technologies used across power conversion platforms:

Real-World Telecommunication Applications and Operating Precautions

Within the operational framework of Next-Generation Networks, robust solid-state switches serve in critical energy conversion, backup storage, and facility infrastructure systems:

• Central Office Switch-Mode Rectifiers: High-density telecom power systems convert 400 V / 480 V three-phase utility AC into standard -48 V DC distributed power planes. These systems utilize power modules in active Power Factor Correction (PFC) boost stages and resonant DC-DC converters to maintain high power factor (>0.99) and conversion efficiencies exceeding 96%.
• Uninterruptible Power Supply (UPS) Inverters: Critical optical switches and core routing clusters cannot tolerate power flickers. Double-conversion online UPS systems use half-bridge or three-phase bridge modules to synthesize pure sinusoidal AC from secondary battery strings when grid anomalies occur. High-capacity assemblies such as the QM300HA-H support the high-current demands of centralized facility inverters.
• Data Center Precision HVAC Systems: Optical switching hubs and transmission racks dissipate tens of kilowatts of heat per rack. Variable-frequency motor drives (VFDs) running on insulated-gate power modules drive high-efficiency variable-speed scroll compressors and chilled water pumps, modulating thermal output to protect core electronics.

To ensure long operating lifetimes in mission-critical applications, technicians and system designers must observe strict handling and installation precautions:

• Thermal Interface Management: The heat generated within the silicon junction (T_j) must pass through the internal ceramic isolation layer (Al₂O₃ or AlN), through the copper baseplate, and into the heatsink. When mounting power modules, apply thermal grease in a uniform layer between 50 µm and 100 µm thick. Excessive grease increases thermal impedance, while insufficient grease leaves microscopic air voids, causing localized hotspots.
• Mechanical Fastening Torque: Module baseplates must be mounted using calibrated torque screwdrivers. Bolts must be tightened in a cross-pattern sequence to an initial pre-torque (e.g., 1.0 N·m), followed by a final specified torque (typically 3.0 N·m to 5.0 N·m for M5 fixings). Uneven torque distorts the baseplate, damaging internal ceramic isolation substrates or fracturing die solder bonds under thermal cycling.
• Gate Drive Protection and Miller Clamping: High switching speeds (elevated dv/dt) induce displacement currents through the internal gate-collector capacitance (C_GC, also known as the Miller capacitance). This parasitic current flows into the gate drive circuit, generating a voltage bump across the external gate resistor (R_G). If this spike exceeds V_GE(th), it can trigger a destructive shoot-through event across the DC bus. Systems must utilize an active Miller clamp circuit or maintain a negative off-state gate bias (typically -5 V to -8 V).
• Electrostatic Discharge (ESD) Shielding: The silicon dioxide layer under the gate electrode is usually less than 100 nm thick. An electrostatic potential exceeding ±20 V to ±30 V can puncture this dielectric layer, causing permanent gate destruction. Personnel must always handle power modules using grounded wrist straps, anti-static workstations, and shorting clips across the gate-emitter pins prior to soldering or connection.

Engineering Selection Guidelines and Field Diagnostics

Selecting the correct power semiconductor module for telecommunication and industrial conversion hardware requires systematic evaluation of electrical ratings, safe operating margins, and environmental stress profiles:

• Voltage Rating Derating (V_CES): Never operate a device at or near its maximum Collector-Emitter breakdown rating. In high-power converters, stray parasitic loop inductance (L_σ) in busbars and printed traces generates an inductive voltage surge during rapid current turn-off, defined by ΔV = -L_σ × (di/dt). For a steady-state DC bus of 400 V, select modules rated for at least 650 V or 1200 V. For an 800 V bus, select 1200 V or 1700 V modules to provide a minimum safety margin of 25% to 35% above the combined bus voltage and transient overshoot.
• Current Capacity and Thermal Budget: The rated continuous collector current (I_C) on a datasheet is typically specified at a baseplate temperature of 25 °C. In real-world operation, baseplates operate between 75 °C and 90 °C. Designers must compute total losses (conduction loss P_cond + switching loss P_sw) and verify that the steady-state junction temperature remains well within rated limits:

  T_j = T_c + P_loss(total) × R_th(j-c) ≤ T_j(max) (typically 150 °C or 175 °C).
• Freewheeling Diode Pairing: Inductive load switching requires rapid, soft-recovery antiparallel diodes. High reverse-recovery currents (I_rr) amplify turn-on losses in the paired switch and generate electro-magnetic interference (EMI). Integrated half-bridge or chopper topologies, such as the SKD75GAL123D, integrate matched fast-recovery freewheeling diodes to control reverse-recovery oscillations and simplify thermal layout.
• Safe Operating Area (SOA) Boundaries: Ensure that the dynamic trajectory during turn-on and turn-off stays strictly inside the Forward Bias Safe Operating Area (FBSOA) and Reverse Bias Safe Operating Area (RBSOA). For system fault protection, verify that the module provides a certified short-circuit withstand time (t_sc, typically 10 µs at V_GE = 15 V and V_CC = 600 V to 800 V) so that supervisory monitoring circuits can trigger a safe shutdown before thermal destruction occurs.

When investigating system faults, inverters, or rectifiers in the field, technicians can rapidly diagnose power module health using a standard digital multimeter (DMM) with a diode-check function. Prior to testing, discharge all DC bus capacitor banks completely, lock out primary power, and disconnect the gate drive cables from the module terminals.

By pairing rigorous electrical selection principles with disciplined thermal assembly and structured multimeter diagnostics, engineering teams can maintain continuous, long-term power reliability across critical Next-Generation Network routing, switching, and telecommunication facilities.
