Tension controller

What a Tension Controller Is and Its Industry Significance

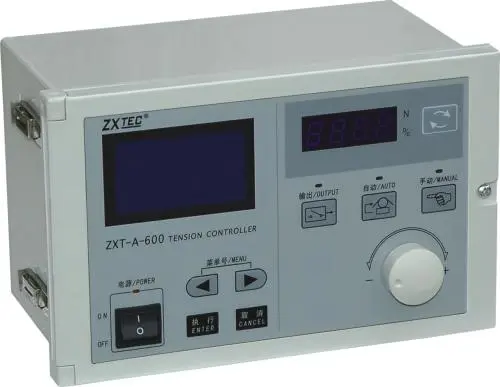

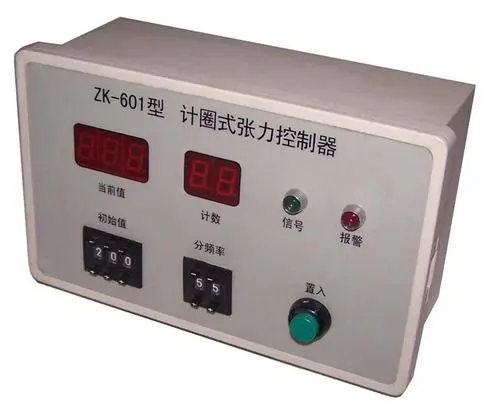

In continuous roll-to-roll manufacturing processes, maintaining a steady, precise mechanical tension on flexible materials is critical to product quality and process reliability. A tension controller is a specialized microcomputer-based or embedded instrumentation system engineered to measure, monitor, and regulate the tensile stress exerted on a moving continuous substrate—frequently termed a “web.” These continuous webs encompass materials such as polymer films, aluminum and copper foils, paper, paperboard, textiles, rubber sheets, optical laminates, and metallic wire. During unwinding, processing, slitting, printing, coating, and rewinding operations, mechanical disturbances inevitably threaten the stability of the substrate.

Without automated tension regulation, web-handling machinery encounters severe physical failure modes. As a roll of material unwinds or rewinds, its diameter changes continuously. Because linear web velocity (v) is related to rotational angular velocity (ω) and instantaneous roll radius (r) by the relationship v = ω · r, and rotational torque (T) relates to web tension (F) by T = F · r, a change in roll diameter directly disrupts the balance of forces. In an uncontrolled system, unwinding a roll at constant brake torque causes linear web tension to escalate dramatically as the radius shrinks, stretching delicate films, shearing webs, or fracturing paper. Conversely, during roll buildup on a rewinder, constant drive torque causes linear tension to decay as the radius expands, resulting in loose rolls, telescoping, internal slippage, and structural roll collapse.

Beyond steady-state diameter shifts, dynamic operating disturbances such as rapid machine acceleration, emergency braking deceleration, mechanical roll eccentricity (out-of-round rolls), and speed-dependent aerodynamic drag introduce transient tension spikes and slacks. A modern tension controller solves these challenges by combining dedicated digital signal processing with high-performance power electronics. The controller continuously reads feedback signals from tension transducers or position dancers, executes high-speed proportional-integral-derivative (PID) compensation loops, and delivers instantaneous correction commands to electromechanical or solid-state power actuators. By decoupling line speed and reel diameter from web tension, tension controllers eliminate material deformation, prevent web breakage, secure micron-level registration in multicolor printing, and guarantee homogeneous roll density across industrial web converting facilities.

Working Principle, System Architecture, and Power Stage Physics

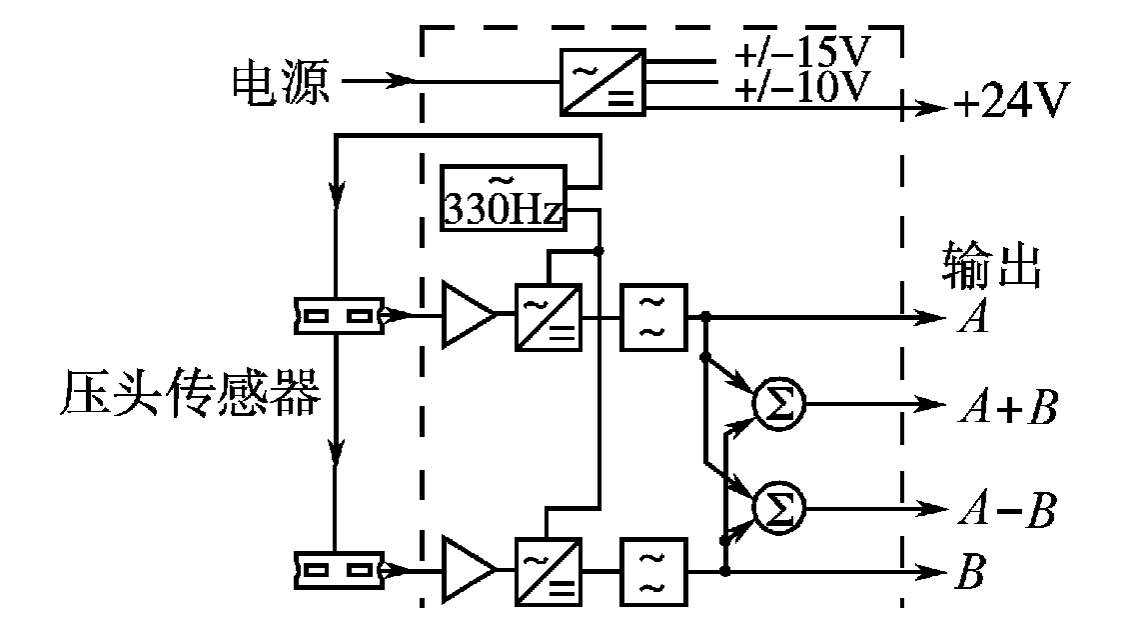

The operational cycle of an automated tension controller operates on a deterministic closed-loop architecture consisting of three physical subsystems: sensor acquisition, digital processing, and power execution. At the input stage, precision tension load cells—typically comprising four-arm foil strain gauges arranged in a Wheatstone bridge configuration—are mechanically coupled to the bearings of an idler roller. As the web traverses this measuring roller, the resultant vector force deforms the load cell flexure, unbalancing the bridge and producing a differential analog signal calibrated in the millivolt range (typically 0 to 20 mV or 0 to 30 mV). This micro-level signal enters an onboard instrumentation amplifier exhibiting a high common-mode rejection ratio (CMRR > 100 dB) to strip electromagnetic interference generated by adjacent industrial machinery. The conditioned signal is filtered and converted into a digital representation via a multi-channel 16-bit or 24-bit analog-to-digital converter (ADC).

Within the central processing unit, the digitized actual tension value (PV) is compared against the target tension setpoint (SV) programmed by the operator. The difference represents the instantaneous error, e(t) = SV – PV. An optimized digital PID algorithm calculates the required compensatory output, integrating proportional gain to handle immediate deviations, integral action to eliminate steady-state offset, and derivative dampening to arrest high-frequency shock loads caused by roll out-of-roundness. Advanced tension controllers further augment the PID output with feedforward algorithms, including roll diameter calculation based on pulse encoders and web-speed ratio tracking.

The calculated digital command must be converted into physical torque or rotational velocity at the actuator—typically a magnetic powder brake, magnetic powder clutch, electric servo motor, or alternating current (AC) vector motor. To control these high-power electromechanical devices, the tension controller interfaces with a dedicated solid-state power switching stage. In high-precision current-regulated controllers driving magnetic powder actuators, pulse-width modulation (PWM) governs the gate of a solid-state switch. In large-scale unwinding and rewinding installations, the output interfaces with an insulated-gate bipolar transistor drive system that governs electrical energy flow between the motor and the electrical power grid.

The physical operation of this solid-state power interface relies on semiconductor field-effect and bipolar conduction mechanisms. The power device integrates a metal-oxide-semiconductor (MOS) gate structure over a four-layer p-n-p-n semiconductor body. In the off-state, when the gate-to-emitter voltage (V_GE) remains below the threshold voltage (V_GE(th)), the device blocks high forward voltage across its wide, lightly doped n-drift region, preventing actuator conduction. When the controller’s internal gate driver applies a positive bias (typically +15 V) exceeding V_GE(th), an electric field creates an electron inversion layer across the p-body channel directly beneath the gate oxide.

Electrons flow from the n⁺ emitter through this inversion channel and emerge directly into the n-drift region. This electron current serves as the base drive for the internal p-n-p bipolar transistor formed by the p⁺ collector substrate, the n-drift layer, and the p-body. In response, the forward-biased collector-drift junction injects a high concentration of minority carrier holes into the n-drift region. This dual carrier injection phenomenon, termed conductivity modulation, floods the high-resistivity drift layer with an electron-hole plasma. The effective bulk resistance collapses dramatically, permitting high continuous collector current (I_C) to flow with an exceptionally low saturation voltage drop, V_CE(sat), typically between 1.5 V and 2.2 V. When the PWM gate drive shifts to zero or a negative bias (such as -5 V to -8 V), the inversion channel closes immediately. Carrier injection terminates, and the stored plasma evacuates through carrier sweep-out and bulk recombination. By switching at frequencies between 2 kHz and 20 kHz, this semiconductor mechanism allows the tension controller to modulate actuator torque smoothly without mechanical friction or thermal runaway.

Key Features, Control Topologies, and Technology Comparison

Tension controllers are deployed in various physical topologies depending on precision requirements, web material sensitivity, and industrial cost structures. A comprehensive engineering evaluation compares manual control, open-loop diameter-tracking control, and full closed-loop load-cell feedback control.

Manual Tension Regulation: This elementary scheme utilizes an adjustable constant-current or constant-voltage DC power supply feeding a mechanical or magnetic brake. The operator observes roll depletion visually and periodically turns a potentiometer knob to attenuate braking torque. This method lacks autonomous error correction, cannot compensate for acceleration inertia, and exhibits poor repeatability, making it unsuitable for modern production lines.

Open-Loop Diameter-Calculating Systems: Open-loop controllers estimate web tension indirectly without measuring physical force on the web. The system continuously tracks the roll radius using ultrasonic distance sensors, laser displacement sensors, or dual proximity encoders (one tracking line speed, one tracking spool shaft revolutions). Because T = F · r, the controller scales its power output proportionally to the estimated radius: I_out ∝ r. Open-loop systems avoid the installation expense and mechanical calibration of load-cell rollers. However, they cannot detect tension disturbances originating from web thickness variations, mechanical eccentricity, dynamic bearing friction, or material thermal expansion.

Closed-Loop Sensor-Feedback Systems: Closed-loop regulation represents the industrial benchmark for high-speed, high-accuracy processing. Tension load cells continuously transmit real-time force data directly to the controller’s instrumentation front-end. The controller dynamically updates its power output at sub-millisecond loop cycle times. Closed-loop units often feature tension taper functionality, where the target setpoint automatically decreases as roll diameter expands during winding. Tapering ensures that the roll interior remains tight while outer layers wind at progressively lower tension, eliminating “starring” (longitudinal buckling) and crushed inner cores.

Real-World Applications and Operating Precautions

Tension controllers are mandatory across automated conversion lines where substrate integrity must be preserved under varying thermal, mechanical, and rotational states. In gravure and flexographic printing presses running at line speeds exceeding 400 m/min, tension controllers prevent substrate stretching between successive color stations. Any longitudinal stretch exceeding 0.05 mm causes optical misregistration, ruining multi-pass printing jobs. In lithium-ion battery manufacturing, ultra-thin copper (6 µm to 9 µm) and aluminum (12 µm to 15 µm) current collector foils require tight tension bounds during continuous cathode and anode slurry coating. Excess tension causes edge wrinkling or micro-fractures, while insufficient tension introduces coating thickness variations that degrade cell electrical capacity.

In high-tonnage rewinding lines and metal slitting facilities, tension controllers govern large alternating-current vector drives and regenerative brake choppers. Such high-power configurations integrate specialized power switching modules. For localized auxiliary winding mechanisms, engineers incorporate discrete compact converter-inverter topologies like the DP15H1200TO101982, which combines three-phase rectification with a 1200 V power inverter stage. On primary high-mass unwinding spools where heavy rolls present enormous rotational inertia, high-power switching modules such as the QM300HA-H handle heavy braking currents, converting continuous mechanical roll energy into regulated electrical energy. When managing overhauling unwinder loads where motors operate in continuous regenerative braking modes, dynamic braking assemblies employ fast-recovery chopper arrangements such as the SKD75GAL123D to divert surplus electrical energy cleanly into external resistor banks, protecting the direct-current (DC) bus from overvoltage destruction.

Operating tension controllers in electrically noisy industrial environments requires adherence to strict electrical and thermal integration precautions:

• Signal Shielding and Common-Mode Separation: Millivolt sensor lines from strain-gauge load cells must utilize individual shielded twisted-pair cabling. Never route these signal cables through the same conduit or cable tray as high-voltage motor lines or PWM brake wiring. High dV/dt switching transients (often exceeding 5 kV/µs) capacitively couple into analog sensor lines, injecting synthetic noise spikes that corrupt PID loops and cause erratic torque oscillations.
• Magnetic Powder Coil Inductive Flyback Protection: Magnetic powder clutches and brakes represent highly inductive loads (inductance L often exceeds several henries). When the controller’s internal power switch modulates the coil current via PWM, interrupting the current generates an inductive flyback voltage spike given by V = -L(di/dt). The controller power stage must be protected by an ultra-fast freewheeling diode (t_rr < 50 ns) connected anti-parallel across the output terminals. Failure of this clamp causes avalanche breakdown of the driving power semiconductor.
• Thermal Dissipation and Torque Specifications: Constant-current tension controller power modules generate continuous thermal losses equal to P_loss = I_rms² · R_DS(on) or I_avg · V_CE(sat). Controllers must be mounted with their heatsinks oriented vertically to facilitate natural convection. When servicing internal power assemblies, engineers must coat thermal interfaces with high-performance silicone paste to minimize junction-to-case thermal resistance R_th(j-c) and tighten mounting fasteners to their specified torque rating (typically 2.5 to 3.5 N·m) to prevent voiding and localized thermal cracking.
• Electrostatic Discharge (ESD) Grounding: Rapidly moving polymer webs, such as biaxially oriented polypropylene (BOPP) or polyester (PET), generate electrostatic potentials exceeding 20 kV through contact and separation friction with idler rollers. Without comprehensive machine grounding, static arcs discharge through the machine chassis into the load cell bearings, entering the controller’s analog front-end and permanently puncturing internal ADC protection diodes. Install carbon-fiber passive static eliminator brushes upstream of the measuring roller and bond machine frames directly to earth ground (ground resistance < 4 Ω).

Engineering Selection Guidelines and Field Diagnostics

Selecting an appropriate tension controller requires evaluating both the electrical control instrument and its corresponding power drive stage. System sizing begins with calculating the required operational tension force window (F_min to F_max) based on web width (W), material thickness (t), and recommended unit tension yield criteria (N/mm or N/m). The system must accommodate roll radius variations by evaluating the reel ratio: K_r = r_max / r_min. For high radius ratios (K_r > 8:1), a simple open-loop controller risks severe errors at minimum diameter; a closed-loop system equipped with taper compensation is strongly recommended.

When selecting the power output stage of the controller or its external switching unit, ensure adequate voltage and current derating. If driving a 24 V DC magnetic powder brake drawing a rated continuous current of 4 A, select a tension controller with an internal power switch rated for at least 10 A continuous and a breakdown voltage rating (V_CES or V_DSS) of no less than 100 V. This conservative derating factor (> 2.5×) accounts for inductive current peaks and transient voltage spikes encountered during rapid deceleration. Furthermore, the maximum switching frequency must balance acoustic noise suppression against internal switching losses, keeping device operation strictly within the Reverse Bias Safe Operating Area (RBSOA).

When a tension control system exhibits erratic behavior, hunting, or complete torque drop, field technicians must follow a structured, step-by-step diagnostic methodology using digital multimeters (DMM), insulation testers, and oscilloscopes.

Through systematic sensor calibration, precise PID tuning, and correct maintenance of the solid-state power stage, industrial tension controllers maintain web stability across continuous converting lines, minimizing substrate waste and securing repeatable manufacturing standards.
