TT425N16KOF Infineon 1600V 425A Thyristor Module

Content last revised on February 5, 2026

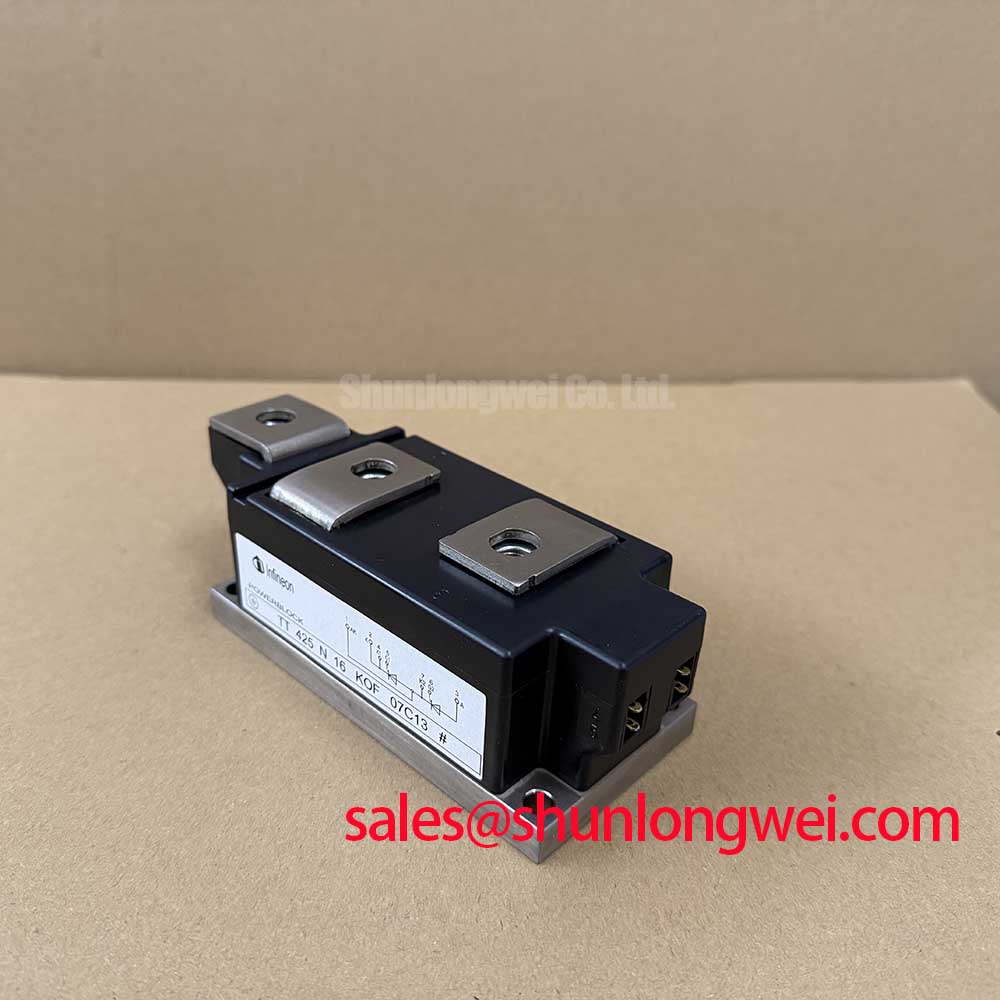

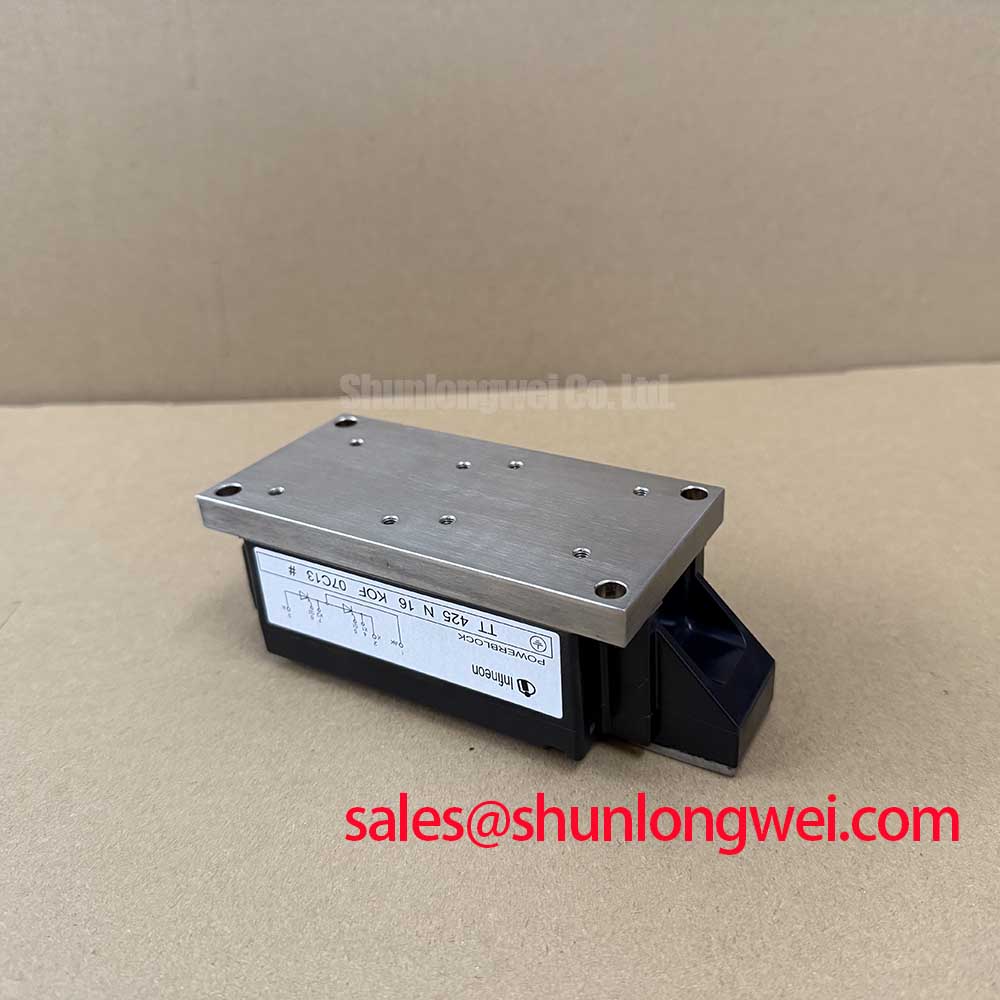

Infineon TT425N16KOF Power Block Thyristor Module for High-Efficiency Phase Control

The Infineon TT425N16KOF, a cornerstone of the Power Block family, is a robust 1600V thyristor/thyristor module engineered to meet the rigorous demands of industrial power conversion. By utilizing advanced pressure contact technology, this module provides a superior alternative to traditional soldered components, specifically addressing the challenges of thermal fatigue in high-current cycling. For engineers designing motor soft starters or static VAR compensators in 400V to 500V industrial grids, this module offers a definitive balance of high surge current capability and long-term structural integrity. For industrial 400V line applications requiring robust phase control under thermal stress, this 1600V thyristor module is the optimal choice.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

The engineering value of the TT425N16KOF lies in its ability to handle significant power densities while maintaining a manageable thermal footprint. Below are the critical performance metrics derived from the official technical documentation:

Download the TT425N16KOF datasheet for detailed specifications and performance curves.

Application Scenarios & Value

Achieving System-Level Benefits in High-Current Power Conversion

In heavy-duty industrial environments, such as large-scale motor drives or industrial heating systems, the TT425N16KOF serves as a critical switch. Consider the challenge of starting a 250kW induction motor: the initial inrush current can reach multiples of the rated current. The ITSM of 14500A allows this module to absorb these massive transients without degradation. By integrating this module into a soft starter configuration, engineers can precisely control the voltage ramp-up, reducing mechanical stress on the drivetrain and electrical stress on the local transformer.

The internal configuration of dual thyristors in a single 60mm housing simplifies the mechanical layout of three-phase bridges. While this model provides a reliable 425A output, for systems requiring even higher power density or handling heavier loads, the related TT500N16KOF06C11 offers a higher current rating within a similar form factor. Conversely, for auxiliary systems or smaller drives, the TT162N16KOF provides a more targeted current specification. Utilizing this module effectively requires a comprehensive understanding of heat dissipation, which is why we recommend consulting our guide on Why Rth Matters to ensure the system remains within its safe operating area.

Technical Deep Dive

A Closer Look at the Pressure-Contact Design for Long-Term Reliability

The technical superiority of the TT425N16KOF is largely attributed to its pressure contact construction. In traditional soldered modules, the mismatch in coefficients of thermal expansion between the silicon, solder, and baseplate leads to "solder fatigue" over thousands of thermal cycles. Pressure contact technology replaces the solder layer with a mechanical clamping force. Think of it like a high-performance engine gasket versus a glued joint; the mechanical pressure ensures consistent electrical and thermal contact even as materials expand and contract. This design significantly extends the power cycling capability, making it the industry standard for mission-critical rectifiers and UPS systems where 24/7 uptime is mandatory.

Industry Insights & Strategic Advantage

Driving Grid Stability in the Era of Renewable Integration

As industrial grids evolve to incorporate more intermittent renewable sources, the demand for dynamic power quality correction has surged. The TT425N16KOF is a primary component in modern Static VAR Compensators (SVC) and thyristor-controlled reactors. These systems require rapid phase control to stabilize voltage fluctuations and compensate for reactive power. The 1600V rating provides a necessary safety margin against grid voltage spikes, while the 425A capacity supports the high-energy throughput required for utility-scale stability. This alignment with modern power quality standards (such as IEC 61800-3) ensures that systems built with these modules are prepared for the increasingly complex electrical environments of Industry 4.0. For more on diagnosing and maintaining these robust modules in the field, see our Field Engineers Handbook.

FAQ

Common Technical Inquiries Regarding the TT425N16KOF

• How does the RthJC of 0.039 K/W influence the selection of a heatsink for the TT425N16KOF?
  The exceptionally low RthJC of 0.039 K/W means that heat is transferred very efficiently from the junction to the module base. This allows engineers to use smaller heatsinks compared to modules with higher thermal resistance, or alternatively, to run the module at higher currents while maintaining the same junction temperature margin.
• Why is a 1600V rating preferred for a 480V industrial line application?
  In a 480V RMS system, the peak line voltage is approximately 678V. However, industrial lines are prone to inductive switching spikes and lightning transients. A 1600V rating (VDRM) provides a safety factor of over 2.3x, ensuring the thyristors do not reach avalanche breakdown during routine grid disturbances.

What is the primary benefit of its pressure-contact design? Enhanced long-term reliability by eliminating solder fatigue.

For assistance with complex thermal calculations or integration strategies, our technical support team is available to assist with your evaluation.
