What a Turbine Governor Is and Its Industrial Significance

A turbine governor is the primary automatic regulation and control apparatus deployed in hydroelectric, steam, and gas turbine power generation systems. Its fundamental purpose is to continuously monitor, adjust, and stabilize the rotational speed (frequency) and mechanical power output of the turbine-generator set under fluctuating electrical grid loads and dynamic fluid flow conditions. In any alternating current (AC) power grid, grid frequency (typically 50 Hz or 60 Hz) is directly coupled to the rotational velocity of synchronous generators. Any mismatch between mechanical power input (supplied by water, steam, or gas) and electrical load demand causes instantaneous rotor acceleration or deceleration. The turbine governor acts as the central real-time feedback controller that senses speed deviations and modulates fluid intake via guide vanes, control valves, or wicket gates to maintain equilibrium.

In modern utility networks and distributed generation infrastructures, the turbine governor solves several critical engineering challenges:

  • Grid Frequency Regulation: By executing primary frequency response (governor droop response) and secondary frequency control via Automatic Generation Control (AGC), the governor ensures that frequency excursions remain within statutory operational limits (typically within ±0.05 Hz to ±0.2 Hz under normal conditions).
  • Safe Startup, Synchronization, and Shutdown: The governor manages automated acceleration profiles from standstill to rated synchronous speed, accomplishes phase and voltage synchronization with the grid, and executes controlled load rejections or emergency trips during catastrophic grid faults without inducing destructive overspeed.
  • Hydraulic and Thermal Stress Mitigation: Uncontrolled valve or gate movements can trigger severe hydraulic transients (water hammer in penstocks) or extreme thermal gradient shocks in steam chests. Governors regulate gate opening and closing speeds within precise rate-of-change limits (servomotor traversing times), protecting high-pressure piping and turbine runners.
  • Power System Stability: Governors dynamically mitigate low-frequency power oscillations across interconnected transmission corridors by rapidly balancing active power, interacting cooperatively with excitation systems and power system stabilizers (PSS).

With the widespread integration of non-synchronous renewable energy sources (such as solar photovoltaic and wind generation), total grid inertia has declined globally. Consequently, modern turbine governors must deliver significantly higher response bandwidth, tighter deadbands, and advanced programmable logic to maintain regional and national grid integrity.

Turbine Governor Electro-Hydraulic Closed Loop Control Architecture
Figure 1: Closed-loop architecture of an electro-hydraulic turbine governor system.

Working Principle and Physical Architecture

The operational cycle of a turbine governor functions on closed-loop negative feedback control principles. The fundamental physical loop comprises speed/frequency measurement, error signal computation, electronic algorithm processing (PID/state-space regulation), electro-hydraulic signal amplification, and mechanical actuation of the turbine flow control mechanism.

1. Sensing and Signal Processing

Rotational velocity is continuously measured using redundant magnetic speed pickups installed over a toothed wheel mounted on the turbine shaft, optical encoders, or directly from generator terminal voltage frequency transformers. This measured frequency (fmeas) is compared with the target frequency reference (fref) and active power setpoint (Pref) in a high-speed digital signal processor (DSP) or programmable logic controller (PLC). The deviation (error signal Δf = fref − fmeas) is processed through a Proportional-Integral-Derivative (PID) algorithm with adjustable gain constants (Kp, Ki, Kd) and permanent speed droop coefficients (bp or R).

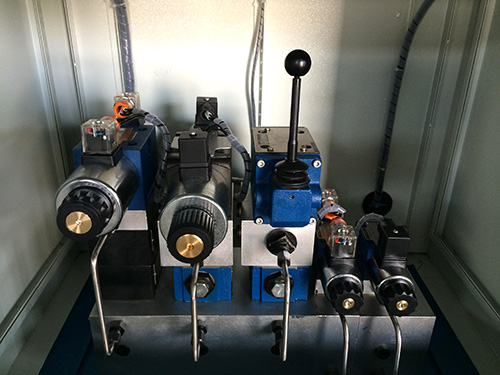

2. Electro-Hydraulic Conversion and Amplification

Because the mechanical force required to displace multi-ton wicket gates (in hydro plants) or high-pressure throttle valves (in steam plants) often exceeds tens or hundreds of kilonewtons, low-level electronic control signals (typically 4–20 mA, ±10 V, or pulse-width modulated current) must undergo multistage power amplification:

  • Electro-Hydraulic Interface: The controller output drives an electro-hydraulic proportional valve, a voice-coil actuator, or a high-response servo valve (such as a flapper-nozzle or jet-pipe design). The electronic current creates an electromagnetic force that shifts a miniature pilot spool against precision centering springs.
  • Pilot and Main Distributing Valves: The pilot valve directs high-pressure control oil (operating at system pressures from 4.0 MPa to over 16.0 MPa) to the control chambers of the main distributing valve. This spool shifts proportionally, routing high-volume hydraulic fluid to the main actuator cylinders.
  • Servomotor Actuators: Hydraulic cylinders (main servomotors) mechanically couple to the turbine regulating ring, operating the wicket gates, nozzle needles, or steam throttle valve linkages. Linear variable differential transformers (LVDTs) or magnetostrictive position sensors on the cylinder provide high-resolution position feedback back to the digital controller, establishing an inner position control loop.

3. Hydraulic Power Supply Unit (HPU)

The governor relies on a dedicated hydraulic pressure supply system composed of high-pressure motor-driven oil pumps, hydraulic accumulators (piston-type or bladder-type nitrogen-charged accumulators), fine-mesh duplex filtration systems (typically 3 µm to 5 µm absolute rating), oil-water heat exchangers, and safety relief valves. The accumulators store sufficient hydraulic energy to execute full emergency closure strokes even during a total station blackout.

Key Control Modes, Performance Characteristics, and Technology Comparison

Governors operate under multiple selectable control modes designed for specific power plant operating regimes:

  • Speed (Frequency) Control Mode: Utilized during un-synchronized conditions (startup, idling, and synchronizing) to bring the unit smoothly to rated synchronous speed and lock phase angle with the transmission grid.
  • Droop (Power-Frequency) Mode: Standard grid-connected operating mode where power output automatically varies proportionally to frequency deviations according to a preset droop slope (typically set between 2% and 6%). This ensures stable load sharing among multiple parallel-running generators across the grid without mutual fighting.
  • Power / Gate Opening (Load) Control Mode: The governor regulates generator active power output (MW) or raw servomotor opening stroke to a fixed setpoint dictated by the plant supervisory control and data acquisition (SCADA) system or dispatch operator.
  • Water Level / Pressure Control Mode: Frequently used in run-of-river hydro stations to maintain upstream forebay water levels within narrow limits while maximizing energy generation.

The progression of turbine governing technology has transitioned from flyweight mechanical systems to high-speed digital electro-hydraulic platforms. The table below provides a detailed engineering comparison of governor technologies across key performance and architectural parameters.

Parameter / Feature Mechanical-Hydraulic Governor Analog Electro-Hydraulic Modern Digital Electro-Hydraulic (DEH)
Speed Sensing Accuracy ±0.5% to ±1.0% (centrifugal flyweight) ±0.1% to ±0.2% (tachometer generator) ±0.01% (digital pulse counting, multi-channel)
Response Deadband (Speed) > 0.10 Hz (large mechanical friction) 0.03 Hz to 0.05 Hz < 0.01 Hz (programmable down to 0.005 Hz)
Dynamic Response Time Slow (200 ms to 500 ms delay) Moderate (50 ms to 100 ms) Fast (< 20 ms loop execution cycle)
Operating Oil Pressure Low (1.6 MPa to 2.5 MPa) Medium (4.0 MPa to 6.3 MPa) High (6.3 MPa to 16.0+ MPa)
Control Flexibility Rigid mechanical linkages, fixed cams Potentiometers, discrete operational amplifiers Fully programmable PID/H-infinity, 3D on-cam tables
Fault Diagnostics & Redundancy None (purely manual visual inspection) Limited analog alarm circuits Dual/Triple Modular Redundancy (TMR), self-diagnostics
Maintenance Overhead High (frequent mechanical wear, pivot lubrication) Moderate (drift in analog circuits, calibration) Low (solid-state electronics, condition-monitored valves)

Power Electronics Integration, Actuation Drives, and Operational Precautions

Modern turbine governing architectures increasingly rely on sophisticated power electronics systems for electro-mechanical actuator drives, electric servo valve excitation, high-reliability uninterrupted power supplies, and auxiliary pump motor control.

1. Electric Actuator Inverters and Power Semiconductor Stages

While large-scale installations use hydraulic servomotors, small-to-medium turbines and micro-hydro systems are rapidly transitioning to direct all-electric servo actuators. These systems eliminate flammable hydraulic oil entirely, replacing oil cylinders with high-torque brushless permanent magnet synchronous motors (PMSM) coupled to precision planetary roller screws. The motor drive inverter relies on advanced semiconductor power switches, such as insulated-gate bipolar transistors (IGBTs) or power MOSFET modules operating under space vector pulse-width modulation (SVPWM).

High-reliability power switching modules, such as the DP15H1200TO101982 or the robust SKD75GAL123D bridge configuration, serve as critical driver components in variable-frequency drives (VFDs) running the hydraulic accumulator charging pumps. For heavy-duty continuous excitation and high-current solenoid drive circuits in large steam valve trip manifolds, modules like the QM300HA-H provide high safe operating area (SOA) margins and reliable thermal transfer characteristics under continuous industrial duty cycles.

2. Thermal and Electrical Design Precautions

To prevent electronic degradation and actuator malfunction in high-vibration, high-temperature power house environments, engineers must enforce rigorous design practices:

  • Heatsink Thermal Management: Ensure thermal contact surfaces between power semiconductor baseplates and heatsinks are flat to within 50 µm and dressed with high-thermal-conductivity grease (recommended layer thickness 50–100 µm). Tighten module mounting bolts with calibrated torque wrenches to specified values (e.g., 2.5 N·m to 5.0 N·m depending on hardware size) to prevent thermal-fatigue cracking.
  • Electromagnetic Interference (EMI) Shielding: Turbine halls experience substantial transient electrical noise generated by generator circuit breakers, excitation exciters, and high-voltage busbars. All low-level speed sensor lines, LVDT cables, and analog command loops (4–20 mA) must use double-shielded twisted pairs with shields grounded at a single dedicated instrumentation star point.
  • Electrostatic Discharge (ESD) and Transient Surge Suppression: Electronic governor cards and gate driver boards require robust TVS diode arrays and metal-oxide varistors (MOVs) across input power terminals to absorb inductive switching spikes and electrostatic discharges during maintenance handling.

3. Hydraulic Fluid Cleanliness and Cavitation Prevention

Over 75% of electro-hydraulic governor failures originate from hydraulic oil degradation or contamination:

  • Particulate Filtration: Mineral-based turbine oils (ISO VG 32 or VG 46) or fire-resistant phosphate ester fluids (EHC systems) must maintain a cleanliness level of at least ISO 4406 Class 15/13/10. Particulate ingress will cause silt lock or spool erosion in high-precision electro-hydraulic servo valves.
  • Water and Air Contamination: Moisture promotes oil oxidation, creates rust particles, and damages proportional valve seals. Free air in the hydraulic circuit induces oil compressibility, leading to governor hunting, erratic servomotor stepping, and high-frequency acoustic cavitation inside valve metering orifices.

Engineering Selection Guidelines and Field Diagnostics

Specifying the proper governor system requires rigorous evaluation of the mechanical, hydraulic, and electrical dynamics of the generating unit. Engineers must calculate total governing work capacity (Egov), rated servomotor stroke (S), and required traversing times based on plant hydraulic inertia (water starting time Tw) and mechanical inertia (unit starting time Tm).

Governor Sizing and Selection Criteria

  1. Servomotor Work Capacity: The nominal governor capacity (expressed in N·m or Joules) is determined by the maximum hydrodynamic and frictional torque exerted on the gate linkage during worst-case load rejection under maximum static head:

    Work Capacity = Maximum Cylinder Force (N) × Servomotor Stroke Length (m)

    A safety design margin of 1.5 to 2.0 times the maximum calculated operating force must be applied to overcome static friction (stiction) and sediment accumulation along the gate tracks.

  2. Operating Pressure Selection: High-head, large-capacity stations typically select high-pressure oil systems (10.0 MPa to 16.0 MPa) to minimize accumulator tank volume, piping diameter, and servomotor cylinder physical footprint. Smaller units typically use standard 4.0 MPa to 6.3 MPa systems for ease of local maintenance.
  3. Redundancy Level: Base-load utility units require Dual Redundant Digital Controllers (Hot-Standby) with dual independent power supplies (e.g., 220 VDC station battery backed by 230 VAC UPS) and triple speed-sensor voting logic (2-out-of-3 selection) to prevent inadvertent trips upon single-channel transducer failure.
Turbine Governor Field Diagnostics and Calibration Workflow
Figure 2: Systematic diagnostic and signal validation loop for digital electro-hydraulic governors.

Field Diagnostics and Troubleshooting Matrix

When abnormal behavior occurs in the field, technicians should execute structured testing starting from digital input/output checks, followed by coil resistance and semiconductor diode-mode verification, and concluding with hydraulic pressure balance checks. The table below outlines common turbine governor faults, root causes, and corrective actions.

Symptom Probable Root Cause Diagnostic Check / Test Point Corrective Engineering Action
Governor Hunting (Continuous Speed/Load Oscillation) 1. Excessive PID proportional gain (Kp) or derivative gain (Kd).
2. Mechanical backlash or LVDT feedback sensor looseness.
3. Entrained air in hydraulic lines. 		– Check frequency spectrum of oscillation (fast vs. slow).
– Measure mechanical play on LVDT core rod (< 0.02 mm allowed).
– Bleed air test cock on servomotor cylinder heads. 		Retune PID parameters using frequency response methods; eliminate mechanical linkage slop; bleed hydraulic circuit until clear oil discharges without foaming.
Sluggish Actuator Movement / High Response Lag 1. Main pilot filter or servo valve inlet screen clogged.
2. Low system accumulator pressure.
3. Excessive cylinder seal friction or binding linkage. 		– Measure differential pressure (ΔP) across duplex filters.
– Verify accumulator N2 pre-charge pressure with charging gauge.
– Check cylinder supply pressure during stroke. 		Switch over and replace dirty filter elements; recharge nitrogen bladder to nominal pressure (typically 65%–70% of minimum working oil pressure); inspect and lubricate mechanical pins.
Servo Valve Zero Drift / Gate Creep 1. Thermal or mechanical zero bias shift on torque motor.
2. DC offset drift in analog output module.
3. Internal leakage past main distributing valve spool lands. 		– Measure command current at valve coil terminals with zero setpoint input.
– Multimeter check: Verify coil balance resistance (typical 40 Ω to 200 Ω).
– Measure leakage return line flow rate. 		Adjust mechanical null bias screw on servo valve; recalibrate analog output channel calibration in controller software; replace worn spool-sleeve assembly if leakage exceeds allowable limit.
Speed Signal Loss / Intermittent Reading 1. Magnetic speed pickup air gap too wide.
2. Sensor cable shielding degradation (EMI pickup).
3. Broken sensor coil winding. 		– Measure sensor gap using non-magnetic feeler gauge (standard: 0.8 mm to 1.5 mm).
– Multimeter resistance test across pickup leads (typical: 500 Ω to 1500 Ω).
– Oscilloscope inspection for clean sinusoidal/square waveform. 		Reset pickup gap to exact manufacturer specification; replace defective magnetic sensor; verify cable shield connection to instrument ground.
Electronic Actuator Drive Fault (VFD / Solid-State Drive) 1. Power IGBT module thermal breakdown or gate punch-through.
2. DC-link overvoltage during rapid deceleration (regenerative energy).
3. Heatsink fan failure or thermal paste degradation. 		– Multimeter diode test across Collector-Emitter (forward drop ~0.4 V to 0.7 V; reverse open).
– Gate-Emitter resistance check (must show open circuit / high resistance > 1 MΩ).
– Inspect heatsink surface temperature with infrared thermometer. 		Replace damaged semiconductor power module; install or verify external braking resistor for regenerative energy absorption; clean heatsink fins and reapply thermal compound.

Through systematic adherence to rigorous electro-hydraulic maintenance schedules, continuous oil cleanliness surveillance, robust shield grounding, and periodic PID loop tuning, power generation facilities can guarantee the long-term operational reliability, stability, and safety of their turbine governing systems.
