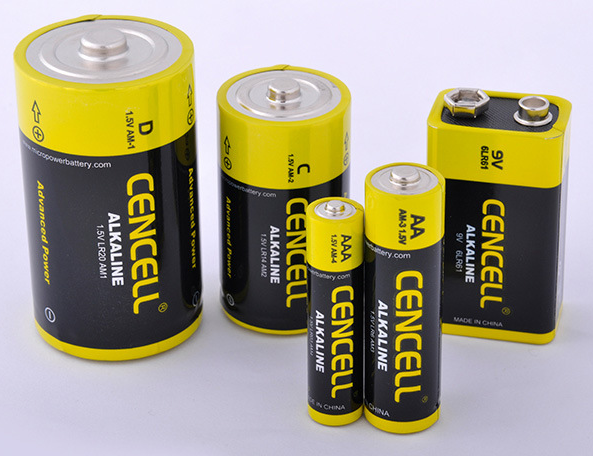

Zinc-manganese dry battery

What This Component Is and Its Industry Significance

In modern electrical and electronic engineering, chemical power sources provide localized, autonomous energy storage that operates independently of the primary alternating current (AC) grid. Chemical power sources are broadly categorized into three core classifications: primary batteries (non-rechargeable galvanic cells designed for single discharge lifecycles), secondary batteries (rechargeable electrochemical systems such as lead-acid, nickel-metal hydride, and lithium-ion), and fuel cells (continuous catalytic reactors utilizing external reactant feeds). Among primary electrochemical systems, the zinc-manganese dry battery—commonly designated as the Zn-MnO₂ cell—remains one of the most widely deployed, cost-effective, and standardized direct current (DC) sources in electrical engineering.

The term “dry battery” historically distinguishes these modern cells from early 19th-century wet cells, which relied on liquid electrolytes prone to spillage, evaporation, and orientation constraints. In a dry battery, the electrolyte is immobilized in the form of an aqueous paste, gel, or absorbed within a porous separator matrix. This mechanical design enables operation in any physical orientation without electrolyte leakage under nominal conditions. The zinc-manganese family comprises two primary chemistry branches: conventional acid zinc-carbon (Leclanché and zinc chloride formulations) and alkaline zinc-manganese dioxide cells.

From an industrial perspective, the zinc-manganese dry cell provides stable, low-noise autonomous DC power across a broad operational temperature range. While high-power industrial machinery and variable-frequency systems rely on sophisticated switching networks and solid-state modules detailed in Power Electronics Principles, low-voltage control circuits, portable diagnostic instruments, environmental data loggers, wireless sensor nodes (WSNs), and emergency backup clocks require independent, galvanically isolated power. The zinc-manganese dry cell fulfills this role by delivering consistent nominal potentials (1.5 V per cell), extended shelf life (up to 7 to 10 years in modern alkaline formulations), zero maintenance requirements, and standardized form factors (such as IEC LR6/AA, LR03/AAA, LR14/C, LR20/D, and 6LR61/9V).

Understanding the internal dynamics, electrochemistry, and discharge limitations of Zn-MnO₂ cells is essential for hardware design engineers. Poor component selection or improper power budget calculations can lead to premature system brownouts, passivated cell contacts, or corrosive electrolyte leakage that damages sensitive printed circuit board (PCB) traces.

Working Principle and Physical Structure

The operation of a zinc-manganese dry battery relies on a spontaneous oxidation-reduction (redox) reaction between metallic zinc (the reducing agent/anode) and manganese dioxide (the oxidizing agent/cathode). The mechanical construction and chemical pathways differ substantially between acid-based and alkaline-based architectures.

1. Acid Zinc-Carbon (Leclanché and Zinc Chloride) Construction

In standard acid zinc-carbon cells, the negative electrode consists of an extruded zinc (Zn) metal outer cylinder that serves simultaneously as the active electrochemical anode and the structural container. Inside the cylinder, an electrolytic paste composed of ammonium chloride (NH₄Cl), zinc chloride (ZnCl₂), and water is suspended in a starch or flour gelling agent. In premium “heavy-duty” variations, NH₄Cl is eliminated in favor of a pure aqueous ZnCl₂ electrolyte, which reduces polarization and extends service life under moderate loads.

The positive active mass consists of finely milled manganese dioxide (MnO₂) powder blended with acetylene black (carbon black) or graphite to enhance electrical conductivity, as pure MnO₂ exhibits high electrical resistivity. A porous carbon rod is inserted axially into the center of the cathode mass. The carbon rod is chemically inert; it does not participate in the redox reaction but serves as the current collector to transfer electrons to the external positive terminal cap.

The fundamental half-cell and overall redox reactions in an acid zinc-carbon cell are expressed as follows:

• Anodic Oxidation (Negative Electrode):
  Zn → Zn²⁺ + 2e^–
• Cathodic Reduction (Positive Electrode):
  2MnO₂ + 2NH₄⁺ + 2e^– → Mn₂O₃·H₂O + 2NH₃
• Coordination Complex Formation:
  Zn²⁺ + 2NH₃ + 2Cl^– → [Zn(NH₃)₂]Cl₂

2. Alkaline Zinc-Manganese Dioxide Construction

The alkaline zinc-manganese battery utilizes a geometrically “inside-out” topology compared to the acid zinc-carbon cell. The external structural housing is a nickel-plated steel can that connects directly to the positive cathode terminal. Pressed against the inner perimeter of the steel can is the cathode material: a high-density compacted ring of electrolytic manganese dioxide (EMD) blended with graphite conductors.

A semi-permeable, non-woven fabric separator lines the interior of the cathode cylinder, allowing hydroxide ions (OH^–) to migrate freely while preventing physical contact and electrical short-circuits between the electrodes. The central core contains the anode material, which consists of a gelled slurry of high-purity zinc powder dispersed in potassium hydroxide (KOH, typically 35% to 40% concentration) and a polyacrylic acid binder. A brass or copper current collector pin penetrates into this central zinc gel core to conduct electrons to the negative terminal base plate.

The electrochemical reactions occurring in the alkaline medium proceed as follows:

• Anodic Oxidation (Negative Electrode):
  Zn + 2OH^– → ZnO + H₂O + 2e^– (proceeding via the intermediate zincate ion [Zn(OH)₄]^2-)
• Cathodic Reduction (Positive Electrode):
  2MnO₂ + 2H₂O + 2e^– → 2MnO(OH) + 2OH^–
• Overall Cell Reaction:
  Zn + 2MnO₂ + H₂O → ZnO + 2MnO(OH)

By utilizing zinc powder instead of a solid zinc sheet, the electrochemically active surface area is increased by more than an order of magnitude. Combined with the exceptionally high ionic conductivity of the KOH electrolyte, this internal architecture dramatically lowers internal equivalent series resistance (ESR), mitigates concentration polarization, and enables superior discharge capability under high continuous and pulsed current demands.

Key Features, Advantages, and Technology Comparison

When selecting a primary electrochemical power source for low-voltage circuits, embedded microcontrollers, or field diagnostic devices, engineers must evaluate several key physical and electrical characteristics:

• Nominal Cell Voltage and Discharge Curve: Both acidic and alkaline Zn-MnO₂ cells exhibit an initial open-circuit voltage (OCV) of 1.55 V to 1.62 V at full charge. Under load, the operating voltage slopes downward throughout the discharge cycle toward an end-of-life cut-off threshold of 0.8 V to 0.9 V per cell.
• Internal Resistance (ESR): Standard acid zinc-carbon cells possess relatively high internal impedance (0.5 Ω to 2.0 Ω for fresh AA sizes), causing substantial voltage drop (I·R loss) under high current drains. Alkaline cells maintain much lower ESR (0.1 Ω to 0.3 Ω for fresh AA sizes), preserving output voltage regulation under dynamic pulsed loads.
• Volumetric and Gravimetric Energy Density: Alkaline systems achieve energy densities ranging from 120 Wh/kg to 160 Wh/kg (and up to 350 Wh/L), providing approximately 3 to 5 times the volumetric capacity of conventional zinc-carbon configurations.
• Self-Discharge Rate and Shelf Life: Zinc corrosion in acidic media generates hydrogen gas over time, limiting shelf life to 2 to 3 years. Alkaline formulations utilize specialized corrosion inhibitors, high-purity zinc alloys (alloyed with trace bismuth, indium, and aluminum), and impermeable seals to suppress hydrogen outgassing, maintaining over 85% capacity after 7 to 10 years of ambient storage.

The following engineering comparison table highlights the performance metrics across primary and secondary low-voltage battery technologies, providing benchmark data for selecting the appropriate power source:

Real-World Applications and Operating Precautions

Zinc-manganese dry batteries are optimized for low-to-medium drain applications where low initial hardware cost, standardized user replacement, and long quiescent standby periods are paramount. Typical application domains include:

• Handheld Test and Measurement Equipment: Digital multimeters (DMMs), insulation testers, optical power meters, and portable gas detectors rely on 9V (6F22/6LR61) or multi-cell AA alkaline packs to ensure galvanic isolation from high-voltage main circuits.
• Industrial Building Automation and Security: Smoke detectors, wireless ambient temperature/humidity sensors, smart gas meters, and door lock solenoids utilize alkaline cells to achieve multi-year maintenance intervals.
• Auxiliary Backup Subsystems: Real-time clock (RTC) circuitry and non-volatile SRAM backup domains in industrial automation controllers utilize Zn-MnO₂ cells to retain register states during main grid outages. In large industrial installations where power conversion is driven by high-capacity rectifiers and inverter modules such as the SKD75GAL123D half-bridge bridge system, auxiliary battery-backed supervisory circuits monitor gate drives, relay latching, and safety interlocks independently of the primary DC bus.
• Power Switching and Converter Interfaces: In hybrid microgrid and uninterruptible power supply (UPS) test benches, dry cell arrays frequently power isolated gate-drive signaling circuits or isolated reference sensors. These sub-circuits monitor switching stages operating alongside heavy-duty switching assemblies such as the QM300HA-H module or integrated power configurations like the DP15H1200TO101982 power stage.

Engineering Precautions and Failure Prevention

To ensure system reliability and avoid hardware degradation, hardware engineers must design battery compartments and power conditioning interfaces in accordance with several physical and electrical guidelines:

1. Electrolyte Leakage Mechanisms: Leakage in Zn-MnO₂ cells is caused primarily by zinc container perforation in acid cells (as zinc is consumed during discharge) or hydrogen pressure accumulation within alkaline cells. When deep discharge drives cell potential below 0.6 V, secondary reactions generate excessive hydrogen gas. If internal pressure exceeds the burst threshold of the mechanical pressure relief vent, potassium hydroxide (KOH) electrolyte escapes. KOH readily reacts with airborne carbon dioxide (CO₂) to form corrosive potassium carbonate (K₂CO₃) white crystals, which rapidly corrode copper PCB traces and battery terminals. Compartments should isolate battery bays from main electronic assemblies and include gold-plated or nickel-plated beryllium copper leaf spring contacts.

2. Reverse Polarity Protection: Series battery packs are vulnerable to “cell reversal” when one depleted cell is driven into reverse voltage polarity by stronger neighboring cells. Design engineers should incorporate low forward-voltage Schottky diodes (e.g., V_F < 0.3 V) across inputs or integrated P-channel MOSFET reverse-polarity circuits to prevent reverse current flow and destructive thermal events.

3. Never Attempt Recharging: Primary zinc-manganese dry cells are strictly non-rechargeable. Forcing reverse current into a primary Zn-MnO₂ cell causes immediate localized water electrolysis, generating hydrogen and oxygen gas. This build-up causes rapid casing rupture, seal blowout, or projectile release of caustic electrolyte.

4. Mixed Cell Prevention: Never mix fresh and depleted batteries, or combine different chemistries (such as alkaline with zinc-carbon or NiMH) within the same circuit. Capacity mismatches force the lowest-capacity cell into deep reversal, guaranteeing seal rupture and chemical leakage.

Engineering Selection Guidelines and Field Diagnostics

Selecting the appropriate dry cell configuration requires balancing load profile demands, cut-off voltage thresholds, environmental temperature ranges, and physical enclosure constraints.

1. Sizing and Operational Capacity Calculations

The operational service life (t_service) in hours of a zinc-manganese battery under a continuous discharge current (I_load in milliamperes, mA) is calculated by taking into account the nominal capacity (C_nominal in milliampere-hours, mAh) and an engineering derating factor (k_drain):

t_service = (C_nominal × k_drain × k_temp) / I_load

Where:

• k_drain (Drain Derating Factor): At low discharge rates (I_load < C / 100), k_drain ≈ 0.95 to 1.0. Under high-drain conditions (e.g., I_load > C / 5), internal resistance causes polarization losses, dropping k_drain to 0.40 – 0.60.
• k_temp (Thermal Derating Factor): At +20°C, k_temp = 1.0. At -10°C, electrolyte ion mobility slows significantly, decreasing k_temp to approximately 0.25 – 0.40 for standard alkaline chemistries.

For applications with low-power sleep states punctuated by periodic wireless radio transmissions (e.g., 20 µA standby with 100 mA transmit pulses for 50 ms), the root-mean-square average current (I_avg) must be calculated along with bulk decoupling capacitor sizing to buffer pulse current demands without dipping below the micro-controller brownout threshold.

2. Field Diagnostics and Health State Assessment

Diagnosing the health state of a primary zinc-manganese dry cell cannot be achieved reliably using an open-circuit voltage (OCV) measurement alone. A depleted alkaline cell can exhibit an apparent OCV of 1.40 V to 1.48 V when measured with a high-impedance (10 MΩ) digital multimeter. However, upon applying an operational load, the elevated internal impedance (ESR) causes the terminal voltage to collapse instantly.

Field technicians should evaluate cells using a dynamic closed-circuit voltage (CCV) test under a calibrated resistive load (R_load), calculating the internal DC resistance (R_int) as follows:

R_int = (V_OCV – V_CCV) / I_load = ((V_OCV – V_CCV) / V_CCV) × R_load

The diagnostic table below outlines typical test criteria for 1.5 V AA/AAA alkaline cells under a 10 Ω test load resistor (simulating a ~120 mA to ~140 mA discharge state):

By enforcing thorough load-based screening, adhering to derating guidelines, and designing robust isolation and polarity safeguards, engineers can maximize operating reliability and eliminate power-source-related system failures across diverse industrial, commercial, and instrumentation installations.
