Comparative Analysis of G057QN01-V0 and LQ057Q3DC03 LCD Panels from Shunlongwei Co. Ltd

What 5.7-Inch Industrial LCD Panels Are and Their Industrial Significance

In industrial automation, process control, and embedded systems, the 5.7-inch quarter video graphics array (QVGA, 320 × 240 pixels) format represents one of the most resilient display standards deployed over the past three decades. Panels in this physical class are engineered to deliver reliable visual feedback in harsh operational environments, including computer numerical control (CNC) operator terminals, medical diagnostic instrumentation, agricultural vehicle consoles, and programmable logic controller (PLC) human-machine interfaces (HMIs). Unlike consumer-grade screens found in tablets or smartphones, industrial displays must operate continuously under extreme temperature fluctuations, mechanical vibration, electrical noise, and high ambient illumination.

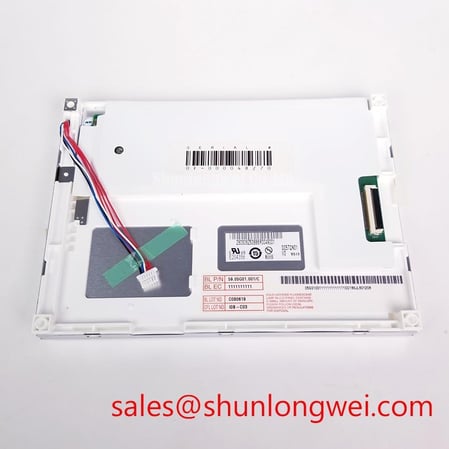

Within this category, the AUO G057QN01-V0 and the Sharp LQ057Q3DC03 serve as classic technical reference designs. Both displays share a nominal 5.7-inch active display area with a 4:3 aspect ratio, yet they represent distinct generations of display engineering. The Sharp LQ057Q3DC03 established the early mechanical and electrical standard for compact industrial HMIs, utilizing mature parallel complementary metal-oxide-semiconductor (CMOS) / transistor-transistor logic (TTL) digital interfaces and cold-cathode fluorescent lamp (CCFL) backlighting architectures. In contrast, the AUO G057QN01-V0 reflects modern industrial display evolution, incorporating high-efficiency white light-emitting diode (WLED) backlight arrays, extended operational temperature ranges, and refined timing controller (TCON) logic.

Understanding the electrical, optical, and physical distinctions between these two components is critical for electronics engineers, hardware maintainers, and retrofit specialists. As legacy machines reach intermediate maintenance cycles, original components face end-of-life (EOL) phaseouts. Sourcing functional replacements requires precise validation of logic supply voltages, signal timing parameters, backlight power requirements, and connector pinouts. For broader retrofitting programs, engineers frequently cross-reference other legacy platforms, such as the NL6448BC26-27 for VGA-class interfaces or electroluminescent modules like the EL552-256-Q1 in high-reliability applications. Understanding how fundamental Liquid Crystal Display Technology integrates into embedded controllers ensures seamless migration without risking panel damage or logic controller latch-up.

Working Principle and Physical Structure of Industrial TFT Matrices

To evaluate how these display panels function within an industrial control loop, engineers must understand the multi-layer physical structure of a Thin-Film Transistor Liquid-Crystal Display (TFT LCD). At its core, an active-matrix TFT panel acts as a dynamic spatial light modulator. It does not generate light within the liquid crystal layer itself; rather, it modulates the transmission of light emitted from a rear backlight unit through an array of independently addressable subpixels.

The physical stack consists of several laminated micro-optical layers:

• Rear Polarizer: Linearly polarizes unpolarized light coming from the backlight module along a specific optical axis.
• TFT Glass Substrate: Contains an array of microscopic thin-film transistors fabricated from amorphous silicon (a-Si). Each pixel possesses its own dedicated switching transistor and storage capacitor (C_S).
• Nematic Liquid Crystal Layer: Formed by rod-shaped organic molecules sandwiched between alignment layers. When no electric field is applied, the molecules maintain a 90-degree twist (in standard Twisted Nematic / TN mode), guiding polarized light through the cell. When an electric field is applied across the pixel electrodes, the molecules untwist and align parallel to the electric field, preventing light rotation.
• Color Filter Substrate: Positioned opposite the TFT glass, this substrate contains red, green, and blue (RGB) color filter stripes with an opaque black matrix grid to prevent optical cross-talk between adjacent subpixels.
• Front Polarizer (Analyzer): Oriented perpendicular (or parallel, depending on the optical mode) to the rear polarizer. It either blocks or transmits the modulated light, establishing the visual grayscale.

Electrically, display operation relies on a built-in Timing Controller (TCON) integrated onto the panel’s printed circuit board assembly (PCBA). The host controller (e.g., a microprocessor or dedicated graphics controller) delivers digital RGB pixel data alongside clock and synchronization signals. The primary control signals include:

• Pixel Clock (DCLK): Synchronizes the latching of digital RGB data on each rising or falling clock edge (typically operating around 5.6 MHz to 6.4 MHz for 320 × 240 resolution at 60 Hz frame rates).
• Horizontal Sync (HSYNC): Defines the start and duration of each horizontal display line.
• Vertical Sync (VSYNC): Defines the start of a new frame sequence.
• Data Enable (DE): Indicates when active pixel data is valid on the parallel data bus, differentiating valid display areas from blanking intervals.

The TCON decodes these incoming inputs and routes control pulses to gate (row) drivers and source (column) drivers. Gate drivers sequentially apply a turn-on voltage (V_GH, typically +15V to +25V) to each horizontal row of TFT gates. Simultaneously, source drivers supply precise analog gray-scale voltages (derived from the digital RGB inputs) to the columns. The storage capacitor C_S maintains the charge across the liquid crystal layer for the duration of the frame until the row is refreshed in the subsequent cycle, ensuring stable luminance without perceptible flicker.

Key Features, Advantages, and Technology Comparison

While both the AUO G057QN01-V0 and the Sharp LQ057Q3DC03 feature identical screen dimensions (5.7-inch diagonal) and resolution (320 × 240 active pixels), significant technological variations exist in their illumination sources, electrical operating points, optical properties, and environmental tolerances. The table below outlines these core specifications to assist system designers during product selection or retrofit validation.

The transition from CCFL to solid-state LED backlighting represents the single most consequential engineering divergence between these two displays. The Sharp LQ057Q3DC03 relies on a fragile glass gas-discharge tube that requires an external step-up inverter producing 600V_RMS strike voltages at high alternating frequencies (40 kHz to 70 kHz). This inverter introduces substantial electromagnetic interference (EMI) risks to adjacent analog sensing circuits and represents a common point of field failure.

In contrast, the AUO G057QN01-V0 utilizes a multi-die low-voltage DC LED string. This eliminates high-voltage conversion hazards, lowers total system power draw, enhances shock resistance, and delivers a surface luminance of 800 cd/m² compared to the 350 cd/m² nominal output of the Sharp unit. When evaluating alternative display options across industrial platforms, engineers also analyze related devices such as the TX20D208VM0BAA for systems requiring alternative mechanical packaging or interface definitions.

Real-World Applications and Operating Precautions

Both displays are deployed in mission-critical applications where equipment downtime directly translates into lost productivity. Typical use cases include:

• CNC Machine Tool Interfaces: Showing coordinate readouts, spindle speeds, and G-code execution lines in lathe and milling machine consoles.
• Industrial Human-Machine Interfaces (HMIs): Installed on factory floor process lines for pump, valve, and temperature monitoring.
• Medical Monitoring Systems: Providing patient physiological data and diagnostic telemetry in bedside instruments.
• Automated Test Equipment (ATE): Presenting test parameters and waveform data in field calibration units.

When operating, servicing, or retrofitting these panels, engineers and field technicians must enforce strict operational precautions to prevent premature component failure or logic malfunction.

1. Logic Power-On and Power-Off Sequencing

Modern CMOS/TTL display logic requires strict adherence to power rail timing. Technicians must ensure that the digital logic voltage V_DD stabilizes before applying pixel clock and high-speed data signals. Specifically:

• Rise Time (t1): V_DD must transition from 10% to 90% of its nominal voltage within 0.5 ms < t1 < 10 ms.
• Data Signal Delay (t2): Input data lines (DCLK, HSYNC, VSYNC, DE, RGB[0:5]) must remain in a high-impedance (Hi-Z) or low logic state until V_DD has stabilized for at least 10 ms. Applying high logic signals while V_DD is at 0V will forward-bias the internal ESD protection diodes, inducing parasitic thyristor latch-up and potentially destroying the TCON silicon.
• Backlight Power Delay (t3): The backlight power supply (V_LED / V_CCFL) must only be energized after stable data is present (typically 200 ms after data lock). Powering the backlight prematurely causes high-intensity white or distorted frame flashing during controller boot cycles.

2. Signal Line Impedance and Cable Routing

The 18-bit parallel digital RGB interface operates at frequencies where signal integrity becomes critical. Trace lengths between the graphics controller and the 33-pin FPC connector should be matched to prevent propagation skew across the six red, six green, six blue, and synchronization lines. Designers should maintain a single-ended characteristic impedance of 50 Ω ± 10%. Where flexible flat cables (FFC) are routed across machine hinges or past high-power motor drivers, shielded grounding planes and ferrite suppression beads must be implemented to prevent visual artifacts and pixel jitter.

3. Electrostatic Discharge (ESD) and Mechanical Clamping

Because the outer layer of the panel consists of polarizing polymer sheets, it is susceptible to static accumulation. Technicians must handle displays within ESD-protected workstations (ANSI/ESD S20.20 compliant). When securing the display into metal chassis cutouts, mechanical torque on mounting brackets must not exceed 0.29 N·m (3.0 kgf·cm). Uneven torque distorts the perimeter seal of the glass substrate, resulting in localized optical birefringence seen as irregular bright pooling or “clouding” around the display perimeter.

Engineering Selection Guidelines and Field Diagnostics

Selecting between the AUO G057QN01-V0, the Sharp LQ057Q3DC03, or an engineered direct-replacement module requires an organized evaluation workflow. Field maintenance engineers tasked with retrofitting older equipment originally designed around the Sharp LQ057Q3DC03 should follow this structured assessment procedure:

1. Verify the Mainboard Logic Rail: Measure pin 2 and pin 3 (or designated V_DD lines) on the host interface connector using a calibrated digital multimeter. If the legacy host outputs 5.0V TTL logic, level-shifting transceivers (such as 74LVC or 74AVC series bus buffers) must be placed between the host and the AUO G057QN01-V0 to step logic levels down to 3.3V. Directly driving a 3.3V TCON with 5.0V logic causes over-current stress and catastrophic semiconductor breakdown.
2. Assess Backlight Supply Compatibility: If converting from the Sharp CCFL to the AUO LED panel, disconnect and safely remove the high-voltage CCFL inverter module. Splice the host system’s 12V or 24V DC bus into an auxiliary constant-current LED driver board. Ensure the pulse-width modulation (PWM) dimming signal matches the driver’s operating frequency (typically 100 Hz to 1 kHz).
3. Confirm Timing Synchronization Modes: Check whether the host controller relies on Data Enable (DE-only mode) or pure synchronization pulses (Sync mode using HSYNC and VSYNC). While modern TCONs on the AUO panel often support automatic detection of DE or SYNC modes, legacy Sharp panels frequently mandate precise horizontal back-porch and front-porch timing parameters configured in firmware.

When diagnosing display failures in the field, technicians can utilize the following fault-isolation matrix to identify root causes and implement corrective actions.

By conducting systematically planned benchtop verifications of supply rails, timing constraints, and physical interconnections, engineers can ensure high system availability, extend machine service life, and successfully execute modernization programs across all 5.7-inch industrial display installations.
