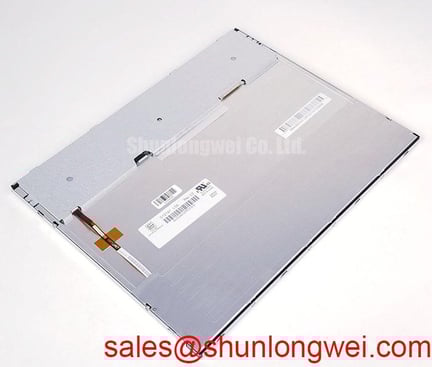

Innolux G121X1-L03 and AUO G121STN01.0 LCD Displays

What These Components Are and Their Industry Significance

In industrial automation, medical instrumentation, and transportation infrastructure, visual Human-Machine Interfaces (HMIs) must operate reliably under conditions that would quickly degrade commercial-grade screens. Within this demanding domain, 12.1-inch liquid crystal display panels represent a critical industry standard. The Innolux G121X1-L03 and the AUO G121STN01.0 are two widely deployed industrial-grade active-matrix TFT LCD panels engineered specifically to address the rigorous mechanical, thermal, and electrical demands of mission-critical systems.

Fundamentally, these modules solve the challenge of long-term operational stability. Commercial displays are frequently redesigned to follow consumer form factors, leading to short production lifecycles of 12 to 18 months. In contrast, industrial systems—such as Computer Numerical Control (CNC) machine tools, programmable logic controller (PLC) operator terminals, and patient vital-sign monitors—require dependable component availability spanning seven to ten years. The Innolux G121X1-L03 (an XGA resolution panel offering 1024 × 768 pixels) and the AUO G121STN01.0 (an SVGA resolution panel offering 800 × 600 pixels) provide standardized mechanical envelopes, robust Low-Voltage Differential Signaling (LVDS) digital interfaces, and long-life Light Emitting Diode (LED) backlighting subsystems. This architecture allows plant engineers and system integrators to maintain, repair, and retrofit legacy machinery without requiring costly redesigns of the chassis or host graphics controller.

Understanding the electrical and optical architecture of modern Liquid Crystal Display Technology is essential when managing industrial installations. When migrating from older visual platforms—such as legacy VGA modules like the NL6448BC26-27—to modern 12.1-inch platforms, maintenance engineers must evaluate how pixel resolution, logic voltage rails, backlight driving circuitry, and interface timings interact. The Innolux G121X1-L03 and AUO G121STN01.0 serve as foundational reference designs in this transition, combining high optical contrast, wide horizontal and vertical viewing cones, and robust resistance to electrical noise on factory floors.

Working Principle, Pixel Architecture, and Signal Interface

The operational foundation of both the Innolux G121X1-L03 and AUO G121STN01.0 rests on Thin-Film Transistor Liquid-Crystal Display (TFT LCD) active-matrix technology. Each pixel in the display matrix is divided into three individual sub-pixels corresponding to the primary color filters: Red, Green, and Blue (RGB). Inside every sub-pixel, an amorphous silicon (a-Si) thin-film transistor acts as a fast solid-state switch that controls the electrostatic charge stored across a localized liquid crystal capacitor (C_LC) and an auxiliary storage capacitor (C_S).

When the panel’s gate (row) line is driven high by the row driver Integrated Circuit (IC), the TFT channel becomes conductive. This allows the analog data voltage supplied by the source (column) driver to charge the sub-pixel capacitance. The resulting electric field between the pixel electrode and the continuous common electrode (V_COM) alters the spatial orientation of nematic liquid crystal molecules. Because liquid crystal molecules exhibit optical birefringence, changing their physical alignment modulates the polarization angle of the polarized light emitted by the white LED backlight array. The modulated light then passes through an outer polarizing filter and color filter array, producing precise grayscale levels and full-color imagery.

To coordinate the transfer of high-speed graphic data across the physical cable connecting the host motherboard to the panel, both panels incorporate an integrated Timing Controller (T-CON) board. The T-CON receives serialized digital data via Low-Voltage Differential Signaling (LVDS). Instead of routing 18 or 24 individual single-ended TTL/CMOS data traces—which generate substantial electromagnetic interference (EMI) and suffer from trace-to-trace propagation skew—the LVDS interface transmits high-speed serial data over balanced differential copper pairs with a nominal differential amplitude of ±350 mV centered around a 1.2 V common-mode reference (V_CM).

The T-CON deserializes these differential bitstreams, extracts the horizontal synchronization (HSYNC), vertical synchronization (VSYNC), and Data Enable (DE) signals, and generates the high-voltage clock and shift pulses required by the display’s gate and source drivers. Precise timing synchronization across the pixel clock (DCLK) line ensures that data is latched into each column line without jitter, ghosting, or line-tearing artifacts.

Key Features, Advantages, and Technology Comparison

Selecting between the Innolux G121X1-L03 and AUO G121STN01.0 depends on specific system requirements regarding pixel density, logic power architecture, optical luminance, and color depth. While both share an identical 12.1-inch diagonal active display area (measuring approximately 245.76 mm horizontal × 184.32 mm vertical), their internal T-CON programming, native pixel resolutions, and LVDS channel configurations diverge to meet distinct operational goals.

The Innolux G121X1-L03 features a native XGA resolution (1024 × 768 pixels) in a 4:3 aspect ratio, producing a fine pixel pitch of 0.240 mm × 0.240 mm. This makes it suitable for detailed vector graphics, complex SCADA schematics, and multi-parameter medical waveforms. It supports both 6-bit (262,144 colors) and 8-bit (16.2 million colors) color processing via dedicated format selection pins, operating with a typical pixel clock frequency of 65.0 MHz. Conversely, the AUO G121STN01.0 provides a native SVGA resolution (800 × 600 pixels) with a pixel pitch of 0.3075 mm × 0.3075 mm. The larger sub-pixel aperture ratio of the SVGA layout enables higher optical efficiency, making it well-suited for industrial machinery running legacy software originally configured for 800 × 600 graphics pipelines.

When evaluating alternatives, engineers often compare these 12.1-inch panels against adjacent display technologies, such as the compact 10.4-inch TX20D208VM0BAA or ultra-rugged solid-state displays. The table below provides a detailed technical comparison of the Innolux G121X1-L03, the AUO G121STN01.0, and standard industrial reference specifications.

Real-World Applications and Operating Precautions

The mechanical and optical profiles of the G121X1-L03 and G121STN01.0 make them widely utilized across multiple industrial sectors. Common deployments include factory floor CNC operator consoles (such as Fanuc, Mitsubishi, or Siemens control retrofits), marine navigation displays, automotive diagnostic stations, automated teller machines (ATMs), and analytical lab instruments. While specialty environments with extreme temperature variations or intense vibration historically utilized electroluminescent displays like the EL552-256-Q1, modern high-brightness TFT LCDs now deliver broad operating temperature ranges from -30 °C to +85 °C alongside full-color graphical rendering.

Deploying these displays in harsh industrial environments requires strict adherence to physical and electrical assembly best practices:

• Mechanical Enclosure Design and Clamping Torque: When mounting the display panel to an aluminum bezel or front chassis, clamping force must be applied evenly across the peripheral mounting tabs. Uneven torque exceeding 0.29 N·m (3.0 kgf·cm) can warp the outer glass substrate. This mechanical deformation causes local variations in cell gap thickness, resulting in visible optical defects known as “mura” (dark or light clouding patterns across dark backgrounds).
• Thermal Dissipation and Backlight Management: The integrated solid-state LED backlight array dissipates significant localized heat along the edge of the panel. Ensure that internal chassis convection channels or direct thermal conduction paths prevent the ambient enclosure temperature from exceeding the maximum rating of +80 °C. Extended exposure to temperatures above +60 °C without airflow accelerates LED luminous decay, shortening the backlight half-life below its 50,000-hour rating.
• Cable Routing and Electrostatic Discharge (ESD): LVDS data cables carrying 40 MHz to 65 MHz signals must be routed away from AC power lines, inverter leads, switch-mode power supplies (SMPS), and high-voltage motor drive cabling. Failure to isolate these lines can induce common-mode noise across the differential pairs, causing transient pixel sparkle or frame dropouts. All metal chassis bezels must be bonded to earth ground with a low-impedance ground braid to safely discharge ESD events up to ±15 kV air discharge and ±8 kV contact discharge.

Engineering Selection Guidelines, Power Sequencing, and Field Diagnostics

When selecting or replacing a 12.1-inch LCD panel during system design or benchtop repair, field technicians must verify power supply voltage tolerances, power-up sequencing timing, and differential line impedance. Failing to observe proper logic power sequencing is one of the leading causes of premature T-CON IC failure and latch-up destruction.

The panel logic subsystem requires a stabilized supply rail (V_DD) of 3.3 V ± 10% (or 5.0 V ± 10% on compatible hardware configurations). The power-on timing sequence requires strict adherence to the following parameters:

• Power Rail Rise Time (t₁): The logic voltage V_DD must ramp monotonically from 10% to 90% within a window of 0.5 ms ≤ t₁ ≤ 10 ms. If the power supply ramps too slowly (t₁ > 10 ms), the internal power-on reset (POR) circuit inside the T-CON may fail to initialize properly.
• LVDS Signal Activation Delay (t₂): High-speed differential clock and data signals must not be transmitted until V_DD has reached full stability, adhering to a delay window of 0 ms < t₂ ≤ 50 ms. Applying active differential voltages to the T-CON inputs while V_DD is unpowered can forward-bias the internal ESD protection diodes, forcing the driver IC into destructive CMOS latch-up.
• Backlight Enable Delay (t₃): The LED driver enable signal (V_{LED_EN}) and PWM dimming line must remain low until valid video data has been transmitted for at least 200 ms (t₃ ≥ 200 ms). This prevents optical artifacts, white flashes, or unstable frames from displaying during bootup.
• Differential Impedance Control: All differential PCB traces and interconnect harness pairs (RxIN0±, RxIN1±, RxIN2±, RxIN3±, and RxCLK±) must maintain a strictly controlled differential characteristic impedance of 100 Ω ± 10% to prevent signal reflections and data eye-pattern degradation.

The diagnostic table below outlines common field failure modes encountered during panel retrofits and provides step-by-step verification procedures for field service engineers.

By verifying logic rail sequencing, maintaining controlled differential impedance, and selecting the appropriate resolution and color configuration, engineering teams can ensure high image quality, robust EMI resistance, and extended operational lifecycles across all industrial visual installations.
