Innolux G154I1-LE1 and G121S1-L01 TFT-LCD Displays

What This Component Is and Its Industry Significance

In modern industrial automation, process control, and medical instrumentation, visual human-machine interfaces (HMIs) serve as the primary window through which operators monitor mission-critical operations. The Innolux G154I1-LE1 and G121S1-L01 are specialized industrial-grade thin-film transistor liquid-crystal display (TFT-LCD) modules engineered to deliver stable optical performance under severe environmental operating conditions. Unlike consumer-grade displays designed for short lifecycles and benign office environments, these industrial panels are fabricated to withstand wide temperature fluctuations, mechanical vibration, continuous 24/7 duty cycles, and prolonged static graphic display without suffering image sticking or premature optical degradation.

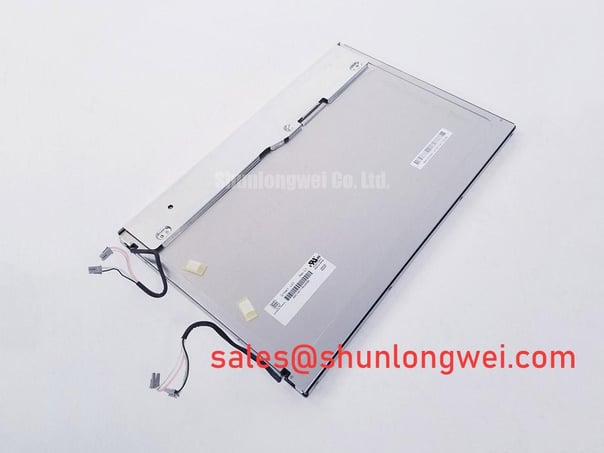

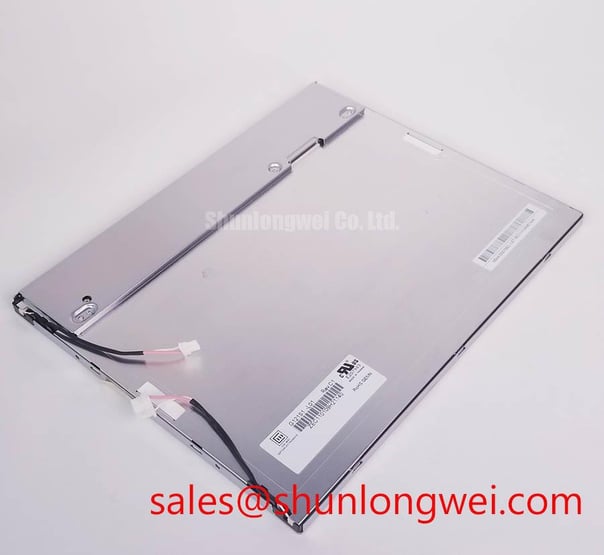

The G154I1-LE1 is a 15.4-inch wide-aspect-ratio (16:10) WXGA display providing a native resolution of 1280 × 800 pixels. It is widely deployed in widescreen machine terminals, computerized numerical control (CNC) operator panels, and modern diagnostic instrumentation. The G121S1-L01 is a classic 12.1-inch standard-aspect-ratio (4:3) SVGA display featuring an 800 × 600 pixel matrix, widely utilized in legacy industrial controllers, factory automation HMIs, and transportation monitoring consoles. Both modules utilize standard Low-Voltage Differential Signaling (LVDS) interfaces and integrated light-emitting diode (LED) backlighting subsystems to provide long mean time between failures (MTBF) exceeding 50,000 hours.

The significance of these displays in industrial electronics lies in lifecycle stability, electrical interface predictability, and mechanical standardization. Modern manufacturing plants and medical facilities rely on control infrastructure intended to remain operational for ten to twenty years. When maintaining or retrofitting legacy installations that previously utilized panels such as the NL6448BC26-27 or specialized flat-panel technologies, application engineers must ensure that replacement panels adhere strictly to industrial signaling, timing, and thermal specifications. By standardizing on robust Liquid Crystal Display Technology, plant operators reduce unscheduled downtime, maintain interface compatibility across hardware revisions, and prevent obsolescence bottlenecks in legacy production lines.

Working Principle and Physical Structure

The operational foundation of the G154I1-LE1 and G121S1-L01 rests on active-matrix Thin-Film Transistor Liquid-Crystal Display (TFT LCD) physics. The physical panel comprises a multi-layered optical sandwich. At the rear sits the Backlight Unit (BLU), consisting of an array of high-efficiency white LEDs paired with optical light-guide plates (LGP), diffuser sheets, and prismatic brightness enhancement films (BEF). This structure converts point-source LED illumination into a uniform, planar white light field directed toward the display surface.

Directly above the backlight assembly lies the rear polarizing filter, which polarizes the unpolarized light into a single linear orientation. The light then enters the active-matrix glass substrate. This substrate contains a matrix of thousands of microscopic thin-film field-effect transistors fabricated from amorphous silicon (a-Si). Each pixel is split into three subpixels (Red, Green, and Blue), each controlled by its own dedicated TFT switch, storage capacitor (C_ST), and transparent indium tin oxide (ITO) pixel electrode.

Between the TFT substrate and an upper color-filter glass substrate lies an electro-optically active nematic liquid crystal layer with a cell gap maintained at micro-scale tolerances (typically 3 µm to 5 µm) using precision spacer beads. A continuous transparent conductive layer on the upper glass provides a common reference voltage (V_COM). When the gate driver IC applies an active voltage (V_GH) to a horizontal scan line, the TFT channels conduct, transferring the analog data voltage from the source driver IC onto the pixel electrode. The resulting electric field between the pixel electrode and V_COM forces the rod-like liquid crystal molecules to reorient their physical alignment.

This reorientation alters the polarization angle of the passing light. The front polarizing filter—oriented at a 90° angle relative to the rear polarizer in normally white Twisted Nematic (TN) panels—blocks or transmits the light in direct proportion to the molecular twist. By independently modulating the electric field across the RGB subpixel electrodes from 0V to maximum saturation voltage, the panel controls the optical transmission of each subpixel, generating the full 262,144 (6-bit) or 16,777,216 (8-bit) color palette required for rich graphical displays.

To drive this high-density matrix without generating severe electromagnetic interference (EMI), both the G154I1-LE1 and G121S1-L01 integrate an LVDS receiver on their internal timing controller (TCON) printed circuit boards. The LVDS interface receives high-speed serialized differential data pairs (RxIN0±, RxIN1±, RxIN2±, and differential clock RxCLK± for 6-bit; plus RxIN3± for 8-bit). The differential receiver detects voltage swings as small as 100 mV across a 100 Ω termination resistor, reconstructing the parallel red, green, blue, horizontal sync, vertical sync, and data enable (DE) signals before routing them to the column and row driver ICs bonded directly to the glass substrate.

Key Features, Advantages, and Technology Comparison

The G154I1-LE1 and G121S1-L01 are engineered to address specific physical and environmental challenges found in industrial facilities. Both panels offer distinct mechanical and electrical profiles optimized for different chassis form factors, viewing distances, and host processing architectures. While alternative display architectures such as thin-film electroluminescent displays like the EL552-256-Q1 or specialized TFT modules such as the TX20D208VM0BAA provide unique trade-offs in extreme cold or compact dimensions, these Innolux panels represent the mainstream industrial standard for balanced optical clarity, power consumption, and thermal resilience.

The G154I1-LE1 delivers 400 to 450 cd/m² luminance and a 16:10 aspect ratio, making it suitable for modern widescreen SCADA interfaces that display complex graphical layouts, trend charts, and side-by-side telemetry windows. In contrast, the G121S1-L01 offers 400 to 450 cd/m² luminance in a compact 4:3 format, making it the ideal direct drop-in replacement for retrofitting legacy CRT monitors and older CCFL-backlit 12.1-inch LCD modules in space-constrained machinery cabinets.

The comparative data highlights why these panels excel in demanding environments. Standard commercial panels suffer from limited temperature windows (often failing below freezing or above 50°C), low backlight brightness insufficient for brightly lit shop floors, and short commercial production cycles that cause engineering churn. The G154I1-LE1 and G121S1-L01 provide extended operational temperature profiles, high contrast ratios, robust mechanical enclosures, and long-term production availability.

Real-World Applications and Operating Precautions

The Innolux G154I1-LE1 and G121S1-L01 are deployed across a broad spectrum of industrial, medical, and transport applications. Typical installations include:

• Computer Numerical Control (CNC) Milling and Lathe Consoles: Where displays must withstand constant mechanical vibration, airborne cutting fluid mists, and broad temperature swings inside non-climate-controlled machine shops.
• Programmable Logic Controller (PLC) HMIs & SCADA Nodes: Providing plant floor operators with continuous real-time telemetry, alarm statuses, and interactive process flowcharts.
• Medical Diagnostic and Monitoring Equipment: Patient monitoring stations, chemical analyzers, and surgical support carts requiring stable luminance, high color fidelity, and wide viewing angles.
• Marine and Rail Transport Instrumentation: Engine room telemetry displays, train driver consoles, and outdoor-sheltered ticketing kiosks where cold-boot capability at -20°C or -30°C is mandatory.

To ensure long-term field reliability, hardware system integrators and field maintenance engineers must observe several critical electrical, thermal, and mechanical operating precautions:

1. Power Supply Sequencing (Latch-Up Prevention)

The internal driver ICs and timing controller contain integrated CMOS circuits susceptible to electrical latch-up if signal voltages are applied before logic power is fully established. System designers must enforce strict power-on and power-off timing profiles:

• Logic Power Rise Time (t₁): The logic power rail (V_DD) must rise smoothly from 10% to 90% within 0.5 ms < t₁ ≤ 10 ms. Sluggish power rails with excessive capacitance or rail ringing can cause the internal power-on reset (POR) circuit to fail.
• Data Delay (t₂): LVDS differential clock and data signals must remain in high-impedance or logic-low state until V_DD has stabilized above 90% for at least 0.5 ms to 50 ms (0.5 ms < t₂ ≤ 50 ms).
• Backlight Enable Delay (t₃): The LED driver backlight enable (BL_EN) and pulse-width modulation (PWM) dimming signals must not activate until valid LVDS video data has been streaming for at least 200 ms (t₃ ≥ 200 ms). Activating the backlight before active data transmission results in a bright white flash or momentary screen artifacts that degrade optical components over time.
• Power-Down Sequence: When shutting down, reverse the order: disable the backlight first, stop LVDS signaling second, and remove V_DD logic power last.

2. Thermal and Mechanical Integration

While industrial panels tolerate elevated ambient temperatures, enclosed metal chassis without active ventilation can trap heat. Engineers must maintain adequate thermal clearance around the rear LED driver board. The surface temperature at the center of the front polarizer and the rear chassis must never exceed the absolute maximum operating limit (+70°C for G154I1-LE1; +80°C for G121S1-L01).

When securing the display into an enclosure bezel, mounting screw torque must be evenly balanced (typically 0.29 to 0.39 N·m). Excessive or uneven mechanical torque causes mechanical stress on the outer glass substrate, resulting in localized optical distortion known as the “mura effect” (clouding or uneven brightness patterns in dark scenes) and potentially cracking the microscopic indium tin oxide trace connections.

3. Electrostatic Discharge (ESD) and Handling Precautions

The exposed LVDS input interface pins, LED backlight connectors, and flexible printed circuits (FPC) connect directly to sensitive semiconductor gates. Technicians must handle all modules in ESD-safe environments using grounded wrist straps and conductive work mats. Never plug or unplug interface ribbons while logic power (V_DD) or backlight power (V_LED) is active (“hot-plugging”), as voltage transients can instantly destroy the TCON receiver input stages.

Engineering Selection Guidelines and Field Diagnostics

Selecting the correct display panel for new designs or legacy retrofits requires evaluating mechanical dimensions, electrical signaling protocols, and environmental parameters. Field maintenance technicians tasked with diagnosing non-functioning displays on the factory floor must use a systematic troubleshooting methodology.

System Engineering Selection Checklist

• Physical Envelope & Aspect Ratio: Confirm whether the host housing accommodates a 16:10 widescreen (G154I1-LE1) or a 4:3 legacy frame (G121S1-L01). Measure active area dimensions, outer metal frame thickness, and mounting hole patterns.
• LVDS Format Mapping: Verify whether the host single-board computer (SBC) or graphics controller outputs LVDS data in VESA format or JEIDA format. Incorrect bit mapping causes severely distorted, solarized, or noisy color renditions.
• Pixel Clock Range: Ensure the host graphics controller can synthesize the required pixel clock frequency (typically 71.1 MHz for the G154I1-LE1 at 1280 × 800 @ 60 Hz; 40.0 MHz for the G121S1-L01 at 800 × 600 @ 60 Hz).
• Backlight Driver Voltage: Confirm the host power supply unit can provide the required LED rail voltage (typically 12.0V ± 10% DC) with sufficient current capacity (1.0A to 2.0A headroom) to handle inrush currents during full-brightness startup.

Field Diagnostic & Troubleshooting Procedures

When troubleshooting an inoperative or malfunctioning display panel on-site, technicians should utilize a digital multimeter (DMM) and a portable high-bandwidth digital storage oscilloscope (DSO) to isolate failures between the host controller, cabling, power supply, and LCD panel itself. Follow the diagnostic matrix below to resolve common failure modes:

By executing these systematic verification steps, engineers and field technicians can quickly isolate integration issues, verify LVDS differential line integrity, enforce correct power rail timing, and ensure long, maintenance-free operational lifecycles for both the Innolux G154I1-LE1 and G121S1-L01 TFT-LCD displays in industrial operating environments.
