Research Progress on Improving LCD Grayscale Image Quality a

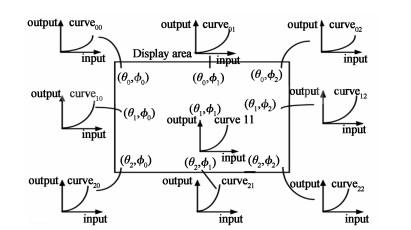

What LCD Grayscale Modulation Is and Its Industry Significance

In modern industrial visualization, medical diagnostic equipment, and computerized numerical control (CNC) operator terminals, an LCD panel must do far more than simply switch pixels between fully opaque and fully transparent states. Grayscale modulation is the precise electro-optical mechanism that controls intermediate luminance levels between absolute black (level 0) and peak white (such as level 255 in an 8-bit system). This granular modulation enables the smooth rendering of continuous-tone images, subtle depth cues in diagnostic displays, distinct color shades, and clear visual readouts across varying ambient lighting conditions.

Historically, early flat-panel displays suffered from coarse tonal steps, noticeable banding artifacts, severe color shifting at off-axis viewing angles, and sluggish intermediate gray-to-gray (G2G) transitions. In safety-critical sectors—such as aerospace instrumentation, high-precision industrial robotics, and medical ultrasonic imaging—an inaccurate grayscale rendition can lead to misread process parameters or obscured diagnostic anomalies. For example, industrial displays like the NL6448BC26-27 are engineered with tightly calibrated gamma profiles to ensure consistent optical transmission across every sub-pixel, preventing false operator interpretations under harsh factory floor conditions.

Research progress in LCD grayscale image quality focuses on solving three primary physical and electrical bottlenecks:

• Non-Linear Electro-Optical Response: Liquid crystal materials exhibit an inherently non-linear optical transmission curve when subjected to an electric field, necessitating sophisticated multi-point gamma reference scaling.
• Slow Intermediate Transition Times: While driving a pixel from full black to full white utilizes maximum electric field strength, shifting between intermediate grays uses weaker voltage differentials, causing noticeable motion blur and ghosting.
• Angular Grayscale Inversion: Traditional crystal alignment modes suffer from phase-retardation mismatches at off-normal viewing angles, causing darker gray tones to appear lighter than intended (or vice-versa).

Modern display engineering resolves these limitations through advanced digital-to-analog converter (DAC) source driver architectures, programmable gamma-correction buffers, dynamic response-time compensation (overdrive algorithms), and multi-domain liquid crystal molecular alignment. These technologies ensure that every digital gray value transmitted across an interface—such as LVDS, eDP, or parallel CMOS/TTL—translates into a repeatable and highly accurate photometric luminance output on the screen surface.

Working Principle and Physical Structure of Grayscale Generation

To understand how an active-matrix Liquid Crystal Display Technology panel creates intermediate brightness levels, one must look at the interaction between the thin-film transistor (TFT) substrate, the liquid crystal layer, and the optical polarization filters. Each display pixel comprises three distinct sub-pixels (Red, Green, and Blue). At the microscopic level, each sub-pixel acts as a tiny, voltage-controlled optical capacitor.

The Electro-Optical Voltage-Transmission (V-T) Response

Liquid crystal molecules possess dielectric anisotropy (their permittivity varies along different molecular axes) and optical birefringence (light travels at different speeds depending on polarization direction relative to the molecular director). When no voltage is applied across the liquid crystal layer (the pixel cell), the molecules remain aligned according to the microscopic mechanical grooves on the polyimide alignment layers. Unpolarized backlight entering the rear polarizer becomes linearly polarized; as it traverses the twisted or vertically aligned liquid crystal layer, its polarization state undergoes phase retardation. In a normally white Twisted Nematic (TN) cell, this rotation allows light to pass unobstructed through the front cross-polarizer.

When an analog drive voltage is applied between the TFT pixel electrode and the common electrode (V_COM), an electric field forms across the cell gap. This field exerts a torque on the molecular dipoles, tilting them parallel or perpendicular to the field lines. As the tilt angle increases, the effective birefringence decreases, reducing the polarization rotation and blocking a proportionate amount of light. The relationship between applied root-mean-square voltage (V_RMS) and optical transmittance is known as the Voltage-Transmission (V-T) curve. This curve is heavily S-shaped: below a threshold voltage (V_th), no molecular reorientation occurs; beyond a saturation voltage (V_sat), the molecules are fully reoriented. Grayscale levels must be precisely mapped into the steep, non-linear transitional zone between V_th and V_sat.

TFT Pixel Circuit Operation

Each sub-pixel contains an active switching device (a field-effect transistor fabricated from amorphous silicon, low-temperature polycrystalline silicon, or metal-oxide semiconductor material), a liquid crystal storage node (C_LC), and an auxiliary storage capacitor (C_st). The storage capacitor is wired in parallel with C_LC to maintain the charge across the dielectric gap throughout an entire video frame refresh interval (typically 16.67 ms at 60 Hz), preventing voltage decay caused by transistor leakage currents.

During operation, the gate driver IC activates a horizontal scan line (row) by applying a positive turn-on voltage (V_GH). This turns on the channel of every TFT along that row. Simultaneously, the column (source) driver IC outputs the specific analog target voltage representing the desired gray level for that sub-pixel. This charge rapidly fills C_st and C_LC. Once the horizontal row scan time expires (typically 10 µs to 30 µs depending on panel resolution), the gate line transitions to a negative turn-off voltage (V_GL), isolating the pixel node and locking the electric field across the liquid crystal material until the subsequent frame update.

AC Driving and Inversion Schemes

Liquid crystal materials are susceptible to electrochemical decomposition and permanent ionic polarization (image sticking) if exposed to a continuous direct-current (DC) electric field. Consequently, LCD grayscale voltages must alternate in polarity relative to the common electrode (V_COM) on every frame. Source drivers generate symmetrical positive and negative gamma curves. To minimize perceptible flicker and crosstalk, panels implement spatial inversion schemes:

• Frame Inversion: The entire panel alternates polarity every frame. While electrically simple, it produces high visual flicker and crosstalk.
• Row / Line Inversion: Adjacent horizontal lines carry opposite polarities, reducing vertical line flicker.
• Dot Inversion: Every adjacent sub-pixel, both horizontally and vertically, carries opposite polarities. This creates complete spatial cancellation of capacitive coupling transients, resulting in the highest grayscale stability and visual purity, as utilized in high-grade modules like the TX20D208VM0BAA.

Spatial and Temporal Dithering (FRC)

Native high-bit-depth source driver ICs (such as true 8-bit or 10-bit DACs) require wider silicon dies, higher power consumption, and tighter internal resistor matching tolerances. To achieve 8-bit (256 gray levels) or 10-bit (1024 gray levels) visual performance using cost-effective native 6-bit or 8-bit column drivers, engineers employ Frame Rate Control (FRC) and spatial dithering. Temporal dithering (FRC) rapidly alternates a sub-pixel between two adjacent native analog gray levels across successive refresh frames (for instance, switching between level 32 and level 33 at 60 Hz or 120 Hz). Due to the human eye’s temporal low-pass filtering and the physical relaxation response of the liquid crystal fluid, the observer perceives an intermediate luminance value (e.g., level 32.5). When paired with spatial dithering (arranging alternating levels across 2×2 pixel blocks), panels achieve expanded color gamuts and smooth grayscale gradients without visible step transitions.

Key Features, Advantages, and Technology Comparison

Enhancing grayscale rendition requires optimizing both the physical panel architecture (liquid crystal mode) and the driving electronics (source driver DAC precision, gamma correction buffers, and overdrive algorithms). In industrial and embedded environments, selecting the appropriate grayscale driving scheme directly influences contrast ratio, thermal stability, wide-angle readability, and power dissipation.

Digital Gamma Calibration and Programmable Reference Buffers

Standard video signals adhere to a power-law gamma curve (typically γ = 2.2), where luminance follows the mathematical relationship L = V^γ. Because the native V-T curve of liquid crystal is non-linear and varies between production lots, display modules incorporate programmable gamma buffers. High-precision integrated circuits, such as 14-channel or 18-channel gamma reference generators, divide the upper and lower supply rails into intermediate voltage tap points. These reference voltages feed the resistor-string DACs inside the column drivers, reshaping the input digital code to follow an exact, standardized transfer function. This calibration prevents crushed shadow details in low-gray regions and avoids highlight clipping near full saturation.

Response Time Compensation (Overdrive / RTC)

A persistent challenge in liquid crystal physics is the slow response time during gray-to-gray (G2G) transitions. When switching from pure black to pure white, the maximum available voltage difference generates a strong electrostatic torque that quickly aligns the molecules. However, when transitioning between adjacent intermediate grays (e.g., from gray level 64 to gray level 96), the small voltage delta creates a weak field, taking up to 30 ms to 50 ms for the molecules to reach equilibrium. This delay causes dynamic blurring on moving content.

Overdrive technology integrates a look-up table (LUT) and frame memory into the timing controller (TCON). The TCON compares the current input frame’s pixel value with the prior frame’s stored value. If an intermediate upward transition is detected, the TCON temporarily applies an exaggerated voltage (an overshooting pulse) for a single frame period. This higher initial torque accelerates molecular rotation, reducing G2G response times from 35 ms down to under 5 ms. Once the molecules reach the target tilt, the drive voltage drops back to the steady-state value required for that gray level.

For specialized industrial applications, selecting between panel structures—such as standard active matrices or ruggedized electroluminescent modules like the EL552-256-Q1—depends heavily on the ambient operating temperature, refresh dynamics, and necessary contrast precision under direct sunlight or pitch-black environments.

Real-World Applications, Interface Timing, and Power Rail Precautions

Deploying advanced grayscale displays in industrial control rooms, CNC machining centers, portable medical diagnostic tablets, and avionics terminals requires strict adherence to electrical interface constraints and thermal boundaries. Even the most sophisticated gamma architecture will produce visual artifacts if power delivery, clock jitter, or signal line impedance deviate from specifications.

Power Rail Sequencing (V_DD Rise-Time Constraints)

Modern industrial display panels utilize low-voltage CMOS logic controllers paired with high-voltage analog column/row drivers. The panel logic subsystem typically operates from a nominal supply of V_DD = 3.3V or 5.0V ± 0.5V. Power-on sequencing mandates that V_DD stabilizes within a tight rise-time window of 0.5 ms < t₁ < 10 ms prior to the activation of differential transmitter clocks and data lines.

If V_DD rises too slowly (t₁ > 10 ms), the internal power-on reset (POR) circuit within the timing controller may fail to trigger cleanly, leaving internal registers in an undefined state. Conversely, an excessively steep voltage step (t₁ < 0.5 ms) creates high inrush current spikes across decoupling capacitors, risking latch-up in the silicon substrates of row and column driver ICs. Furthermore, the high-voltage analog rail (V_DDA or AVDD, typically 10V to 15V) and common electrode supply (V_COM) must only turn on after logic power has stabilized, avoiding dangerous parasitic conduction paths.

Differential Impedance and High-Frequency Signal Integrity

High-resolution, high-bit-depth grayscale transmission requires multi-channel Low-Voltage Differential Signaling (LVDS) or Embedded DisplayPort (eDP) interfaces. In LVDS topologies, digital color data (e.g., 8-bit R, G, B channels plus sync signals) is serialized across 4 or 8 differential data pairs alongside a dedicated differential pixel clock pair.

Signal integrity design rules mandate the following practices on interface PCBs and flexible flat cables (FFC):

• Impedance Matching: Differential signal line pairs must maintain a balanced differential characteristic impedance of 100 Ω ± 10% throughout the entire interconnect path. Single-ended impedance must be controlled to 50 Ω ± 10%. Any impedance mismatch causes transmission line reflections, resulting in eye-diagram closure, inter-symbol interference (ISI), and high-frequency pixel jitter that manifests as random grayscale noise or sparkling artifacts on dark backgrounds.
• Intra-Pair Skew Matching: The physical length between the positive (+) and negative (-) traces within any differential pair must match within ±0.15 mm (equivalent to less than 1 ps to 2 ps of electrical skew). Severe intra-pair skew degrades differential common-mode rejection and radiates high electromagnetic interference (EMI).
• Inter-Pair Skew Control: Skew between data pairs and the clock pair must remain within ±0.5 UI (unit interval) to avoid setup and hold time violations at the TCON input deserializer.

Thermal Management and Environmental Considerations

Liquid crystal fluid exhibits a pronounced temperature-dependent viscosity. At sub-zero temperatures (-20 °C to -30 °C), the fluid thickens significantly, causing optical response times to increase from tens of milliseconds to hundreds of milliseconds. This sluggishness degrades intermediate gray rendering and causes severe smearing. Industrial systems operating in extreme environments integrate dynamic thermal compensation within the TCON: internal temperature sensors adjust the overdrive LUT coefficients and alter the gamma reference curve in real time to counteract thermal sluggishness. Furthermore, robust electrostatic discharge (ESD) suppression arrays (rated to IEC 61000-4-2 Level 4: 8 kV contact / 15 kV air discharge) must be placed at all external connector entry points to shield sensitive high-voltage column driver inputs.

Engineering Selection Guidelines and Field Diagnostics

Specifying a replacement display or troubleshooting an active installation with grayscale degradation requires a systematic engineering methodology. Field engineers must differentiate between digital transmission errors, power rail sequencing faults, gamma buffer drift, and physical panel degradation.

Selection Guidelines for Industrial Applications

1. Identify Required Native Color Depth: For text-heavy industrial HMIs and simple parameter dashboards, a native 6-bit panel with FRC (16.2 million colors) offers an optimal balance of cost and power. For diagnostic medical imaging, high-density machine vision verification, and high-fidelity video monitoring, insist on native 8-bit or true 10-bit Thin-Film Transistor Liquid-Crystal Display (TFT LCD) panels with dedicated digital gamma calibration.
2. Verify Optical Alignment Mode: Where operators observe displays from wide or varying angles (such as overhead crane cabins or multi-rack CNC consoles), select In-Plane Switching (IPS) or Multi-Domain Vertical Alignment (MVA) panels to eliminate off-axis grayscale inversion.
3. Check Interface Timing and Voltage Tolerances: Confirm that the host graphics controller can supply stable pixel clock signals within the panel’s required spread-spectrum modulation limits (typically SSC down-spread < 2% to minimize EMI without breaking TCON clock recovery PLLs). Ensure the host power delivery matches the panel logic voltage (3.3V vs. 5.0V) and meets the rise-time sequencing profile.

Field Diagnostic Workflow

When investigating grayscale anomalies in operational machinery, follow this diagnostic sequence:

1. Inspect Static DC Rails: Connect a high-accuracy digital multimeter to the panel power input pins. Verify that V_DD is stable at 3.3V or 5.0V with ripple below 50 mV_p-p. Confirm that the analog rail (V_DDA/AVDD) reaches its nominal level (typically 9.6V to 13.5V).
2. Verify Power-On Sequencing: Using a dual-channel oscilloscope, set channel 1 to trigger on the rising edge of V_DD and set channel 2 on the differential LVDS clock line. Ensure that the clock activity starts strictly after V_DD reaches 90% of nominal voltage, respecting the panel manufacturer’s minimum delay time (typically t₂ ≥ 10 ms to 50 ms) to avoid latch-up conditions.
3. Check Gamma Reference Ladder Voltages: Locate the designated gamma test points on the panel PCB (often labeled V1 through V14, or GM1 through GM18). The measured voltages must form a strictly monotonic decreasing (or increasing) series between V_DDA and Ground. Any two adjacent points showing identical voltage or an inverted step indicate an internal resistor network failure or a damaged operational amplifier within the gamma buffer.
4. Audit Common Electrode Voltage (V_COM): Display a 50% checkerboard or fine dot-inversion test pattern. Use an insulated trimmer tool or software calibration interface to adjust V_COM until optical flicker is eliminated. An unbalanced V_COM causes long-term ion migration, reducing contrast ratio and degrading grayscale accuracy across the panel’s operating life.

By combining proper interface signaling, tight voltage rail control, and accurate gamma profiling, engineers can maintain superior grayscale fidelity, robust optical contrast, and long-term operating reliability across all demanding industrial display deployments.
