Samsung LTM150XH-L01 LCD Display

What This Component Is and Its Industry Significance

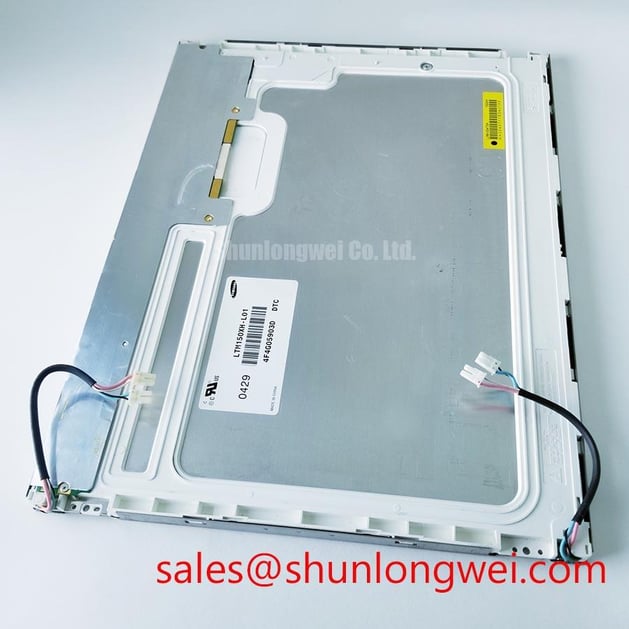

The Samsung LTM150XH-L01 is an industrial-grade, 15.0-inch diagonal liquid crystal display module designed for high-reliability Human-Machine Interfaces (HMIs), diagnostic instrumentation, computerized numerical control (CNC) equipment, and factory automation terminals. Featuring a native XGA resolution of 1024 × 768 pixels arranged in a standard 4:3 aspect ratio, this panel represents a milestone in the evolution of standardized visual interfaces for harsh industrial environments.

Unlike consumer-grade display panels engineered primarily for cost efficiency and limited operational lifespans, industrial visual modules like the LTM150XH-L01 prioritize mechanical rigidity, high electromagnetic interference (EMI) immunity, wide operating temperature envelopes, and extended component longevity. In modern industrial automation and embedded computing, visual feedback terminals must operate continuously under fluctuating ambient temperatures, sustained mechanical vibrations, and noisy electrical power rails. Industrial displays resolve these operational challenges by incorporating robust glass substrates, dedicated timing controllers (T-CON), and hardened driver ICs configured to resist latch-up and image retention.

The industry significance of the LTM150XH-L01 extends significantly into system retrofitting, legacy infrastructure maintenance, and long-term lifecycle management. Many manufacturing plants, marine monitoring suites, and medical imaging consoles rely on established mechanical enclosures and single-channel Low-Voltage Differential Signaling (LVDS) controller cards designed specifically around 15-inch XGA specifications. When maintaining operational integrity across long-lifecycle equipment, replacement display panels must deliver exact electrical compatibility, matched timing parameters, and consistent optical performance to prevent costly system redesigns or recertifications.

In broader system engineering, the LTM150XH-L01 serves as a benchmark for transitioning older industrial hardware from legacy passive-matrix screens to high-contrast active-matrix Liquid Crystal Display Technology. By understanding its electrical interface, logic power sequencing, and driving architecture, maintenance engineers and embedded system designers can reliably sustain, repair, and upgrade mission-critical visual terminals.

Working Principle and Physical Structure

The operational foundation of the Samsung LTM150XH-L01 relies on Thin-Film Transistor Liquid-Crystal Display (TFT LCD) active-matrix technology. At its physical core, the display consists of a multi-layer sandwich structure containing a rear backlight assembly, a rear polarizing filter, a thin-film transistor array on a glass substrate, a nematic liquid crystal layer, a color filter glass plate, and a front polarizing filter.

The module functions by controlling the transmission of light emitted from the backlight subsystem through polarization modulation. In its native Twisted Nematic (TN) normally white configuration, the elongated liquid crystal molecules naturally align in a 90° helical twist between two alignment layers oriented perpendicular to one another. Unpolarized light from the backlight passes through the rear polarizer, aligns along a single axis, follows the 90° molecular twist of the relaxed liquid crystal layer, and exits cleanly through the orthogonal front polarizer, yielding a fully illuminated (white) sub-pixel.

To modulate individual pixels, the panel utilizes an internal Timing Controller (T-CON) coupled with integrated Source (column) and Gate (row) driver ICs:

• Row Selection (Gate Drivers): The gate lines sequentially apply a turn-on voltage (V_GH) to the gates of the amorphous silicon (a-Si) thin-film transistors across one horizontal row at a time. This charging cycle opens the conductive channel between the transistor’s source and drain.
• Column Data Charging (Source Drivers): Simultaneously, the source drivers deliver analog grayscale voltages corresponding to the incoming visual data across each column. This voltage charges the pixel electrode storage capacitor (C_ST) and the liquid crystal capacitance (C_LC).
• Electric Field Alignment: The resulting electrical potential between the individual pixel electrode and the continuous common electrode (V_COM) on the color filter substrate creates a vertical electrostatic field. This field forces the liquid crystal molecules to untwist and stand parallel to the electric field. As the molecular twist decreases, polarized light cannot rotate to match the front polarizer, causing light attenuation and creating precise grayscale levels from pure white to deep black.
• Sub-Pixel Color Synthesis: Each discrete pixel is subdivided into three primary color sub-pixels (Red, Green, Blue) via a patterned gelatin or resin matrix on the upper glass substrate. By independently modulating the transmission of the three sub-pixels across 6-bit or 8-bit depth levels, the panel renders up to 16.2 million distinct colors (via Frame Rate Control / spatial dithering) or 262,144 native 6-bit colors.

Electrically, the LTM150XH-L01 incorporates an onboard DC-DC converter circuitry block that translates the main logic supply voltage (typically V_DD = 3.3V or 5.0V) into internal driving rails: high gate voltage (V_GH ~ 15V to 25V), low gate voltage (V_GL ~ -5V to -10V), and analog reference voltages (V_DDA) for the internal resistor-ladder digital-to-analog converters.

Key Features, Advantages, and Technology Comparison

The LTM150XH-L01 occupies a well-defined niche in industrial display engineering, characterized by its mechanical durability, predictable optical performance, and standard differential signaling interface. Its native resolution of 1024 × 768 on a 15-inch surface provides a comfortable pixel pitch of 0.297 mm × 0.297 mm, balancing visual clarity with ease of viewing on industrial plant floors.

Core Engineering Characteristics

• Standardized Mechanical Footprint: Enclosed within a ruggedized metal frame that shields the driver tape-carrier packages (TCP) and minimizes torsional strain on the active glass area.
• Differential LVDS Interface: Operates using high-speed low-voltage differential pairs (typically RxCLK, RxIN0, RxIN1, RxIN2, and optionally RxIN3 for 8-bit operation), dramatically reducing electromagnetic radiation and cable count compared to legacy parallel TTL/CMOS buses.
• Wide Supply Tolerance: Features a resilient logic stage capable of maintaining signal integrity across industrial power bus variations.
• Stable Optical Parameters: Delivers a nominal luminance of 250 to 350 cd/m² and a static contrast ratio between 300:1 and 500:1, ensuring sharp rendering of industrial graphical schematics, numerical telemetry, and ladder logic diagrams.

To evaluate where the LTM150XH-L01 stands among industrial display alternatives, the following comparison highlights key technical differences across various industrial display modules, including the compact industrial panel NL6448BC26-27, the ruggedized wide-aspect display TX20D208VM0BAA, and solid-state electroluminescent technologies such as the EL552-256-Q1.

As demonstrated in the comparison table, while specialized displays like thin-film electroluminescent panels provide extreme environmental survivability, active-matrix TFT panels such as the LTM150XH-L01 offer optimal color reproduction, high information density, standard aspect ratios, and superior cost-performance trade-offs for mainstream industrial control enclosures.

Real-World Applications and Operating Precautions

The Samsung LTM150XH-L01 is widely integrated into industrial environments where downtime is prohibitively expensive. Typical deployments include:

• CNC Machine Consoles & Milling Centers: Rendering real-time toolpaths, G-code execution streams, and multi-axis positional telemetry.
• Process Automation SCADA Terminals: Displaying piping and instrumentation diagrams (P&ID), valve actuation states, and continuous thermal profiles.
• Medical Diagnostic Monitors: Serving as the visual output for ultrasound consoles, blood gas analyzers, and patient monitoring stations requiring consistent XGA resolution.
• Transportation & Marine Engine Monitoring: Providing central status monitoring inside ship control rooms and locomotive cabs.

Critical Installation and Operating Precautions

Achieving maximum mean time between failures (MTBF) requires strict adherence to physical, electrical, and thermal engineering guidelines during system assembly and field maintenance.

1. Logic Power Supply (V_DD) Sequencing

The logic stage operates from a nominal V_DD of 3.3V or 5.0V (depending on the exact sub-revision PCB jumper setting). To prevent internal CMOS gate latch-up—a condition where internal parasitic silicon-controlled rectifiers (SCRs) trigger and create a destructive short circuit across the logic rails—strict power-on and power-off sequencing must be maintained:

• Rise Time Window: Power rail rise time must satisfy 0.5 ms < t₁ < 10 ms.
• Signal Delay: The host LVDS differential data and pixel clock must remain high-impedance or inactive until V_DD reaches at least 90% of its nominal threshold (delay interval t₂ ≥ 10 ms to 50 ms).
• Power-Off Sequence: When de-energizing the terminal, differential signals must cease transmission before or simultaneously with the reduction of V_DD, followed by a minimum rest period of 1000 ms before re-energizing.

2. Signal Integrity and LVDS Line Impedance

The LVDS differential signal pairs (RxIN0±, RxIN1±, RxIN2±, RxCLK±) operate with nominal signal amplitudes of approximately 350 mV over a 1.2V common-mode voltage baseline. To avoid visual artifacts such as horizontal pixel sparkling, edge ghosting, or clock phase jitter, the differential trace pairs must maintain a tightly controlled characteristic differential impedance of 100 Ω ± 10%. Wiring harnesses running from the single-board computer (SBC) or industrial motherboard to the 20-pin or 30-pin interface must be twisted-pair shielded cables routed away from high-voltage AC lines, switching inductors, and motor contactors.

3. Backlight Inverter and Thermal Management

Original revisions of the LTM150XH-L01 employ multi-lamp Cold Cathode Fluorescent Lamp (CCFL) backlight systems driven by an external high-voltage resonant inverter providing striking voltages exceeding 1,000 V_RMS and operating voltages around 600 to 750 V_RMS at 40 to 60 kHz. Technicians must ensure high-voltage leads are properly insulated and isolated from metallic chassis edges. In modern retrofits converting CCFL to solid-state LED strips, ensure constant-current drivers do not exceed maximum thermal dissipation limits inside the sealed enclosure, maintaining the panel’s active surface temperature below +50°C.

4. Electrostatic Discharge (ESD) and Mechanical Handling

The front polarizer surface is susceptible to scratching and electrostatic charge accumulation. Technicians must utilize grounded conductive wrist straps and ESD-dissipative workstations during handling. Never apply localized pressure directly onto the front glass surface; mechanical stress can rupture internal spacer beads, permanently altering the cell gap (d) and creating non-recoverable dark spots or localized Newton’s rings.

Engineering Selection Guidelines and Field Diagnostics

When selecting a replacement panel or diagnosing display failures on a factory floor, engineers must systematically isolate issues between the host graphics controller, the interconnect cabling, the inverter/driver subsystem, and the LCD glass assembly.

Selection and Compatibility Verification Checklist

1. Mechanical Dimensions: Verify outer bezel width, height, thickness, and mounting hole pitch against existing chassis cutouts.
2. Logic Voltage Matching: Confirm whether the host motherboard provides 3.3V or 5.0V on the V_DD pins. Applying 5.0V to a panel configured for 3.3V will cause immediate T-CON failure.
3. Color Bit Depth & Format: Confirm if the host transmitter generates 6-bit LVDS (using 3 data pairs + 1 clock pair) or 8-bit LVDS (using 4 data pairs + 1 clock pair), and whether data mapping follows the SPWG (Standard Panels Working Group) or OpenLDI / JEIDA format. Mismatched bit formats result in severely distorted color palettes or inverted grayscale gradients.
4. Pixel Clock Frequency: Ensure the host graphics controller supports the standard XGA refresh timing, nominally requiring a pixel clock (DCLK) frequency of 65.0 MHz for 60 Hz frame refresh rates.

The following field diagnostics troubleshooting table outlines common operational faults, their root causes, and corrective actions for benchtop and on-site engineering technicians.

Benchtop Signal Verification Technique

When commissioning an LTM150XH-L01 on a maintenance bench prior to final installation, follow this step-by-step verification process:

1. Static Resistance Check: With power disconnected, use a digital multimeter in diode mode to check all LVDS input lines relative to ground. Each differential pair line should exhibit balanced forward voltage drops (typically 0.6V to 0.8V depending on internal ESD diode architecture). A 0V reading indicates a short circuit, while open circuit readings on one leg of a pair indicate a broken trace or failed T-CON receiver.
2. Supply Rail Stability: Apply logic power and verify with an oscilloscope that the V_DD rail reaches stable nominal voltage without exceeding the maximum allowable overshoot of V_DD + 10%.
3. Pixel Clock Locking: Verify that the LVDS clock frequency is locked at 65 MHz with minimal duty cycle deviation (45% to 55% target window). Stable clocking ensures clean latching of active pixel data into the row shift registers, preventing image tearing or intermittent blanking during continuous 24/7 industrial service.
