Industrial Significance and Architecture of Legacy Display Modules

In industrial automation, process control, and embedded instrumentation, visual human-machine interfaces (HMIs) serve as the primary operational window for complex machinery. Among the most widely deployed monochrome and semi-graphic display panels across CNC consoles, computerized numerical milling centers, diagnostic medical equipment, and programmable logic controller (PLC) terminals are legacy passive-matrix modules such as the LMG7420PLFC-X and SP14Q002-T. Originally engineered by Hitachi (now supported across industrial replacement channels), these panels represent the pinnacle of high-reliability Film-compensated Super Twisted Nematic (FSTN) and Super Twisted Nematic (STN) display engineering.

Modern industrial facilities frequently face a critical maintenance dilemma: capital equipment engineered for 20- to 30-year operational lifecycles often outlasts the production lifespan of their integrated display subsystems. When an internal display panel degrades due to backlight exhaustion, polarizer degradation, or driver integrated circuit (IC) failure, replacing the entire multimillion-dollar manufacturing terminal is economically unfeasible. Consequently, direct component-level replacement and precise electrical retrofit of panels like the LMG7420PLFC-X and the SP14Q002-T remain fundamental engineering necessities for plant maintenance supervisors and field service engineers.

Understanding these devices requires an appreciation of their architectural role. Unlike consumer-grade screens, industrial modules prioritize extreme thermal stability, electromagnetic interference (EMI) immunity, deterministic parallel interface timing, and predictable optical contrast under harsh indoor lighting. While modern systems often transition toward active-matrix Thin-Film Transistor Liquid-Crystal Display (TFT LCD) technologies or specialized high-brightness platforms such as the NL6448BC26-27, legacy STN and FSTN platforms remain actively serviced worldwide. Field engineers must comprehend the fundamental electrical characteristics, logic rail sequencing, and driving mechanisms of these classic panels to execute successful drop-in replacements, inverter conversions, and signal integrity validations.

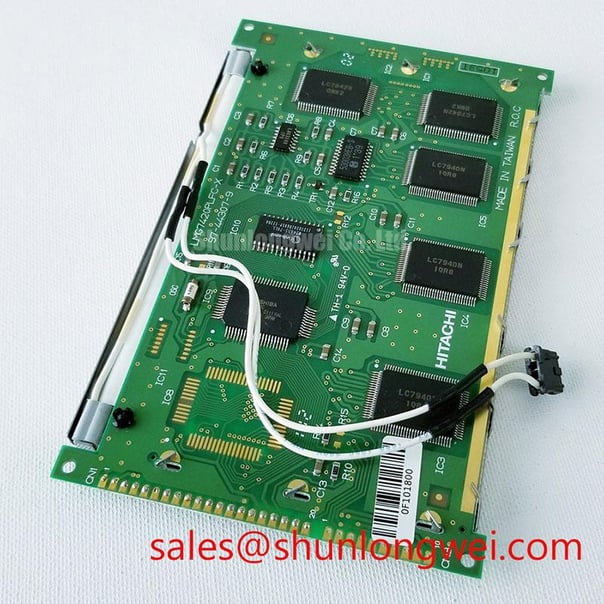

LMG7420PLFC-X and SP14Q002-T Architectural Block Diagram
Figure 1: Functional Block Diagram of Industrial Passive-Matrix Display Architecture

Electro-Optical Working Principles and Physical Construction

The operational foundation of both the LMG7420PLFC-X and SP14Q002-T rests on passive-matrix Liquid Crystal Display Technology. In standard twisted nematic (TN) cells, liquid crystal molecules rotate polarized light by 90°. However, to achieve higher multiplexing rates and superior contrast across graphic resolutions such as 240×128 or 320×240 (QVGA) without active switching transistors at every individual pixel, Super Twisted Nematic (STN) architectures increase the molecular twist angle to between 180° and 270°. This higher twist angle yields a significantly steeper electro-optical transfer curve, allowing small voltage variations between selected and unselected scan lines to produce dramatic changes in light transmission.

To eliminate the intrinsic yellow-green or blue background coloration caused by optical dispersion in standard STN cells, FSTN panels integrate an optical retardation compensation film. This polymer film neutralizes phase differences across visible wavelengths, producing a crisp, high-contrast monochrome image (black pixels on a silvery-white background or vice versa, depending on polarizer orientation). The physical stack comprises:

  • Front Polarizing Film: Linear polarizing sheet that filters incoming ambient or backlight rays.
  • Compensation Retardation Layer: Polymer substrate engineered to cancel chromatic aberration and optimize viewing angles.
  • Front and Rear Glass Substrates: Precision glass plates patterned with transparent Indium Tin Oxide (ITO) row and column conductive traces.
  • Nematic Liquid Crystal Fluid: Nematic organic compound with carefully tailored dielectric anisotropy and viscosity, separated by microscopic silica or polymer spacer beads maintaining a cell gap typically between 4.0 µm and 6.0 µm.
  • Rear Polarizer and Backlight Unit: Transmissive or transflective polarizers combined with a Cold Cathode Fluorescent Lamp (CCFL) or modernized white Light Emitting Diode (LED) edge-lit array.

Driving these passive-matrix displays requires specialized multiplexed wave generation. Row (common) drivers sequentially scan horizontal lines by applying scanning voltage pulses, while column (segment) drivers apply synchronized in-phase or out-of-phase voltage pulses corresponding to pixel data. Because passive-matrix pixels lack a dedicated storage capacitor, the effective optical state depends entirely on the Root Mean Square (RMS) voltage applied across the liquid crystal layer over an entire frame cycle. Maintaining optimal RMS voltage ratios between selected (Von) and non-selected (Voff) states mandates auxiliary negative bias rails (VEE or V0), which can range from -15.0 V to -22.0 V relative to ground, dynamically adjustable to compensate for temperature-induced viscosity shifts.

Comparative Analysis of Specifications and Display Architectures

Engineers tasked with maintenance, retrofit, or system design must evaluate panel specifications against electrical requirements, visual performance, and power dissipation. The LMG7420PLFC-X and SP14Q002-T represent distinct form factors and controller integration levels within the passive-matrix industrial domain. Furthermore, understanding how these monochrome panels contrast with active-matrix TFTs and solid-state electroluminescent technologies—such as the EL552-256-Q1 or advanced industrial panels like the TX20D208VM0BAA—is vital when specifying modernization pathways.

Parameter / Metric Hitachi LMG7420PLFC-X Hitachi SP14Q002-T Planar EL552-256-Q1 NEC NL6448BC26-27
Display Technology FSTN Monochrome (Film STN) FSTN Monochrome (Black/White) Electroluminescent (EL) Solid-State Active Matrix Color TFT LCD
Native Resolution (Dots) 240 × 128 320 × 240 (QVGA) 552 × 256 640 × 480 (VGA)
Active Area (Diagonal) 5.1 inch (approx. 120 × 64 mm) 5.7 inch (approx. 115 × 86 mm) 4.8 inch (approx. 126 × 58 mm) 8.4 inch (approx. 171 × 128 mm)
Logic Voltage (VDD) 5.0 V ± 0.5 V 3.3 V to 5.0 V ± 5% 5.0 V Logic / 12.0 V Base 3.3 V or 5.0 V (CMOS)
Liquid Crystal Bias (VEE/V0) -15.0 V to -21.0 V (External/Internal) -18.0 V to -22.0 V External N/A (High-Voltage AC Internal) None (Direct Single Rail DC)
Data Interface Type 4-bit / 8-bit Parallel (Direct Scan) 4-bit Parallel Bus (FLM, CL1, CL2) 4-bit / 8-bit Parallel Dual-Scan 18-bit Digital RGB (6-bit/color)
Backlight Illumination Single CCFL Tube (Replaceable LED) Single CCFL Edge-lit Tube Self-Emitting (Phosphor Luminescence) 2-CCFL Edge-lit Array / LED
Contrast Ratio 15:1 to 20:1 (Typical) 18:1 to 25:1 (Typical) 50:1 (High Ambient Immunity) 600:1 (High Dynamic Range)
Operating Temperature 0 °C to +50 °C -10 °C to +60 °C -20 °C to +65 °C -20 °C to +70 °C

The comparative data highlights critical engineering distinctions. The LMG7420PLFC-X uses a wide-aspect 240×128 dot matrix optimized for text-and-profile graphical instruments, whereas the SP14Q002-T delivers a 4:3 standard QVGA (320×240) format suited for detailed machine schematics. Both modules rely on external driver multiplexing, meaning that the host controller board (often incorporating an EPSON S1D13700, SED1335, or Toshiba T6963C controller IC) must continuously output framing pulses (FLM / First Line Marker), latch pulses (CL1 / LP), and pixel shift clocks (CL2 / CP). In contrast, modern TFTs integrate on-glass row/column logic with internal charge pumps, requiring only logic rails and standard digital RGB or LVDS streams.

Interface Timing and Power Sequencing Waveforms
Figure 2: Power-On Sequencing and Interface Bus Timing Protocol

Interface Timing, Power Sequencing, and Retrofit Precautions

Field installations and bench replacements of the LMG7420PLFC-X and SP14Q002-T require rigorous adherence to electrical power sequencing and interface timing parameters. Failure to observe proper voltage ramp sequences is the leading cause of premature field failures, driver latch-up, and catastrophic destruction of on-glass ITO conductive tracks.

1. Power-Rail Sequencing and Latch-Up Mitigation

Passive-matrix panels utilize two separate power domains: the digital logic rail (VDD, typically +5.0 V or +3.3 V) and the high-voltage liquid crystal bias rail (VEE or V0, typically -15.0 V to -22.0 V). Because the row and column driver ICs are manufactured on high-voltage CMOS processes, applying the negative bias rail (VEE) before the logic rail (VDD) has stabilized will forward-bias internal parasitic PN junctions, triggering destructive CMOS latch-up.

The mandatory power-on sequence requires:

  • The logic supply VDD must ramp smoothly within a rise-time window of 0.5 ms < t1 < 10 ms.
  • The negative LCD drive voltage (VEE) must remain disabled (0 V) until VDD reaches at least 90% of its nominal steady-state level and the horizontal/vertical synchronization clocks (CL1, CL2, FLM) are actively oscillating.
  • The delay interval (tdelay) between stable logic/clocks and VEE activation must be maintained between 20 ms and 100 ms.
  • During power-down, the sequence must reverse: VEE must be completely discharged to 0 V before VDD and clock signals are removed.

2. Interface Timing and Signal Verification

Data transmission across 4-bit parallel buses (D0 through D3) relies on deterministic synchronization. For the SP14Q002-T and LMG7420PLFC-X:

  • Pixel Clock (CL2 / CP): Shifts 4-bit nibbles into the internal column shift registers. Ensure data setup time (tDS) is at least 30 ns prior to the falling edge of CL2, and hold time (tDH) is greater than 20 ns.
  • Line Latch Clock (CL1 / LP): Latches the completed row of shifted data and transfers it to the column output drivers while advancing the row shift counter. CL1 pulse width must exceed 100 ns.
  • Frame Synchronization (FLM / YD): Signifies the start of a new display frame. FLM must be high during the falling edge of CL1 at the beginning of scan line zero, maintaining a setup time of at least 100 ns.
  • Impedance and Cabling: When routing replacement flat flexible cables (FFC) or ribbon cables, signal traces should maintain a controlled single-ended characteristic impedance of 50 Ω ± 10% (or balanced 100 Ω differential pairs where applicable) to prevent ringing, overshoot, and ghosting artifacts. Cable lengths should not exceed 300 mm without active bus buffering.

3. Backlight Subsystem Modernization (CCFL to LED Conversion)

Original revisions of the LMG7420PLFC-X and SP14Q002-T utilize miniature cold cathode fluorescent lamps (CCFLs) requiring high-voltage AC inverters delivering 600 VRMS to 1000 VRMS strike voltages at frequencies between 30 kHz and 70 kHz. When servicing aging machines:

  • Never probe active CCFL lines with standard multimeter probes; high strike voltages can damage test equipment and present shock hazards.
  • During modern retrofits, replace failing CCFL tubes with solid-state, constant-current LED rail kits. LED conversion eliminates high-voltage inverters, reduces total thermal output, enhances vibration resistance, and extends backlight MTBF from 20,000 hours to over 50,000 hours.
  • Ensure replacement LED drivers include a dedicated PWM dimming input or analog potentiometer interface to match OEM luminance levels (typically 70 cd/m2 to 120 cd/m2).

Field Diagnostics, Troubleshooting, and Selection Guidelines

When diagnosing non-functional HMIs or selecting replacement units for field repairs, technicians must perform structured fault isolation. The diagnostic procedure begins by decoupling the display module from its power sources, verifying passive line integrity, and confirming host timing waveforms using an oscilloscope.

Visual Symptom / Fault Mode Probable Root Cause Diagnostic Test & Verification Method Corrective Action / Solution
Entire screen is completely white or unreadable blank Missing or collapsed negative bias voltage (VEE/V0); CCFL backlight active but liquid crystals unswitched. Measure DC voltage at VEE/V0 pin relative to GND using a DMM. Confirm presence of -15.0 V to -22.0 V rail. Repair host DC-DC step-down inverter circuit, replace degraded contrast pot, or restore onboard bias generator.
Screen is totally dark/black (no illumination) Failed CCFL tube, blown inverter fuse, open ballast capacitor, or missing +12V/+24V backlight rail. Check DC input supply to inverter board. Shine an external flashlight at a 45° angle on the panel face to check for visible graphic patterns. Replace CCFL inverter module or retrofit the entire panel with a modern solid-state white LED edge-strip and driver.
Garbled, rolling, or horizontally distorted images Loss of horizontal latch clock (CL1) or pixel shift clock (CL2); severe digital bus cross-talk. Probe CL1, CL2, and FLM pins with an oscilloscope. Verify stable logic square waves with clean 3.3V/5V amplitudes. Replace damaged FFC ribbon cable, inspect solder joints on interface connector, or replace failing host display controller IC.
Missing horizontal or vertical pixel lines Open circuit on individual ITO ribbon traces or detached Tape Carrier Package (TCP) driver IC bonding. Apply gentle, uniform mechanical pressure along the perimeter bezel using an insulated stylus while observing screen response. Replace LCD panel assembly. Heat-seal anisotropic conductive film (ACF) delamination is non-repairable in the field.
Severe image ghosting or slow optical response Extreme low ambient temperature; incorrectly set contrast voltage; degraded liquid crystal fluid. Measure ambient temperature and adjust VEE bias potentiometer to match temperature compensation curve. Re-calibrate temperature compensation circuit (thermistor network) or install an integrated enclosure heater for cold environments.
Intermittent reset or system lockup during power-on CMOS latch-up caused by VEE powering up before VDD logic supply reaches stability. Use a multi-channel digital oscilloscope to capture the power-on ramp profile of both VDD and VEE rails simultaneously. Install or rebuild the power-rail sequencing delay circuit (RC network / MOSFET switch) to ensure VDD leads VEE by >20 ms.

Benchtop Multimeter & Static Diagnostic Procedure

Prior to applying power to a newly received replacement panel or questionable unit:

  1. Continuity and Short-Circuit Testing: Set the digital multimeter to resistance mode (Ω). Measure impedance between VDD and GND, and between VEE and GND. A reading below 100 Ω indicates a shorted bypass ceramic capacitor or an internally punctured driver IC.
  2. Diode-Mode Line Verification: With the module unpowered, place the positive DMM probe on GND and probe each digital signal line (D0–D3, FLM, CL1, CL2, /DISP). Each line should read a forward diode drop of approximately 0.6 V to 0.8 V, corresponding to internal ESD protection clamping diodes. A reading of 0.0 V indicates a shorted clamp, while an open circuit indicates a severed FFC trace.
  3. Polarizer Inspection: Inspect the front glass under ambient light for “vinegar syndrome” (chemical breakdown of cellulose triacetate polarizing films characterized by an acidic odor, bubbling, and optical browning). Panels showing polarizer degradation require optical film replacement or total module renewal.

Engineering Selection Criteria for Field Retrofits

When selecting a direct replacement for the LMG7420PLFC-X, SP14Q002-T, or related legacy industrial modules, verify the following parameters:

  • Controller Compatibility: Determine whether the host system requires a panel with an integrated controller (e.g., T6963C with onboard character ROM and RAM) or a bare scanning panel driven directly by a host graphic controller ASIC. The LMG7420PLFC-X and SP14Q002-T are direct-scan passive modules requiring continuous host timing signals.
  • Mechanical Dimensions and Viewing Window: Verify outer bezel dimensions, mounting hole center-to-center distances, active area coordinates, and total profile depth (including CCFL housings or LED light guides).
  • Contrast Voltage Generation: Confirm whether the replacement module integrates an internal DC-DC negative voltage charge pump or requires an external negative VEE rail from the motherboard power supply.
  • Electrostatic Discharge (ESD) and Mechanical Precautions: Always handle modules in an ESD-protected workstation with grounded wrist straps. Never apply localized pressure directly to the active display glass surface during installation, and torque bezel mounting screws evenly to a maximum of 0.2 N·m to 0.3 N·m to prevent optical mura (mechanical stress discoloration).

By implementing these verified electrical guidelines, timing verifications, and diagnostic protocols, application engineers and maintenance technicians can successfully extend the service life of critical industrial equipment, ensuring uninterrupted operations and optimal display clarity.
