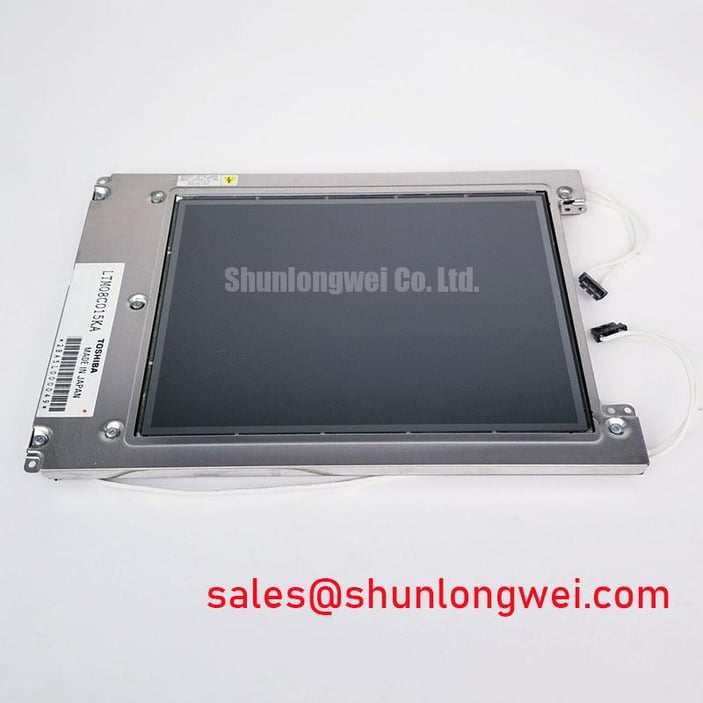

Toshiba LTM08C015KA and LTM08C351S LCD Displays: An In-Depth Comparison

What These Industrial Display Panels Are and Their Engineering Significance

In industrial automation, computerized numerical control (CNC) machinery, and mission-critical diagnostic instrumentation, visual display panels serve as the primary human-machine interface (HMI). Within these high-reliability environments, the Toshiba LTM08C015KA and LTM08C351S represent two prominent active-matrix flat-panel display solutions designed specifically for demanding operating conditions. Both units belong to the legacy 8.4-inch class of industrial liquid crystal modules, engineered to deliver stable optical performance, wide operating temperature envelopes, and high noise immunity across prolonged duty cycles.

Modern industrial equipment often remains deployed in active service for two to three decades. Maintaining such machinery requires an in-depth understanding of the display subsystem, as standard consumer-grade panels cannot withstand the mechanical vibration, electrical transients, and wide ambient temperature fluctuations typical of factory floors. The LTM08C015KA and LTM08C351S solve these reliability challenges by utilizing ruggedized glass substrates, dedicated timing controller (TCON) integrated circuits, and industrial-grade Cold Cathode Fluorescent Lamp (CCFL) backlighting structures designed for continuous 24/7 operation.

Understanding the architecture of a Liquid Crystal Display Technology module allows maintenance engineers and systems integrators to execute drop-in replacements, troubleshoot signal integrity issues, or engineer interface bridge boards when retrofitting vintage hardware. In industrial automation consoles, legacy panels from the Toshiba LTM series frequently interface with specialized embedded architectures, making direct replacement or informed substitution critical to minimizing plant downtime. For systems engineers evaluating panel migration paths, modern alternatives such as the NL6448BC26-27 or high-density modules like the TX20D208VM0BAA demonstrate how industrial display standards have evolved toward lower-power digital interfaces while preserving the mechanical robustness established by the LTM platform.

The engineering significance of the LTM08C015KA and LTM08C351S lies in their electrical architecture. These displays were developed during a pivotal transition phase in industrial electronics, bridging parallel CMOS/TTL digital video buses and early low-voltage differential signaling topologies. Because they integrate onboard source and gate driver circuitry alongside precision optical polarizers, field technicians must understand their internal driving mechanisms, logic supply rail requirements, and backlight inverter operating characteristics to ensure reliable long-term deployment.

Working Principle and Physical Architecture of Industrial TFT-LCD Modules

The operational foundation of both the LTM08C015KA and LTM08C351S rests on Thin-Film Transistor Liquid-Crystal Display (TFT LCD) active-matrix technology. Unlike passive-matrix displays that suffer from slow response times and high crosstalk between adjacent pixels, an active-matrix panel integrates an array of microscopic field-effect transistors directly onto the rear glass substrate. Each individual sub-pixel (Red, Green, or Blue) is governed by its own independent thin-film transistor, which functions as an electronic analog switch controlling the charge delivered to a dedicated storage capacitor and the surrounding liquid crystal cell.

The physical stack of these panels consists of several distinct optical and electrical layers arranged in a precision sandwich:

• Rear Linear Polarizer: Filters incoming white light from the backlight assembly so that only light oscillating in a single polarization plane enters the panel structure.
• TFT Array Glass Substrate: Hosts the amorphous silicon (a-Si) transistors, gate scan lines (horizontal row conductors), and source data lines (vertical column conductors).
• Nematic Liquid Crystal Layer: A fluid compound of rod-shaped organic molecules that change their physical orientation when an electric field is established between the TFT substrate and the common electrode.
• Color Filter Glass Substrate: Features microscopic red, green, and blue resin filters aligned with each sub-pixel, along with a transparent Indium Tin Oxide (ITO) common electrode layer (V_COM).
• Front Linear Polarizer: Positioned perpendicularly (at a 90° angle) relative to the rear polarizer to block or pass light based on the phase shift introduced by the liquid crystal layer.
• Backlight Unit (BLU): A cold cathode fluorescent tube integrated into an acrylic light guide plate (LGP) with reflective backing and optical diffuser/prism sheets to distribute uniform illumination across the rear surface.

When no electric field is applied across a normally white twisted nematic (TN) liquid crystal cell, the molecular structure naturally twists incoming polarized light by 90°. This rotated light passes unhindered through the front polarizer, producing a bright sub-pixel. When the display controller applies a drive voltage through the source line and activates the corresponding TFT gate, an electrostatic field forms across the liquid crystal layer. The molecules align parallel to the electric field, eliminating the polarization rotation. As a result, the light is absorbed by the front polarizer, creating a dark sub-pixel.

By modulating the analog voltage level on the source lines between 0V and full saturation (typically spanning a 0V to 5V dynamic window), the timing controller precisely controls the tilt angle of the molecules, generating intermediate grayscale levels. The integrated timing controller (TCON) decodes digital video data from the host interface, generates gate scanning clock pulses to activate row transistors sequentially from top to bottom, and distributes analog drive voltages across the source columns synchronously with the horizontal clock (HCLK or DCLK).

Key Features, Advantages, and Technology Comparison

While the LTM08C015KA and LTM08C351S share identical 8.4-inch diagonal active display areas, their internal driving electronics, logic power distribution networks, and optical performance envelopes feature distinct technical variations. Understanding these differences is essential for repair technicians and design engineers when replacing modules or developing multi-source hardware platforms.

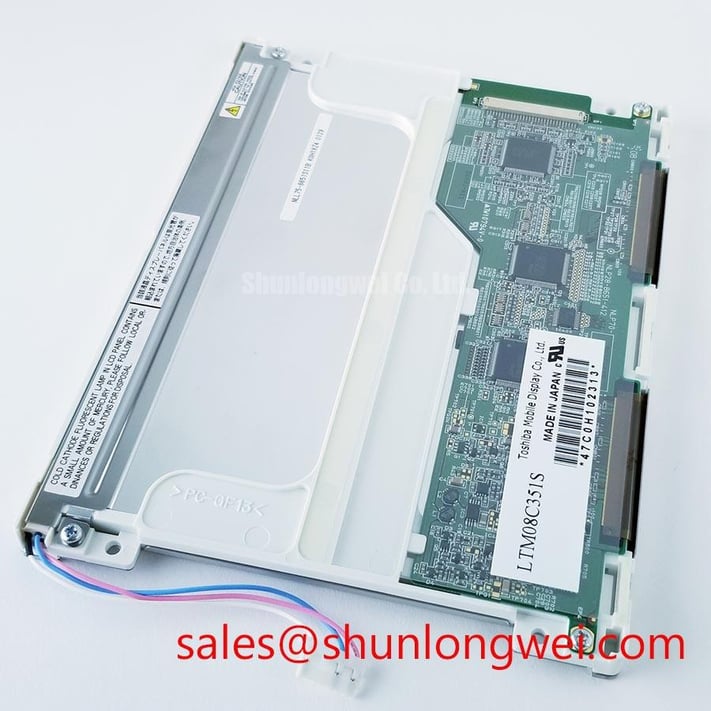

The LTM08C351S is engineered primarily around an SVGA native resolution (800 × 600 pixels), providing high pixel density suitable for modern graphical operator consoles. In contrast, specific revisions of the LTM08C015 series are optimized for legacy timing standards, offering robust noise margins across legacy parallel data buses. Both modules utilize cold-cathode fluorescent backlights, but their electrical interface pin counts, signal timing limits, and logic voltage tolerances differ.

The operational advantage of the LTM08C351S over its predecessor rests in its enhanced optical stack. By utilizing higher-efficiency polarizers and an optimized liquid crystal cell gap, the LTM08C351S achieves a contrast ratio of 350:1 and a peak surface luminance of 300 cd/m² without requiring increased lamp driving current. This reduces thermal stress on the CCFL tube and prevents localized edge-lit yellowing over prolonged operational lifespans.

Conversely, the LTM08C015KA provides broader tolerance on the logic supply rail, accommodating older 5.0V microcontroller bus topologies without the active level-shifting required by modern 3.3V-only panels. In environments where extreme shock, wide viewing angles, or solid-state cold-temperature reliability are needed without liquid crystal fluid, specialized display technologies like the electroluminescent EL552-256-Q1 are occasionally utilized; however, for standard full-color graphical instrumentation, the Toshiba LTM series remains the historical baseline.

Industrial Integration, Power Sequencing, and Operational Precautions

Deploying or servicing the LTM08C015KA and LTM08C351S requires strict adherence to power sequencing guidelines and high-voltage safety practices. Because active-matrix panels integrate sensitive CMOS driver circuits alongside high-voltage gas-discharge lamps, improper integration can cause latch-up, permanent driver destruction, or optical degradation.

1. Power-Up and Power-Down Supply Sequencing

The logic supply rail (V_DD) must always stabilize before input control and data signals are applied to the panel interface. If digital signals (Data lines, HSYNC, VSYNC, DCLK) are driven into the panel while V_DD is at 0V, current will flow through internal ESD protection diodes into the unpowered logic rail. This condition causes CMOS latch-up, leading to high quiescent current draw and catastrophic thermal failure of the timing controller.

The required power-up timing constraints are defined as follows:

• V_DD Rise Time (t₁): The logic rail must rise monotonically from 10% to 90% within 0.5 ms < t₁ ≤ 10 ms. A sluggish power supply ramp (> 10 ms) may prevent the internal power-on-reset (POR) circuit from initializing the internal register states.
• Signal Delay Time (t₂): High-speed clock and data signals must remain in a high-impedance (Hi-Z) or low logic state for at least 0 ms < t₂ ≤ 50 ms after V_DD reaches its nominal 90% threshold.
• Backlight Activation Delay (t₃): The CCFL inverter enable signal must not activate until stable video signals have been present for at least 200 ms. Turning on the backlight before the liquid crystal layer is charged produces an uncontrolled white flash across the screen.
• Power-Down Sequencing: Upon system shutdown, the sequence must reverse: the backlight inverter disables first, followed by signal cessation, and finally the collapse of V_DD.

2. High-Voltage CCFL Inverter Considerations

The backlight assembly operates on a miniature Cold Cathode Fluorescent Lamp that requires an external DC-to-AC resonant inverter. The inverter must generate an open-circuit ignition strike voltage (V_FLS) between 1,200 V_rms and 1,500 V_rms to initiate gas discharge inside the tube. Once the plasma arc is established, the tube voltage collapses to an operational level of 480 V_rms to 520 V_rms at an AC operating frequency between 40 kHz and 60 kHz.

Field technicians must verify that the inverter output provides a clean, symmetrical sinusoidal waveform. Non-sinusoidal waveforms with high crest factors generate severe electromagnetic interference (EMI) that couples directly into the adjacent parallel RGB data lines, manifesting as horizontal crawling noise on the display. Furthermore, the high-voltage return lead (cold side) must be grounded directly at the inverter reference plane to eliminate ground loops.

3. Mechanical Mounting and Thermal Management

Mechanical stress on the metal bezel can distort the internal liquid crystal cell gap (typically 3 µm to 5 µm wide), causing optical birefringence anomalies known as “mura” or light leakage along the panel boundaries. Technicians should observe the following mechanical rules:

• Fasten all chassis mounting screws evenly using a calibrated torque screwdriver set to no more than 0.29 N·m (3.0 kgf·cm).
• Ensure the mounting frame is completely flat; a twisted chassis transfers mechanical torque into the glass substrate, increasing the risk of micro-fractures under vibration.
• Maintain a minimum clearance of 8.0 mm around the CCFL high-voltage wire to prevent corona discharge or dielectric breakdown to grounded chassis walls.

Engineering Selection Guidelines and Field Diagnostics

When troubleshooting legacy equipment or selecting a replacement panel for field maintenance, a structured diagnostic procedure prevents costly component damage and isolates whether a failure originates in the host graphic controller, power supply, CCFL inverter, or LCD panel itself.

Field Diagnostic and Troubleshooting Procedure

The diagnostic table below outlines typical failure modes encountered on industrial operator consoles equipped with the LTM08C015KA or LTM08C351S, along with verified corrective procedures.

Step-by-Step Benchtop Verification

To verify panel functionality on an engineering workbench before installing it inside a production machine, follow this sequential testing protocol:

1. Unpowered Impedance Check: Using a digital multimeter in resistance mode, measure the impedance between the V_DD pins and logic Ground (GND). A reading below 50 Ω indicates a shorted bypass capacitor or damaged timing controller IC on the panel interface PCB.
2. Logic Rail Power-Up: Connect a current-limited DC bench power supply (set to 3.3V or 5.0V depending on the exact panel revision, with current limit set to 500 mA). Verify that quiescent current draw settles between 120 mA and 280 mA under steady-state conditions.
3. Video Signal Injection: Connect a programmable video timing generator configured for SVGA (800 × 600) at 60 Hz vertical refresh rate (nominal horizontal frequency f_H ≈ 37.87 kHz, dot clock f_DOTCLK ≈ 40.0 MHz). Ensure the Data Enable (DE) or HSYNC/VSYNC timing polarities match the panel specification.
4. Inverter Rail Activation: Apply 12.0 V_DC to the backlight inverter. Verify uniform illumination across the entire active display area, checking specifically for dark corners or high-frequency acoustic humming from the inverter transformer.

By adhering to these rigorous verification and handling steps, engineers and technicians can ensure reliable integration, avoid premature hardware failures, and extend the operating life of mission-critical industrial automation systems utilizing the Toshiba LTM08C015KA and LTM08C351S display modules.
